Hot-selling and scarce TMS320TCI6608CYPA Multicore Fixed and Floating-Point Digital Signal Processor BGA spot stock

Product Descriptions

The TMS320TCI6608 DSP is a highest-performance fixed/floating-point DSP that is based on TI's KeyStone  multicore architecture. Incorporating the new and innovative C66x DSP core, this device can run at a core speed of  up to 1.25 GHz. For developers of a broad range of applications, such as mission critical, medical imaging, test and  automation, and other applications requiring high performance, TI's TMS320TCI6608 DSP offers 10 GHz  cumulative DSP and enables a platform that is power-efficient and easy to use. In addition, it is fully backward  compatible with all existing C6000 family of fixed and floating point DSPs.

KeyStone architecture provides a programmable platform integrating various subsystems (C66x cores, memory  subsystem, peripherals, and accelerators) and uses several innovative components and techniques to maximize  intra-device and inter-device communication that allows the various DSP resources to operate efficiently and  seamlessly. Central to this architecture are key components such as Multicore Navigator that allows for efficient data  management between the various device components. The TeraNet is a non-blocking switch fabric enabling fast and  contention-free internal data movement. The multicore shared memory controller allows access to shared and  external memory directly without drawing from switch fabric capacity. ​

Product Features

• Eight TMS320C66x™ DSP Core Subsystems (C66x CorePacs), Each with

– 1.0 GHz or 1.25 GHz C66x Fixed/Floating-Point CPU Core

› 40 GMAC/Core for Fixed Point @ 1.25 GHz

› 20 GFLOP/Core for Floating Point @ 1.25 GHz

– Memory

› 32K Byte L1P Per Core

› 32K Byte L1D Per Core

› 512K Byte Local L2 Per Core

• Multicore Shared Memory Controller (MSMC)

– 4096KB MSM SRAM Memory Shared by Eight DSP C66x CorePacs

– Memory Protection Unit for Both MSM SRAM and DDR3_EMIF

• Multicore Navigator

– 8192 Multipurpose Hardware Queues with Queue Manager

– Packet-Based DMA for Zero-Overhead Transfers

• Network Coprocessor

– Packet Accelerator Enables Support for

› Transport Plane IPsec, GTP-U, SCTP, PDCP

› L2 User Plane PDCP (RoHC, Air Ciphering)

› 1 Gbps Wire-Speed Throughput at 1.5 MPackets Per Second

– Security Accelerator Engine Enables Support for

› IPSec, SRTP, 3GPP, WiMAX Air Interface, and SSL/TLS Security

› ECB, CBC, CTR, F8, A5/3, CCM, GCM, HMAC,CMAC, GMAC, AES, DES, 3DES, Kasumi, SNOW 3G, SHA-1, SHA-2 (256-bit Hash), MD5

› Up to 2.8 Gbps Encryption Speed

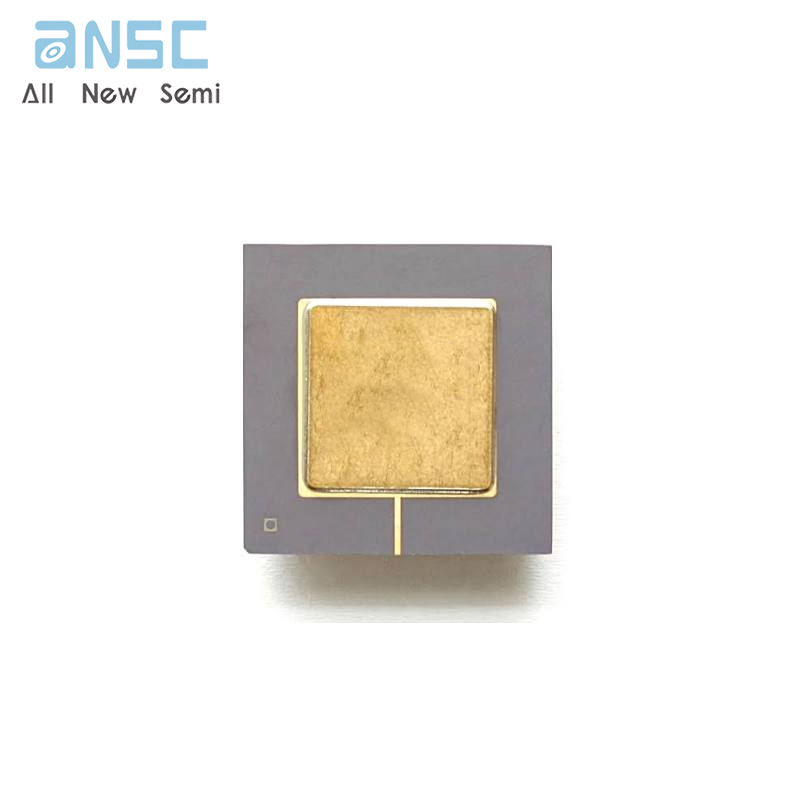

Product Photos

For more product information, please download the PDF
