Hot-selling and scarce HFC0300HS-LF-Z Variable Off Time Controller SOIC-8

Product Descriptions

HFC0300 is a variable off-time controller that uses a fixed-peak–current technique to decrease its frequency as the load lightens. As a result, it offers excellent efficiency at light-load while optimizing the efficiency under other load conditions.

When the frequency decreases to threshold, the peak current decreases with the decreasing load to prevent mechanical resonance in the transformer. The controller enters burst mode when the output power falls below a given level.

The HFC0300 features various protections such as thermal shutdown, VCC under-voltage lockout, overload protection, short-circuit protection, and over-voltage protection.

The HFC0300 is available in SOIC-7 package.

Product Features

 Variable Off-Time, Current Mode Control

 Universal Main Supply Operation (85VAC to 265VAC)

 Frequency Foldback as Load Lightens

 Peak-Current Compression to Reduce Transformer Noise

 Active-Burst Mode for Low Standby Power

Consumption

 Internal High-Voltage Current Source

 Internal 200ns Leading Edge Blanking

 Thermal Shutdown (Auto Restart with Hysteresis)

 VCC Under-Voltage Lockout with Hysteresis

 Over-Voltage Protection on VCC Pin

 Timer-Based Overload Protection

 Short-Circuit Protection

 Natural Spectrum Shaping for Improved EMI Performance

Product Applications

 Battery Charger for Portable Electronics

 Standby Power Supply

 Switched-Mode Power Supplies

Product Specification

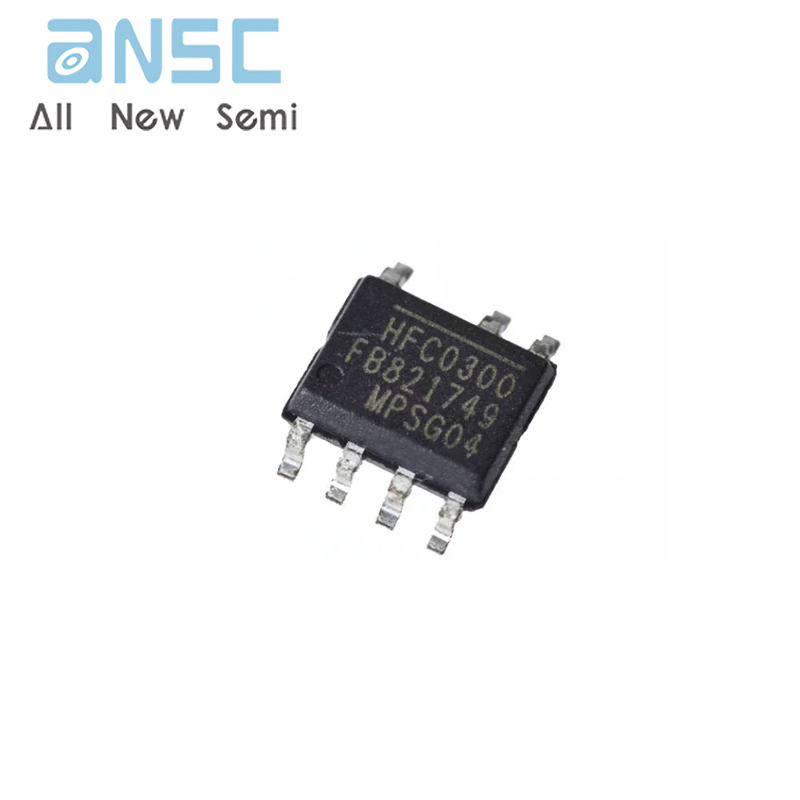

Product Photos

For more product information, please download the PDF
