Hot-selling and scarce MM74HC04M Hex Inverter SOP14 spot stock

Product Descriptions

The MM74HC04 inverters utilize advanced silicon−gate CMOS technology to achieve operating speeds similar to LS−TTL gates with the low power consumption of standard CMOS integrated circuits.

The MM74HC04 is a triple buffered inverter. It has high noise immunity and the ability to drive 10 LS−TTL loads. The 74HC logic family is functionally as well as pin−out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Product Features

• Typical Propagation Delay: 8 ns

• Fan Out of 10 LS−TTL Loads

• Quiescent Power Consumption: 10  W Maximum at Room Temperature

• Low Input Current: 1  A Maximum

• These Devices are Pb−Free, Halide Free and are RoHS Compliant

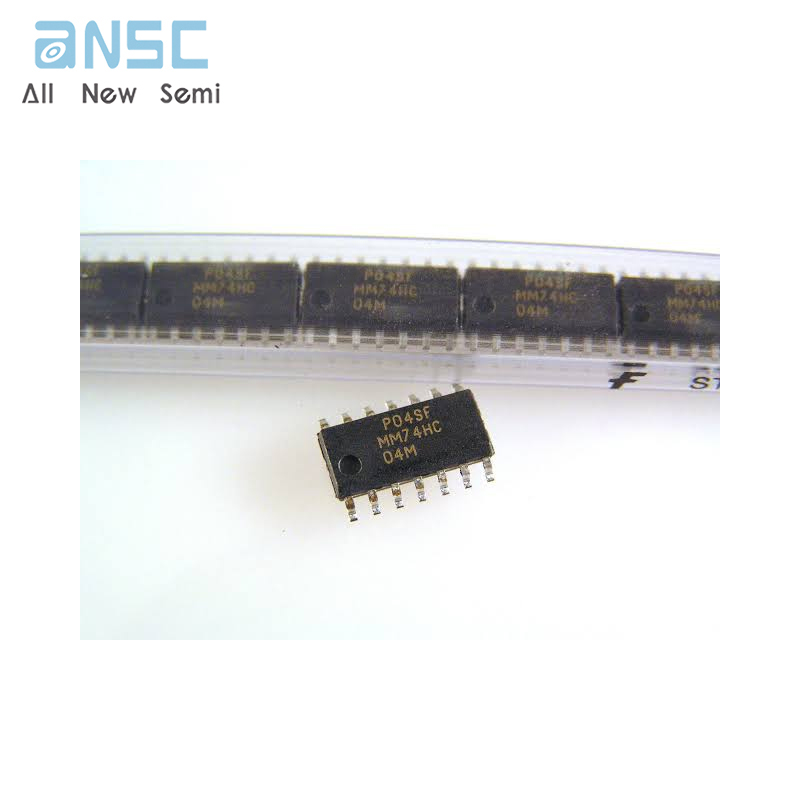

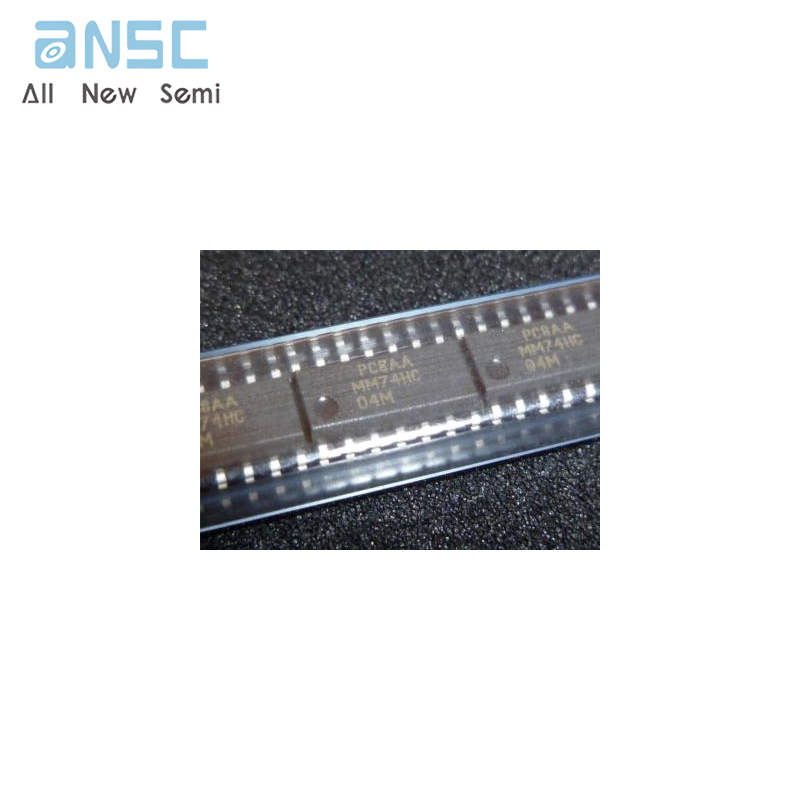

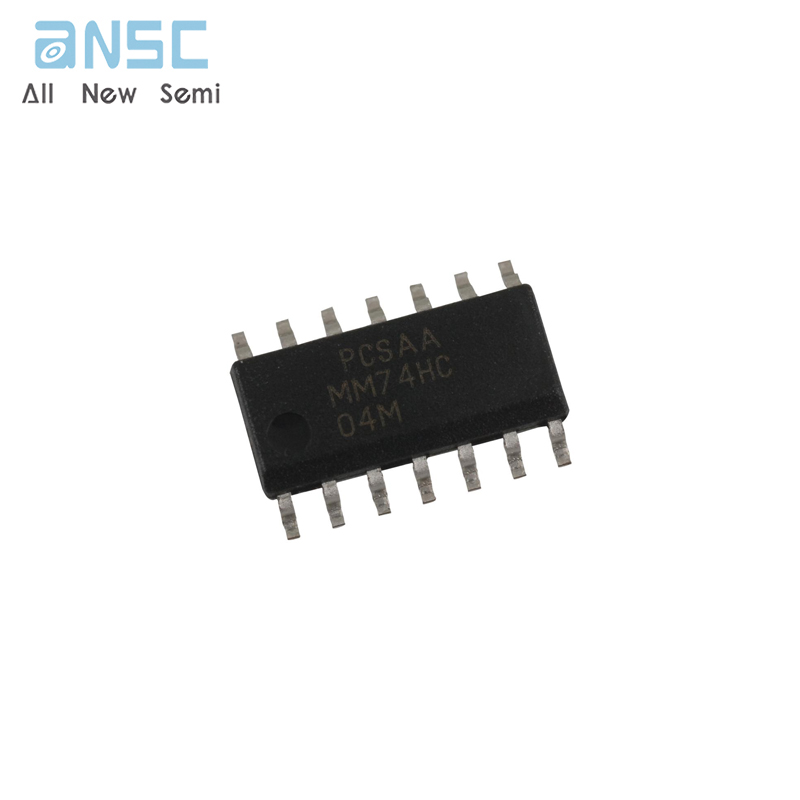

Product Photos

For more product information, please download the PDF
