Hot-selling and scarce ADAV400KSTZ Audio Codec with Embedded SigmaDSP Processor QFP80 spot stock

Product Descriptions

The ADAV400 is an enhanced audio processor. Integrating highperformance analog and digital I/Os with a powerful, audiospecific, programmable core enables designers to differentiatetheir products through audio performance .

The audio processing core is based on Analog Devices SigmaDSPtechnology featuring full 28-bit processing (56-bit in doubleprecision mode), a sophisticated, fully programmable dynamicsprocessor, and delay memory.

This technology allows the system designer to compensate forreal world limitations of speakers, amplifiers, and listeningenvironments . This compensation results in a dramaticimprovement of the perceived audio quality through speakerequalization, multiband compression and limiting, and thirdparty-branded algorithms .

The analog I/O integrates Analog Devices proprietary continuoustime, multibit, sigma-delta (Σ-Δ) architecture . This integration​ brings a higher level of performance to systems that arerequired to meet system branding certification by third-partyalgorithm providers . The analog inputs feature a 95 dB dynamicrange stereo ADC fed from a four-stereo input mux . The fourstereo analog outputs are each driven by a 95 dB dynamic rangeDAC . A dedicated headphone channel is included withintegrated amplifiers .

Product Features

Fully programmable audio digital signal processing (DSP) for

enhanced sound processing

Scalable digital audio delay line

Pool of 400 ms @ 48 kHz (200 ms for stereo channel)

High performance, integrated analog-to-digital converters

(ADCs) and digital-to-analog converters (DACs)

1 stereo analog input (ADC)

4 stereo analog inputs with mux-to-stereo ADC

4 stereo (8-channel) analog outputs (DACs)

Dedicated headphone output with integrated amplifier

Multichannel digital I/O

8-channel I2S input and output modes

8- and 16-channel TDM input and output modes

2-channel (1 stereo) asynchronous I2S input with

integrated sample rate converter (SRC), supporting

sample rates from 5 kHz to 50 kHz

Features SigmaStudio™, a proprietary graphical

programming tool for fast development of custom

signal flows

Includes various third-party audio algorithms

I2C® control interface

Operates from 3.3 V (analog), 1.8 V (digital core),

3.3 V (digital interface)

Features on-chip regulator for single 3.3 V operation

80-lead LQFP package (14 mm × 14 mm)

Temperature range: 0°C to 70°C

Product Applications

ATV and AV audio applications

TV audio processing

Set top box (STB)

HTiB

General audio enhancement

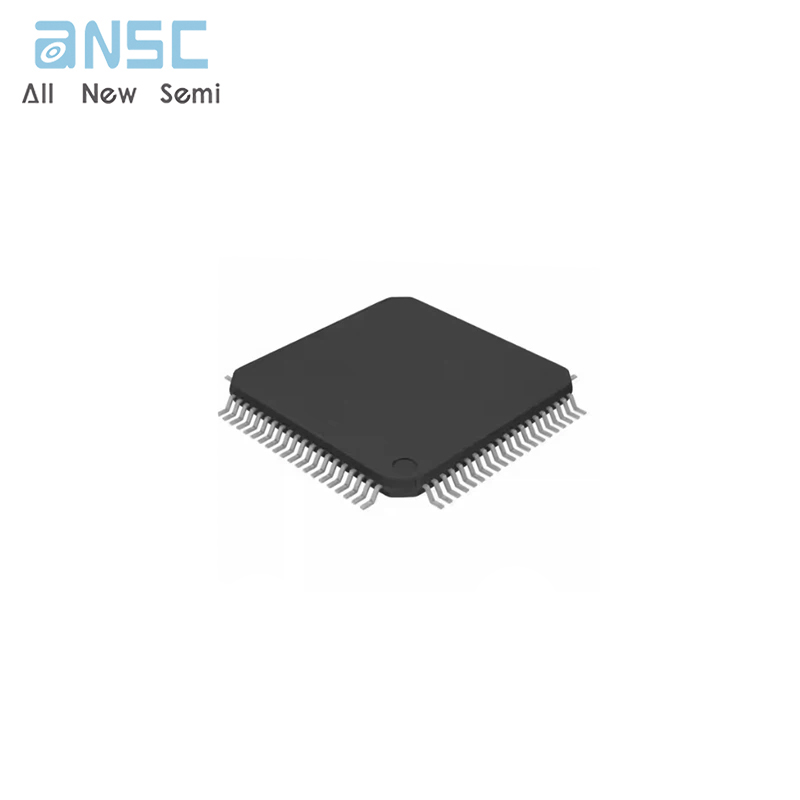

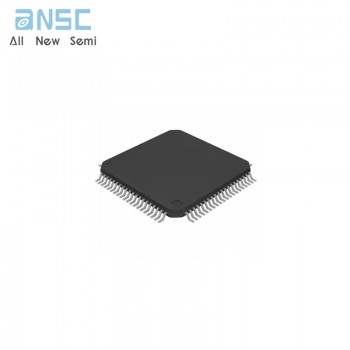

Product Photos
