Hot-selling and scarce AD5629RARUZ-1 12 Bit Digital to Analog Converter 8 16-TSSOP TSSOP16 spot stock
Manufacturer Product Number
AD5629RARUZ-1
Description
AD5629RARUZ-1 12 Bit Digital to Analog Converter 8 16-TSSOP TSSOP16 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AD5629R/AD5669R devices are low power, octal, 12-/16 -bit, buffered voltage-output DACs. All devices are guaranteed monotonic by design.
The AD5629R/AD5669R have an on-chip reference with an internal gain of 2. The AD5629R-1/AD5669R-1 have a 1.25 V,5 ppm/°C reference, giving a full-scale output range of 2.5 V. The AD5629R-2/AD5629R-3 and the AD5669R-2/AD5669R-3 have a 2.5 V 5 ppm/°C reference, giving a full-scale output range of 5 V depending on the option selected. Devices with 1.25 V reference selected operate from a single 2.7 V to 5.5 V supply. Devices with 2.5 V reference selected operate from 4.5 V to 5.5 V. The on-chip reference is offat power-up, allowing the use of an external reference. The internal reference is enabled via a software write.
Product Features
Low power octal DACs
AD5629R: 12 bits
AD5669R: 16 bits
2.6 mm × 2.6 mm 16-ball WLCSP
4 mm × 4 mm 16-lead LFCSP and 16-lead TSSOP
On-chip 1.25 V/2.5 V, 5 ppm/°C reference
Power down to 400 nA at 5 V, 200 nA at 3 V
2.7 V to 5.5 V power supply
Guaranteed monotonic by design
Power-on reset to zero scale or midscale
3 power-down functions
Hardware LDAC andCLR functions
I2C-compatible serial interface supports standard (100 kHz)
and fast (400 kHz) modes
Product Applications
Process control
Data acquisition systems
Portable battery-powered instruments
Digital gain and offset adjustment
Programmable voltage and current sources
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AD5629RARUZ-1 |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Manufacturer | - |
| Series | denseDAC |
| Packaging | Tube |
| Part Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 8 |
| Settling Time | 7µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | I2C |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| INL/DNL (LSB) | ±0.5, ±0.25 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | AD5629 |

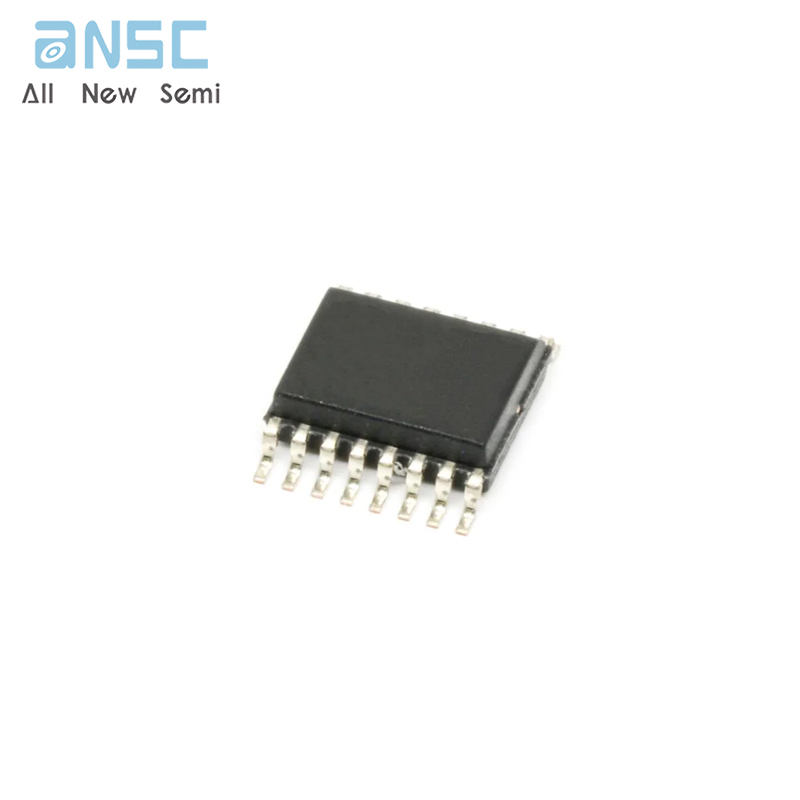

Product Photos
For more product information, please download the PDF
