Hot-selling and scarce HD74HC373P Octal D-type Transparent Latches DIP spot stock

Product Descriptions

When the latch enable input is high, the Q outputs of HD74HC373 will follow the D inputs and the Q outputs of HD74HC533 will follow the inversion of the D inputs.  When the latch enable goes low, data at the D inputs will be retained at the outputs until latch enable returns high again.  When a high logic level is applied to the output control input, all outputs go to a high impedance state, regardless of what signals are present at the other inputs and the state of the storage elements.

Product Features

•    High Speed Operation:  tpd (D to Q) = 16 ns typ (CL = 50 pF)

•    High Output Current:  Fanout of 15 LSTTL Loads

•    Wide Operating Voltage:  VCC = 2 to 6 V

•    Low Input Current:  1 µA max

•    Low Quiescent Supply Current:  ICC (static) = 4 µA max (Ta = 25°C)

•    Ordering Information

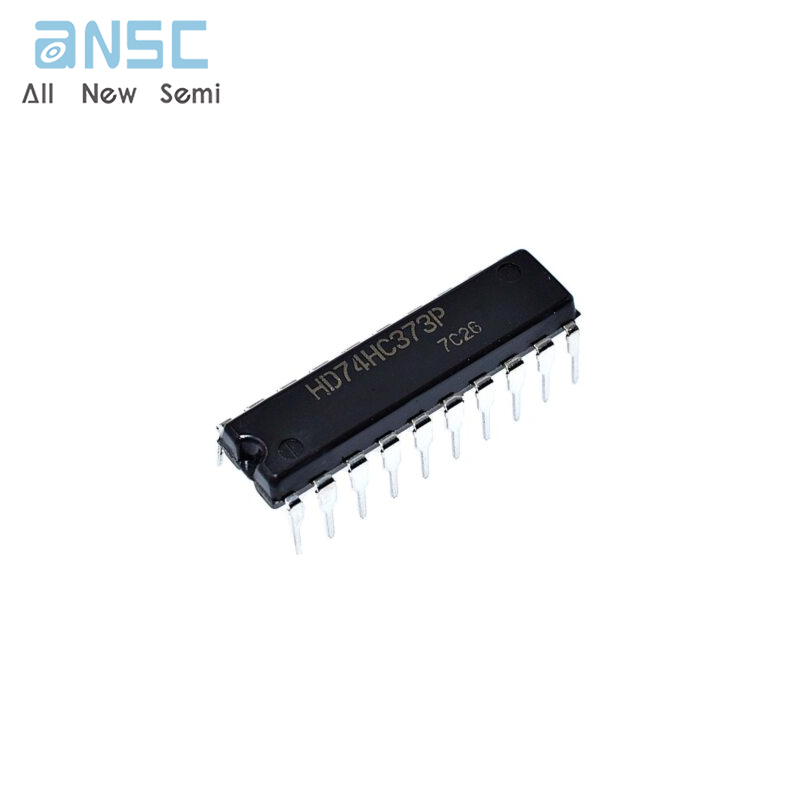

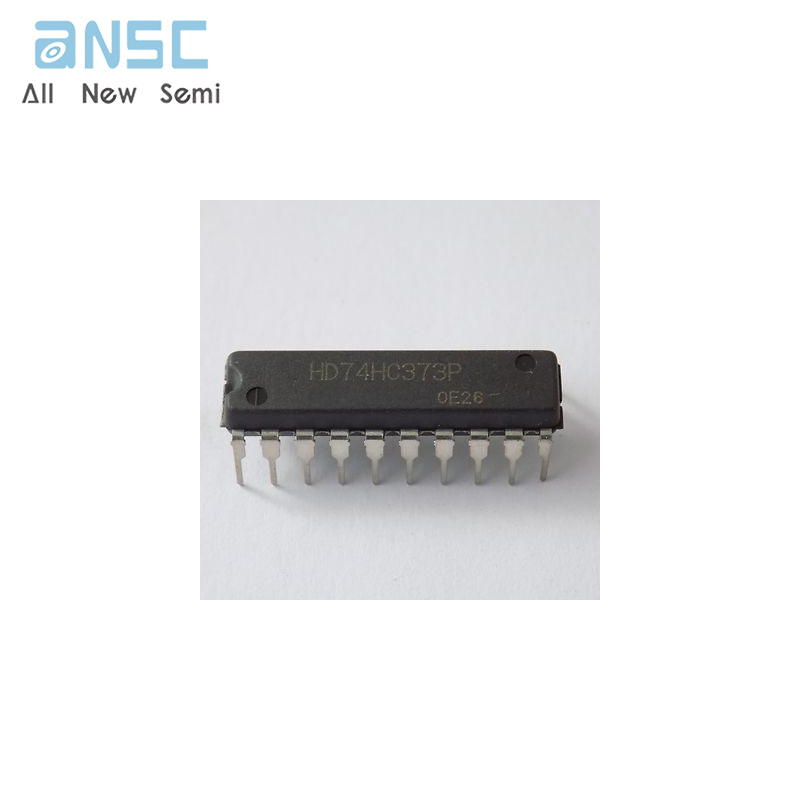

Product Photos

For more product information, please download the PDF
