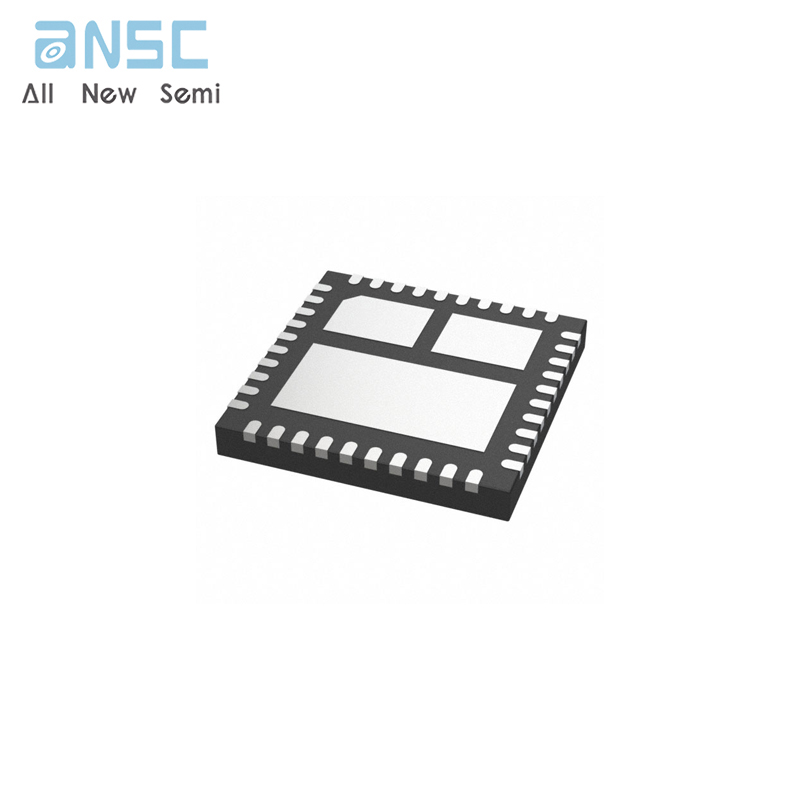

Hot-selling and scarce AOZ5166QI-01 High-Current, High-Performance DrMOS Power Module DFN spot stock

Product Descriptions

The AOZ5166QI-01  is  a  high  efficiency  synchronousbuck power stage module consisting of two asymmetricalMOSFETs and an integrated driver. The MOSFETs areindividually optimized for operation in the synchronousbuck  configuration . The  High-Side  (HS)  MOSFET  haslow capacitance and gate charge for fast switching withlow duty cycle operation . The Low-Side (LS) MOSFEThas ultra low R_DS(ON) to minimize conduction losses .

The AOZ5166QI-01 is intended for use with 3V (CMOS)and Tri-state input compatibility by using both the PWMand  DISB#  inputs  for  accurate  control  of  the  powerMOSFET’s switching activities .

A   number   of   features   are   provided   making   theAOZ5166QI-01  a  highly  versatile  power  module .  Theboot  supply  diode  is  integrated  in  the  driver. The  LSMOSFET can be driven into diode emulation  mode toprovide  asynchronous  operation  when  required .  Thepinout  is  optimized  for  low  parasitics,  keeping  theireffects to the minimum .

Product Features

Fully complies with Intel DrMOS Rev 4.0 specifications

4.5V to 18V input voltage range

4.5V to 5.5V driver supply range

Up to 60A output current

Up to 1MHz PWM operation

3V PWM / Tri-state input compatible

Under-voltage lockout protection

Single pin control for diode

Emulation / CCM operation

6mm x 6mm QFN-40L package

Product Applications

Servers

VRMs for Motherboards

Point-of-Load DC/DC Converters

Memory and Graphic Cards

Video Gaming Consoles

​

Product Specification

Product Photos

For more product information, please download the PDF
