Hot-selling and scarce TS391ILT Low Power Single Voltage Comparator SOT23-5 spot stock
Manufacturer Product Number
TS391ILT
Description
TS391ILT Low Power Single Voltage Comparator SOT23-5 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These devices consist of a low power voltage comparator designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible.
This comparator also has a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage.
Product Features
■ Wide single supply voltage range or dual supplies +2V to +34V or ±1V to ±17V
■ Very low supply current (0.2mA) independent of supply voltage (1mW/comparator at +5V)
■ Low input bias current: 25nA typ.
■ Low input offset current: ±5nA typ.
■ Low input offset voltage: ±1mV typ.
■ Input common-mode voltage range includes ground
■ Low output saturation voltage: 250mV typ.(Io=4mA)
■ Differential input voltage range equal to the supply voltage
■ TTL, DTL, ECL, CMOS compatible outputs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TS391ILT |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 1 |
| Output Type | CMOS, DTL, ECL, Open-Collector, TTL |
| Voltage - Supply, Single/Dual(±) | 2V ~ 36V, ±1V ~ 18V |
| Voltage - Input Offset (Max) | 5mV @ 5V |
| Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 16mA @ 5V |
| Current - Quiescent (Max) | 1.25mA |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TS391 |

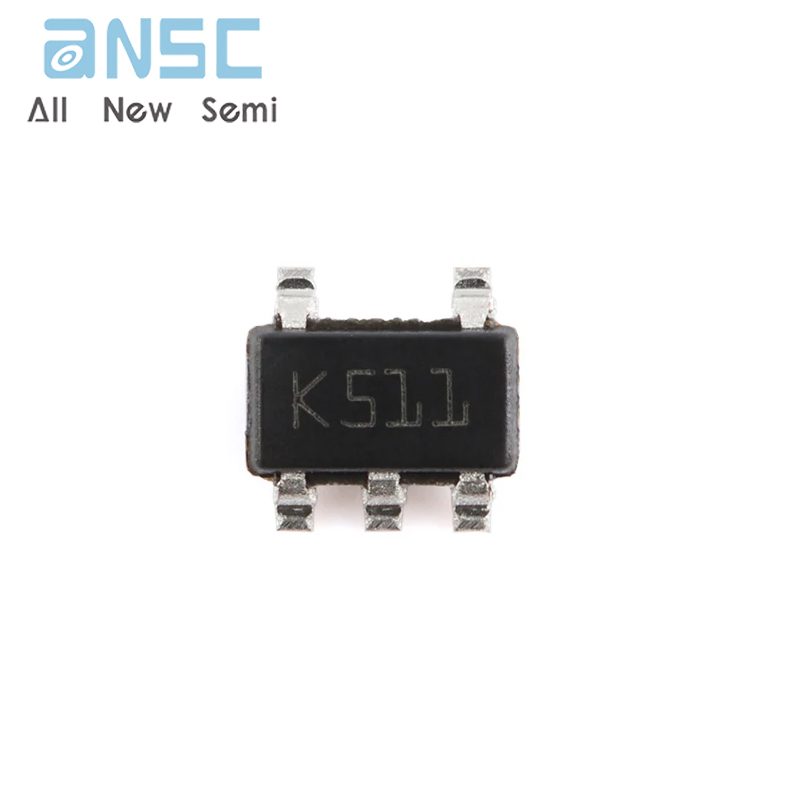

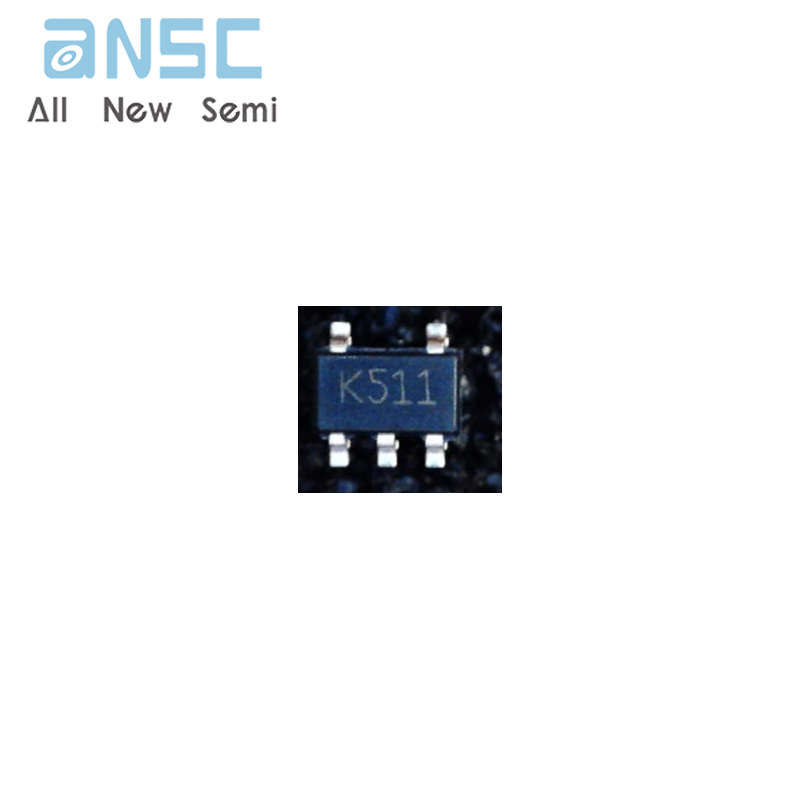

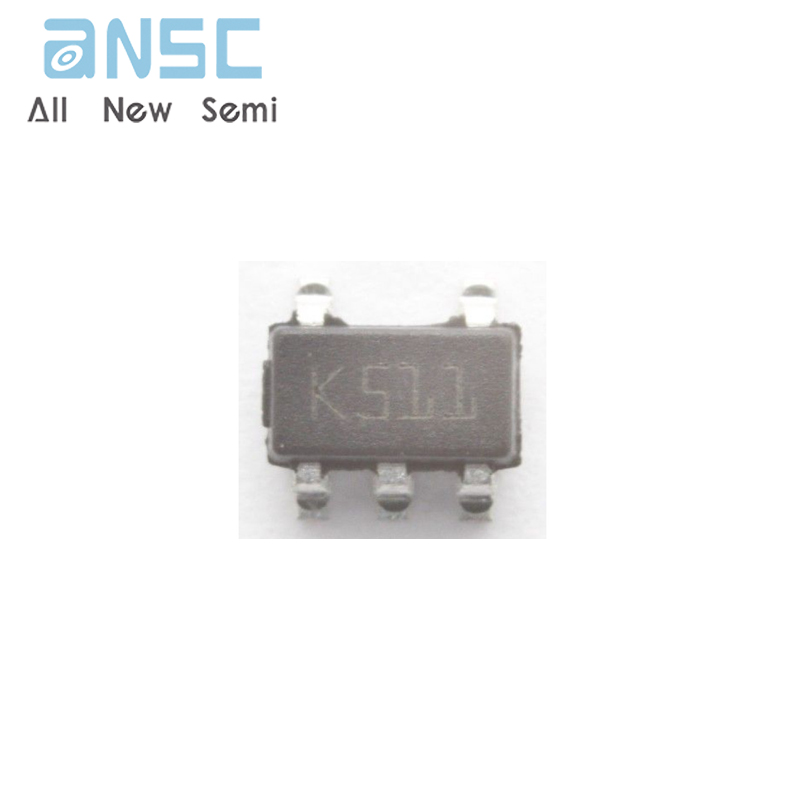

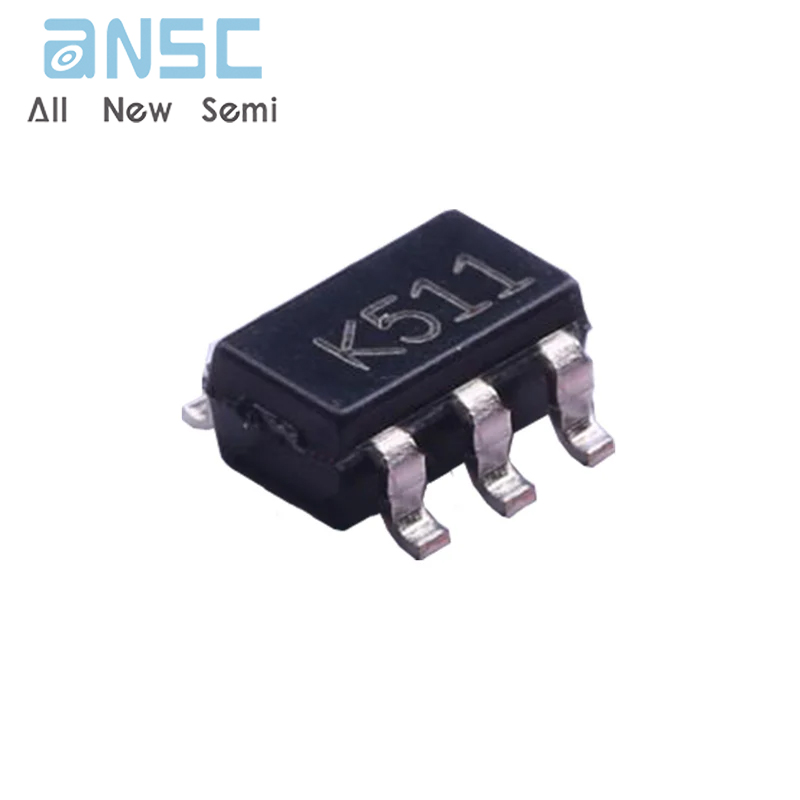

Product Photos
、
For more product information, please download the PDF
