Hot-selling and scarce SN75DP139RGZR DisplayPort to TMDS Level-Shifting Re-Driver QFN spot stock

Product Descriptions

The SN75DP139 is a dual-mode DisplayPort input to Transition-Minimized Differential   Signaling (TMDS) output. The TMDS output has a built-in level-shifting re-driver supporting Digital  Video Interface (DVI) 1.0 and High Definition Multimedia Interface (HDMI) 1.4b standards.  The SN75DP139 is specified up to a maximum data  rate of   3.4  Gbps,   supporting resolutions greater then 1920 × 1200 or HDTV 12-bit color  depth at   1080p (progressive scan) .   The SN75DP139 is compliant   with the HDMI   1.4b specifications  and  supports  optional      protocol enhancements such as 3D graphics at  resolutions demanding a pixel rate up to 340 MHz.

Product Features

•   DisplayPort Physical Layer Input Port to TMDS Physical Layer Output Port

•   Integrated TMDS Level-Shifting Re-driver With Receiver Equalization

•   Supports Data Rates up to 3.4 Gbps

•   Achieves HDMI 1.4b Compliance

•   3D HDMI Support With TMDS Clock Rates up to 340 MHz

•   4k × 2k Operation (30 Hz, 24bpp)

•   Deep Color Supporting 36bpp

•   Integrated I2C Logic Block for DVI/HDMI Connector Recognition

•   Integrated Active I2C Buffer

•   Enhanced ESD: 10 kV on All Pins

•   Enhanced Commercial Temperature Range: 0°C to 85°C

•   48-Pin 7-mm × 7-mm VQFN (RGZ) Package

•   40-Pin 5-mm × 5-mm WQFN (RSB) Package

Product Applications

•   Personal Computer Market

– DP/TMDS Dongle

– Desktop PC

– Notebook PC

– Docking Station

– Stand-Alone Video Card

Product Specification

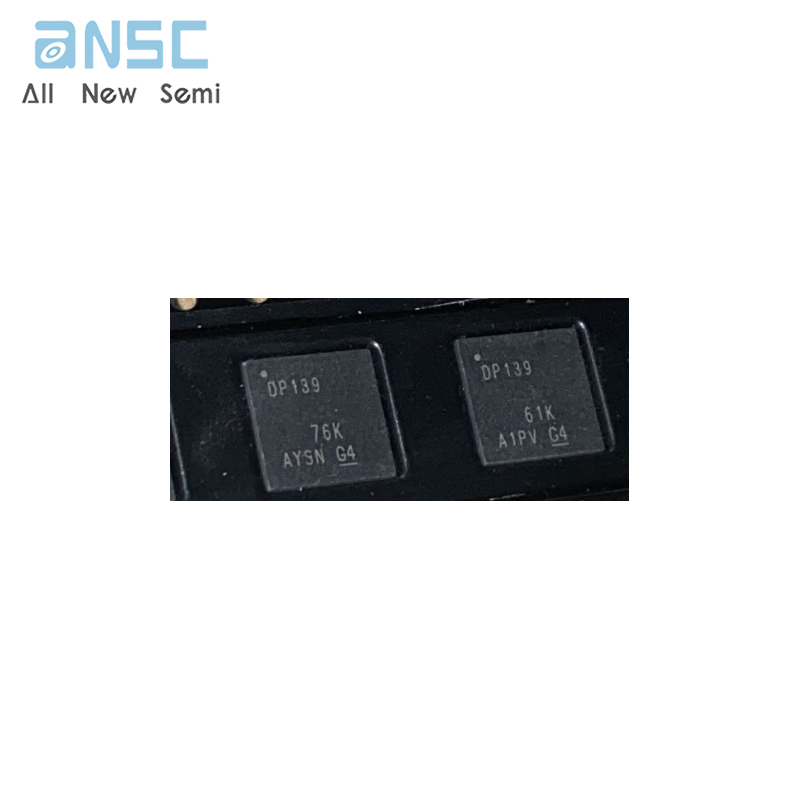

Product Photos

For more product information, please download the PDF
