Hot-selling and scarce HFA3101BZ RF Mixer IC 0Hz ~ 10GHz 8-SOIC spot stock

Product Descriptions

The HFA3101 is an all NPN transistor array configured as aMultiplier Cell . Based on Intersil’s bonded wafer UHF-1 SOIprocess, this array achieves very high fT(10GHz)whilemaintaining excellent h_FE and V BE matching characteristicsthat have been maximized through careful attention to circuitdesign and layout, making this product ideal forcommunication circuits . For use in mixer applications, thecell provides high gain and good cancellation of 2nd orderdistortion terms .

Product Features

•  Pb-free Available as an Option

•  High Gain Bandwidth Product (fT) . . . . . . . . . . . . . 10GHz

•  High Power Gain Bandwidth Product . . . . . . . . . . . . 5GHz

•  Current Gain (hFE). . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

•  Low Noise Figure (Transistor) . . . . . . . . . . . . . . . . . 3.5dB

•  Excellent h FE and V BE Matching

•  Low Collector Leakage Current . . . . . . . . . . . . . . <0.01nA

•  Pin to Pin Compatible to UPA101

Product Applications

•  Balanced Mixers

•  Multipliers

•  Demodulators/Modulators

•  Automatic Gain Control Circuits

•  Phase Detectors

•  Fiber Optic Signal Processing

•  Wireless Communication Systems

•  Wide Band Amplification Stages

•  Radio and Satellite Communications

•  High Performance Instrumentation

Product Specification

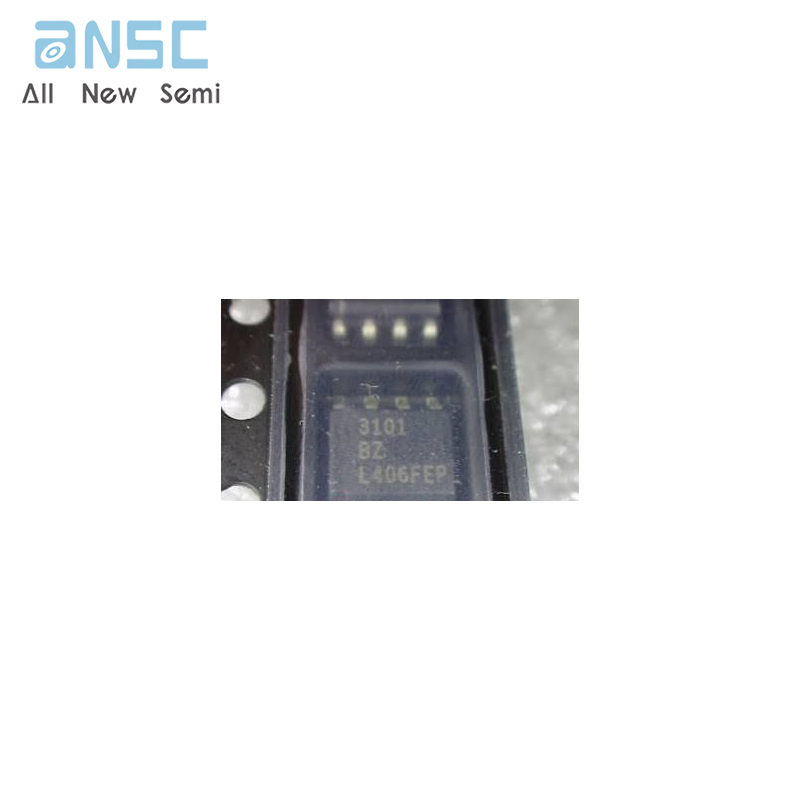

Product Photos

For more product information, please download the PDF
