Hot-selling and scarce SN74HC652DWR OCTAL BUS TRANSCEIVERS AND REGISTERS WITH 3-STATE OUTPUTS SPO24 spot stock
Manufacturer Product Number
SN74HC652DWR
Description
SN74HC652DWR OCTAL BUS TRANSCEIVERS AND REGISTERS WITH 3-STATE OUTPUTS SPO24 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ’HC652 devices consist of bus-transceiver circuits, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the data bus or from the internal storage registers. Output-enable (OEAB and OEBA) inputs are provided to control the transceiver functions. Select-control (SAB and SBA) inputs are provided to select real-time or stored-data transfer. A low input level selects real-time data, and a high input level selects stored data. Figure 1 illustrates the four fundamental bus-management functions that can be performed with these devices.
Product Features
-
Wide Operating Voltage Range of 2 V to 6 V
-
High-Current 3-State Outputs Can Drive Up To 15 LSTTL Loads
-
Low Power Consumption, 80-µA Max ICC
-
Typical tpd = 11 ns
-
±6-mA Output Drive at 5 V
-
Low Input Current of 1 µA Max
-
Independent Registers and Enables for A and B Buses
-
Multiplexed Real-Time and Stored Data
-
True Data Paths
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74HC652DWR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Series | 74HC |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Output Type | 3-State |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Voltage - Supply | 2V ~ 6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| Base Product Number | 74HC652 |

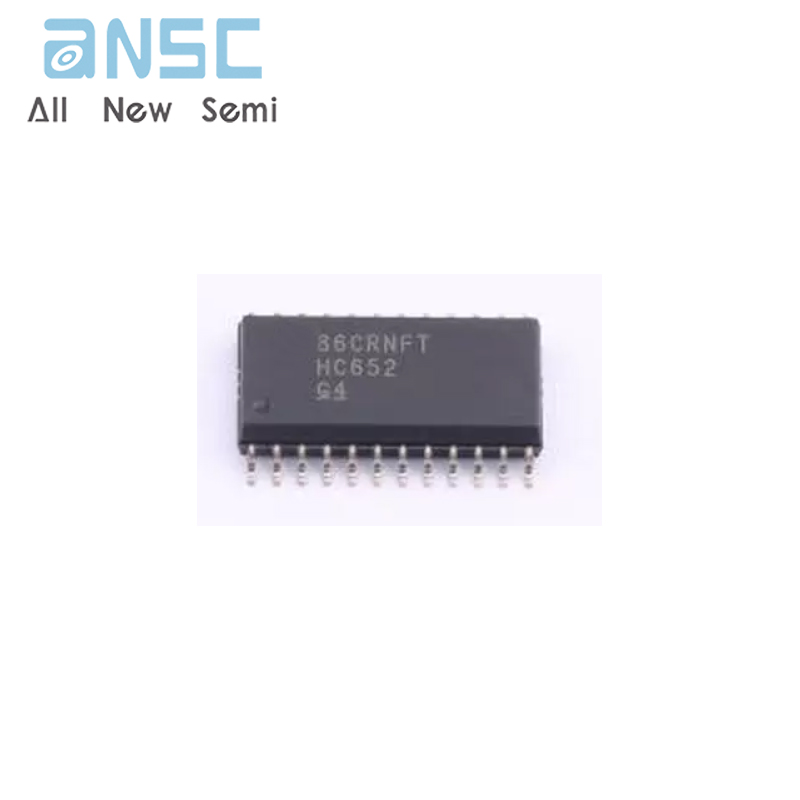

Product Photos
