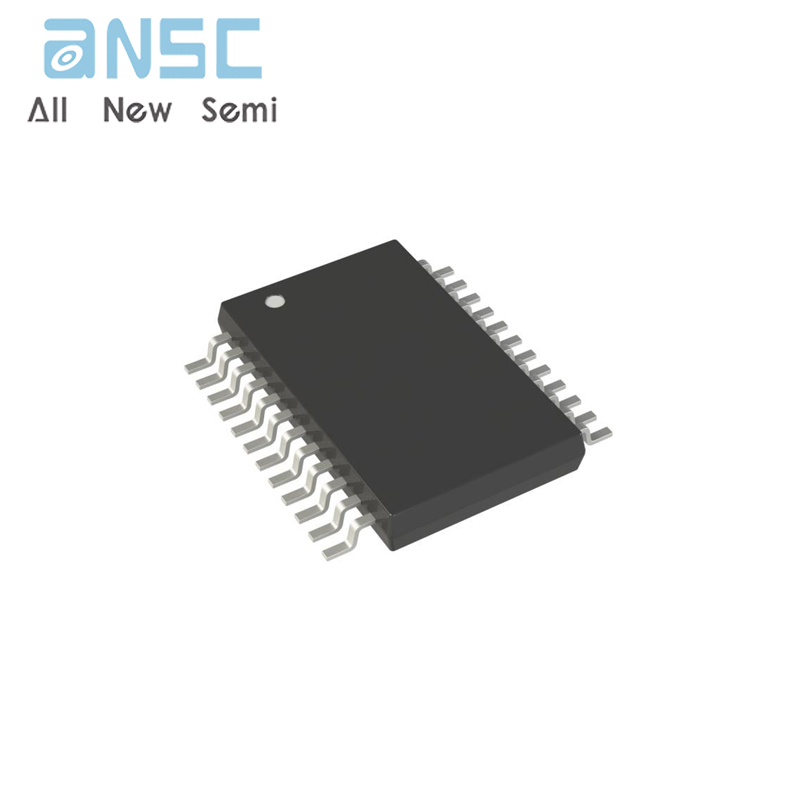

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce MAX120CAG+ 500ksps, 12-Bit ADCs with Track/Hold and Reference 24-SSOP spot stock
Manufacturer Product Number
MAX120CAG+
Description
MAX120CAG+ 500ksps, 12-Bit ADCs with Track/Hold and Reference 24-SSOP spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MAX120/MAX122 complete, BiCMOS, sampling 12-bit analog-to-digital converters (ADCs) combine an on-chip track/hold (T/H) and a low-drift voltage reference with fast conversion speeds and low-power consumption. The T/H’s 350ns acquisition time combined with the MAX120’s 1.6µs conversion time results in throughput rates as high as 500k samples per second (ksps). Throughput rates of 333ksps are possible with the 2.6µs conversion time of the MAX122.
The MAX120/MAX122 accept analog input voltages from -5V to +5V. The only external components needed are decoupling capacitors for the power-supply and reference voltages. The MAX120 operates with clocks in the 0.1MHz to 8MHz frequency range. The MAX122 accepts 0.1MHz to 5MHz clock frequencies.
The MAX120/MAX122 employ a standard microprocessor (µP) interface. Three-state data outputs are configured to operate with 12-bit data buses. Data-access and busrelease timing specifications are compatible with most popular µPs without resorting to wait states. In addition, the MAX120/MAX122 can interface directly to a first-in, first-out (FIFO) buffer, virtually eliminating µP interrupt overhead. All logic inputs and outputs are TTL/CMOS compatible. For applications requiring a serial interface, refer to the MAX121.
Product Features
● 12-Bit Resolution
● No Missing Codes Over Temperature
● 20ppm/°C -5V Internal Reference
● 1.6µs Conversion Time/500ksps Throughput (MAX120)
● 2.6µs Conversion Time/333ksps Throughput (MAX122)
● Low Noise and Distortion:
• 70dB (min) SINAD
• -77dB (max) THD (MAX122)
● Low Power Dissipation: 210mW
● Separate Track/Hold Control Input
● Continuous-Conversion Mode Available
● ±5V Input Range, Overvoltage Tolerant to ±15V
● 24-Pin Narrow DIP, Wide SO, and SSOP Packages
Product Applications
● Digital-Signal Processing
● Audio and Telecom Processing
● Speech Recognition and Synthesis
● High-Speed Data Acquisition
● Spectrum Analysis
● Data Logging Systems
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MAX120CAG+ |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V, -10.8V ~ 15.75V |
| Voltage - Supply, Digital | 5V |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 24-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 24-SSOP |
| Mounting Type | Surface Mount |
| Base Product Number | MAX120 |
