Spot sales of XC3030-100PC84C Field Programmable Gate Array IC 74 22176 84-LCC (J-Lead)

Product Descriptions

XC3000 is the original family of devices in the XC3000 class of Field Programmable Gate Array (FPGA) architectures. The XC3000 family has a proven track record in addressing a wide range of design applications, including general logic replacement and sub-systems integration. For a thorough description of the XC3000 architecture see the preceding pages of this data book.

The XC3000 Family covers a range of nominal device densities from 2,000 to 9,000 gates, practically achievable densities from 1,000 to 6,000 gates. Device speeds, described in terms of maximum guaranteed toggle frequencies, range from 70 to 125 MHz. The performance of a completed design depends upon placement and routing implementation, so, like with any gate array, the final verification of device utilization and performance can only be known after the design has been placed and routed.

Product Features

• Industry-leading FPGA family with five device types – Logic densities from 1,000 to 6,000 gates – Up to 144 user-definable I/Os

• Guaranteed 70- to 125-MHz toggle rates, 9 to 5.5 ns logic delays

• Advanced CMOS static memory technology – Low quiescent and active power consumption

• XC3000-specific features

– Ultra-low current option in Power-Down mode

– 4-mA output sink and source current

– Broad range of package options includes plastic and ceramic quad flat packs, plastic leaded chip carriers and pin grid arrays

– 100% bitstream compatible with the XC3100 family

– Commercial, industrial, military, “high rel”, and MILSTD-883 Class B grade devices

– Easy migration to XC3300 series of HardWire maskprogrammed devices for high-volume production

Product Specifications

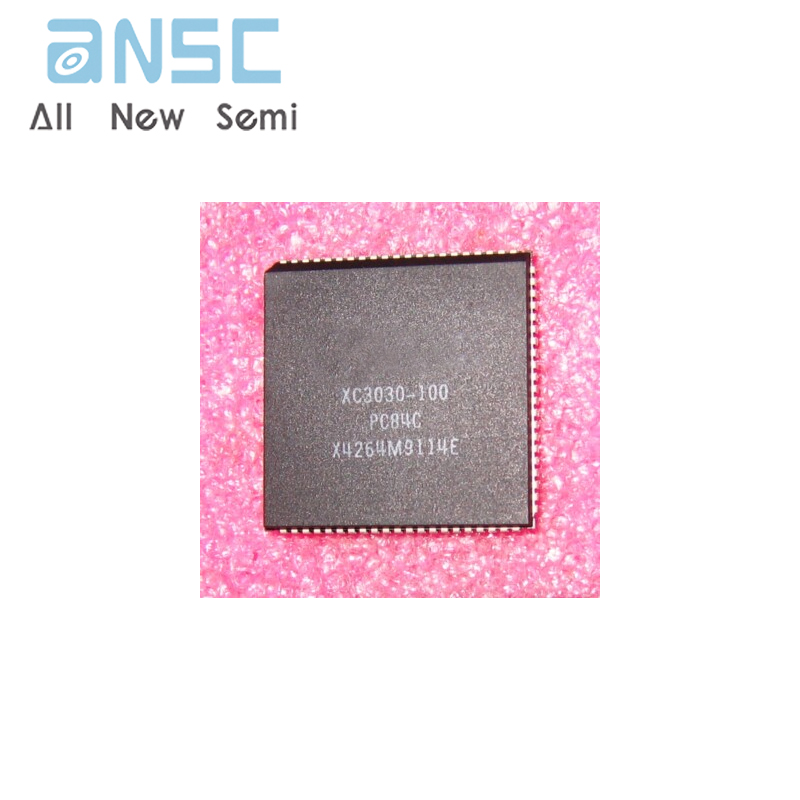

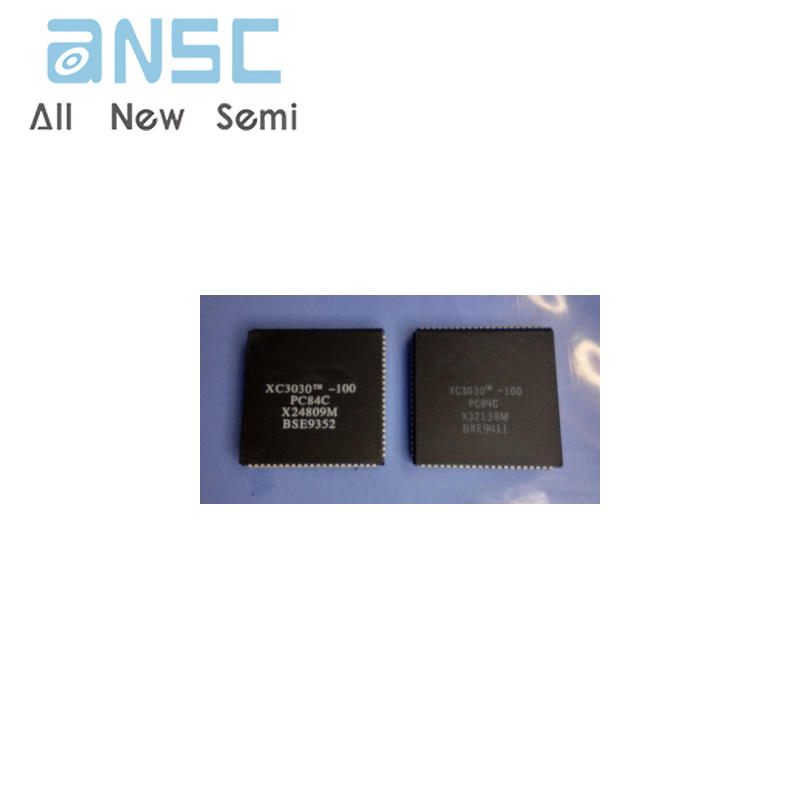

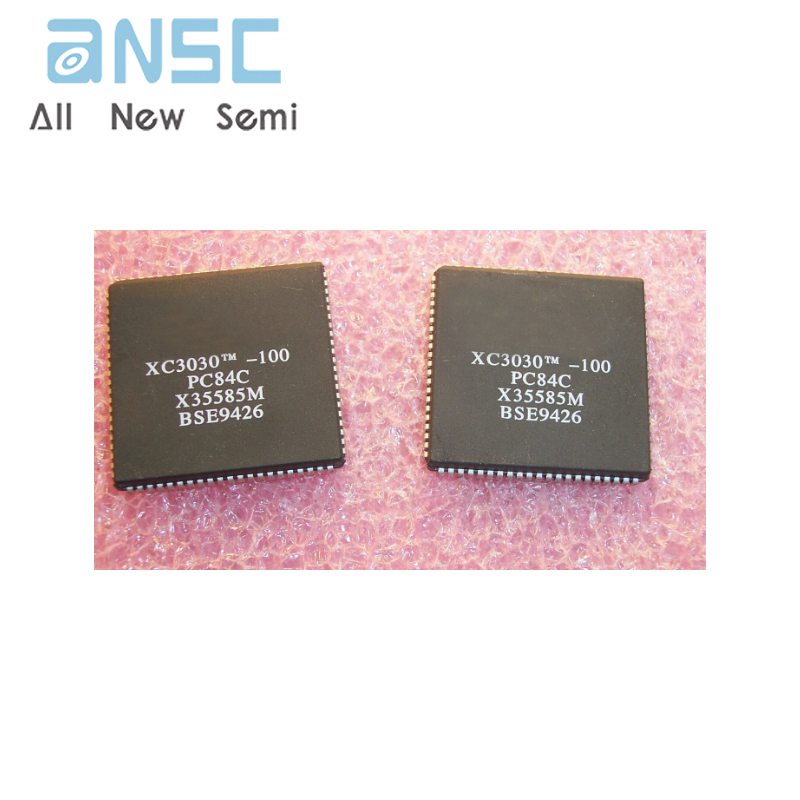

Product photos

For more product information, please download the PDF
