Spot sales of MC14077BCP CMOS SSI Quad Exclusive OR and NOR Gates DIP-14
Manufacturer Product Number
MC14077BCP
Description
MC14077BCP CMOS SSI Quad Exclusive OR and NOR Gates DIP-14
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MC14070B quad exclusive OR gate and the MC14077B quad exclusive NOR gate are constructed with MOS P−channel and N−channel enhancement mode devices in a single monolithic structure. These complementary MOS logic gates find primary use where low power dissipation and/or high noise immunity is desired.
Product Features
• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• All Outputs Buffered
• Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load Over the Rated Temperature Range
• Double Diode Protection on All Inputs
• MC14070B − Replacement for CD4030B and CD4070B Types
• MC14077B − Replacement for CD4077B Type
• Pb−Free Packages are Available
Product specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MC14077BCP |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 4000B |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | XNOR (Exclusive NOR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8.8mA, 8.8mA |
| Input Logic Level - Low | 1.5V ~ 4V |
| Input Logic Level - High | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 110ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | MC14077 |

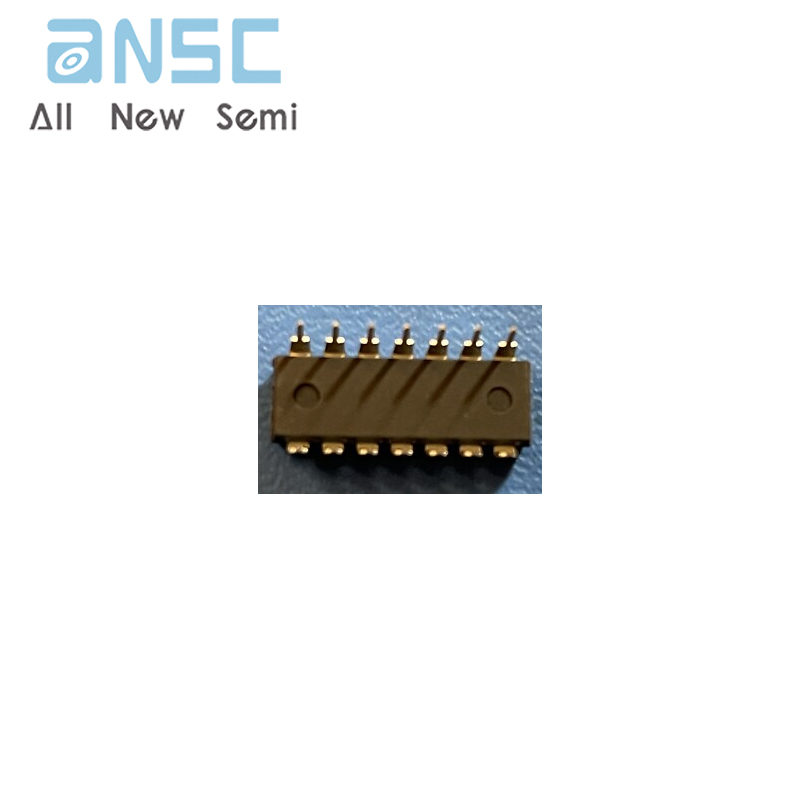

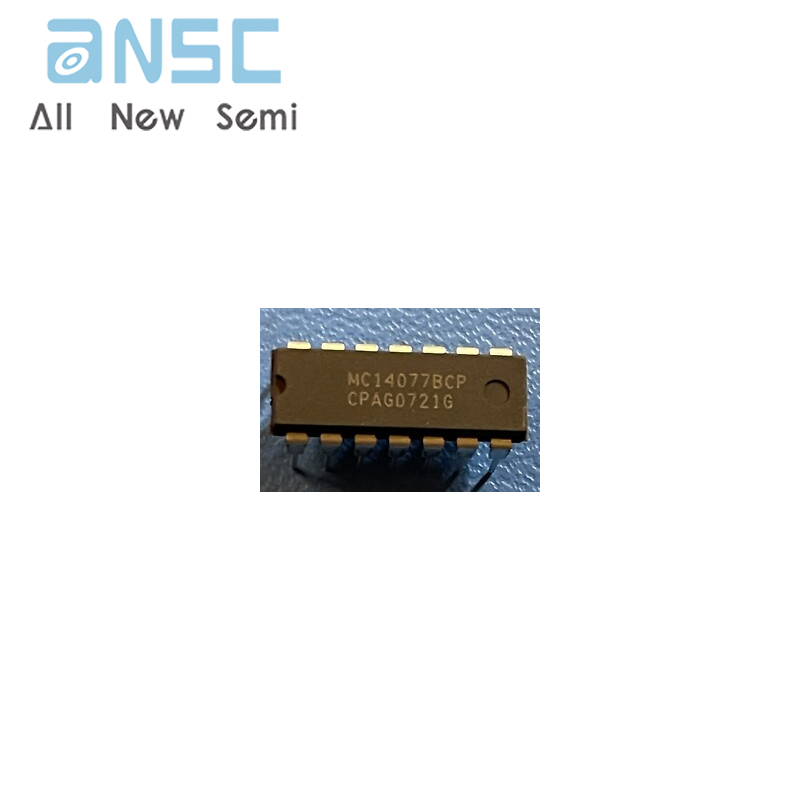

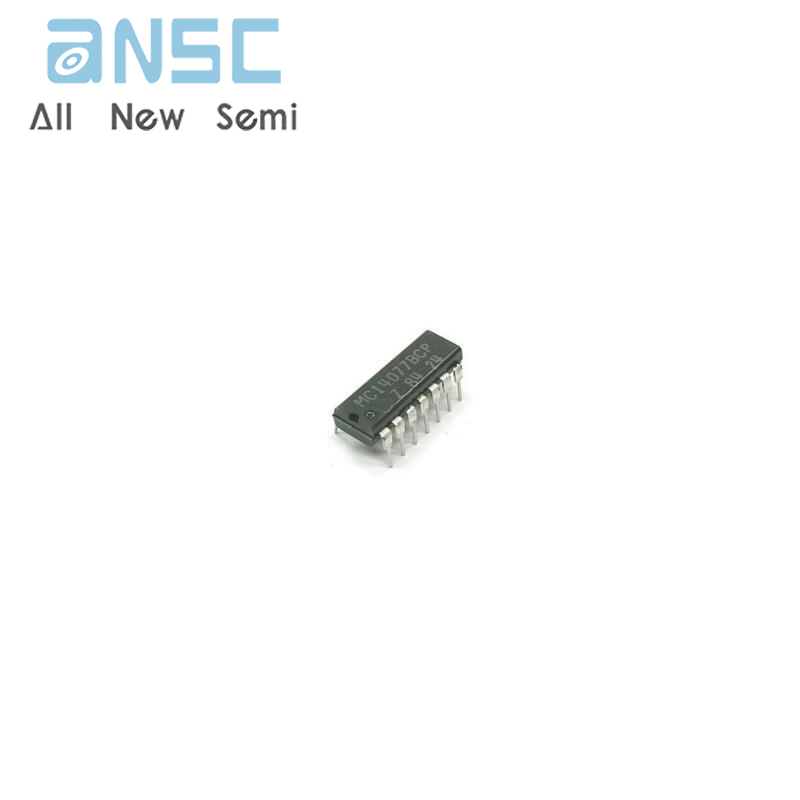

Product Photos
