Hot-selling and scarce IMP706SEPA 3/3.3/4.0V 3/3.3/4.0V µP Supervisor Circuits DIP8 spot stock

Product Descriptions

The IMP706P/R/S/T/J and IMP708R/S/T/J CMOS supervisor circuits monitor power-supply and battery voltage level, and µP/µC operation. A reset is generated when the supply drops below 2.63V (IMP706P/R, IMP708R),2.93V (IMP706S,IMP708S),3.08V (IMP706T,IMP708T) or 4.00(IMP706J, IMP708J).

The family offers several functional options. Each device generates areset  signal  during  power-up,  power-down  and  during  brownout conditions.

In addition, the IMP706P/R/S/T/J feature a 1.6 second watchdog timer. The watchdog  timer  output will  trigger  a reset if connected  to MR. Unlike  competitive  devices,  floating  the WDI  input pin  disables  the watchdog timer.

The IMP708R/S/T/J have both active-HIGH and active-LOW reset outputs but no watchdog function. The IMP706P has the same pin-out and functions as the IMP706R but has an active-HIGH reset output.

A versatile  power-fail  circuit,  useful  in  checking  battery  levels  and non-5V  supplies,  has  a  1.25V  threshold. All  devices  have  a  manual reset input.

All devices are available in 8-pin DIP, SO and the compact MicroSO packages. The MicroSO package requires 50% less PC board area than the conventional SO package.

Product Features

◆  Lower power, pin compatible replacements for Maxim MAX706P/R/S/T, MAX708R/S/T

– 30% lower supply current:140µA vs. 200µA

◆  Precision power supply monitor

– 2.63V threshold (IMP706P/R, IMP708R)

– 2.93V threshold (IMP706S, IMP708S)

– 3.08V threshold (IMP706T, IMP708T)

– New 4 .00V threshold (IMP706J, IMP708J)

◆  Debounced manual reset input

◆  Auxiliary voltage monitor comparator

– 1.25V threshold

– Battery monitor/auxiliary supply monitor

◆  Watchdog timer (IMP706P/R/S/T/J)

– Watchdog can be disabled by floating WDI

◆  200ms reset time delay

◆  Three reset signal options

– Active HIGH: IMP706P

– Active LOW: IMP706R/S/T/J

– Active HIGH & LOW outputs: IMP708R/S/T/J

◆  DIP, SO and MicroSO packages

◆  Guaranteed RESET assertion to VCC = 1.1V

Product Applications

◆  Computers and controllers

◆  CTI applications

◆  Embedded controllers

◆  Battery operated systems

◆  Intelligent instruments

◆  Wireless communication systems

◆  PDAs and handheld equipment

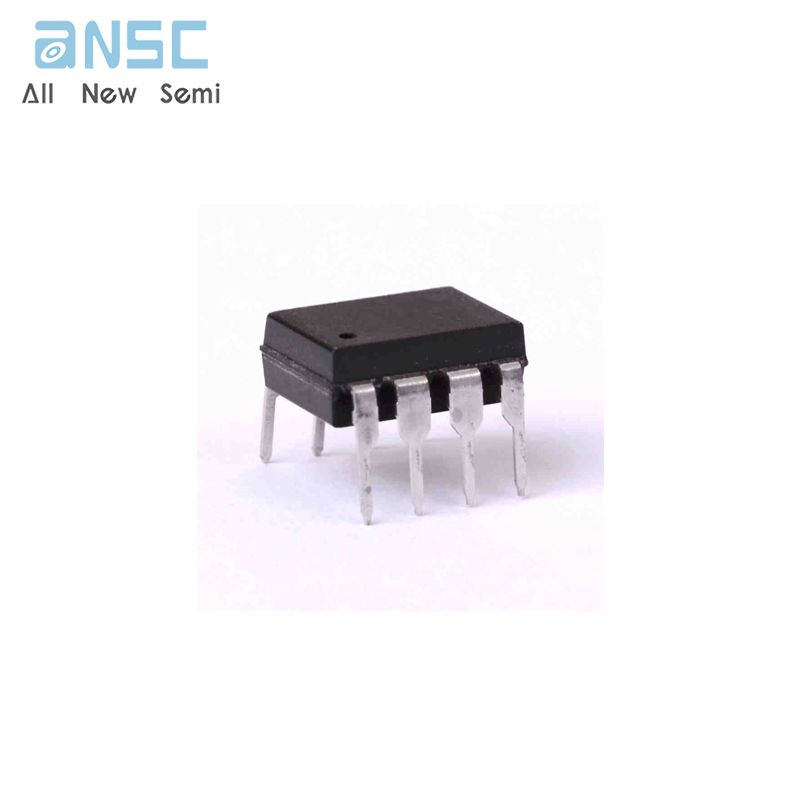

Product Photos

For more product information, please download the PDF
