Hot-selling and scarce N82S126AN 1K-bit TTL bipolar PROM DIP16 spot stock

Product Descriptions

The 82S126 and 82S129 are field programmable, which means that custom patterns are immediately available by following the Signetics Generic I fusing procedure. The 82S126 and 82S129 devices are supplied with all outputs at logical Low. Outputs are programmed to a logic High level at any specified address by fusing the Ni-Crlink matrix.

These devices include on-chip decoding and 2 Chip Enable inputs for ease of memory expansion. They feature either Open Collector or 3-State outputs for optimization of word expansion in bused organizations.

Ordering information can be found on the following page.

The 82S126 and 82S129 devices are also processed to military requirements for operation over the military temperature range. For specifications and ordering information, consult the Signetics Military Data Handbook.

Product Features

Address access time: 50ns max

Power dissipation: 0.5mW/bit typ

Input loading: -100uA max

On-chip address decoding

Two Chip Enable inputs

Output options:

- N82S126: Open Collector

- N82S129:3-State

No separate fusing pins

Unprogrammed outputs are Low level

Fully TTL compatible

Product Applications

Prototyping/volume production

Sequential controllers

Format conversion

Hardwired algorithms

Random logic

Code conversion

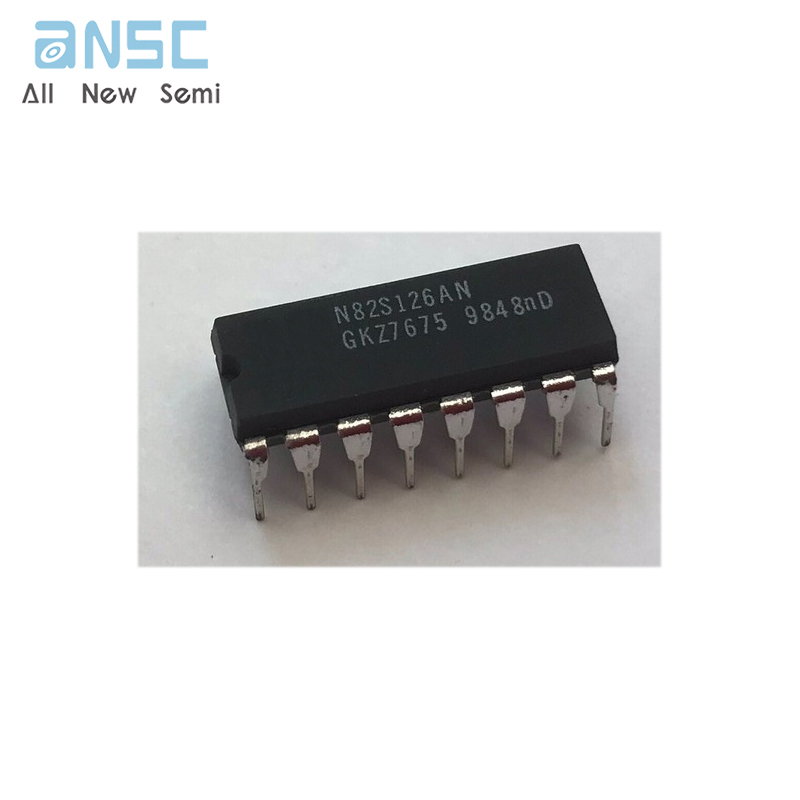

Product Photos

​

For more product information, please download the PDF
