Hot-selling and scarce MP1527DM-LF-Z 2A, 1.3MHz Step-Up Converter TSSOP16

Product Descriptions

The MP1527 is a 2A, fixed frequency step-up converter in a tiny 16 lead QFN package. The high 1.3MHz switching frequency allows for smaller external components producing a compact solution for medium-to-high current step-up, flyback, and SEPIC applications.

The MP1527 regulates the output voltage up to 25V at efficiency as high as 93 PERCENT. Soft-start, timer-latch fault circuitry, cycle-by-cycle current limiting, and input undervoltage lockout prevent overstressing or damage to external circuitry at startup and output short-circuit conditions. Fixed frequency operation eases control of noise making the MP1527 optimal for noise sensitive applications such as mobile handsets and wireless LAN PC cards. Current-mode regulation and external compensation components allow the MP1527 control loop to be optimized over wide variety of input voltage, output voltage and load current conditions.

The MP1527 is offered in a tiny 4mm x 4mm 16 lead QFN and 14 lead TSSOP packages.

Product Features

 2A Peak Current Limit

Internal 150mΩ Power Switch

VIN Range of 2.6V to 25V

>93 PERCENT Efficiency

Zero Current Shutdown Mode

Under Voltage Lockout Protection

Timer-Latch Fault Detection

Soft Start Operation

Thermal Shutdown

Tiny 4mm x 4mm 16 pin QFN Package

Evaluation Board Available

Product Applications

SOHO Routers, PCMCIA Cards, Mini PCI

Handheld Computers, PDAs

Cell Phones, Digital and Video Cameras

Small LCD Display

Product Specification

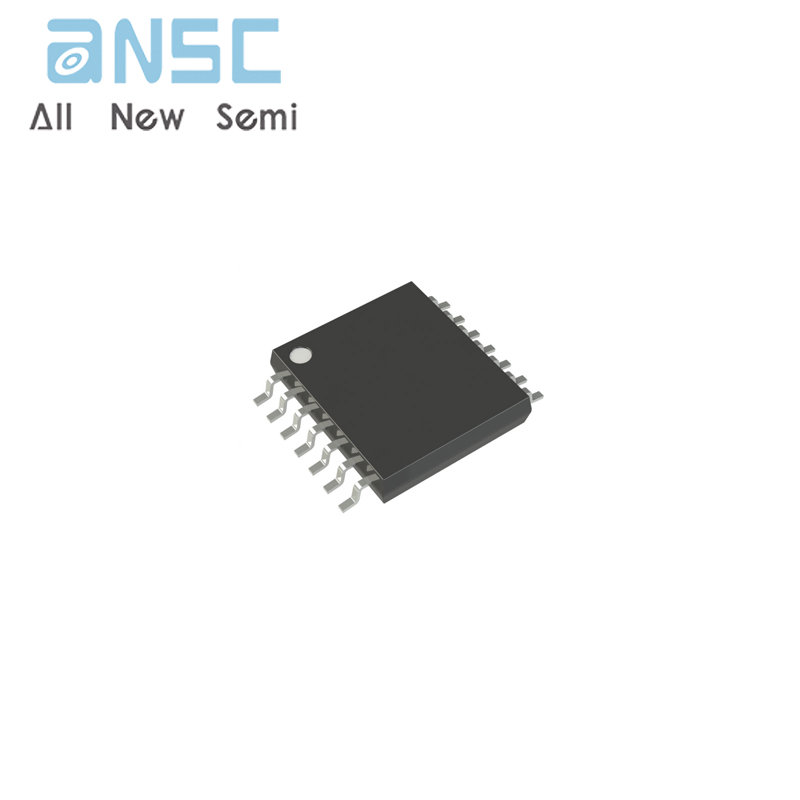

Product Photos

For more product information, please download the PDF
