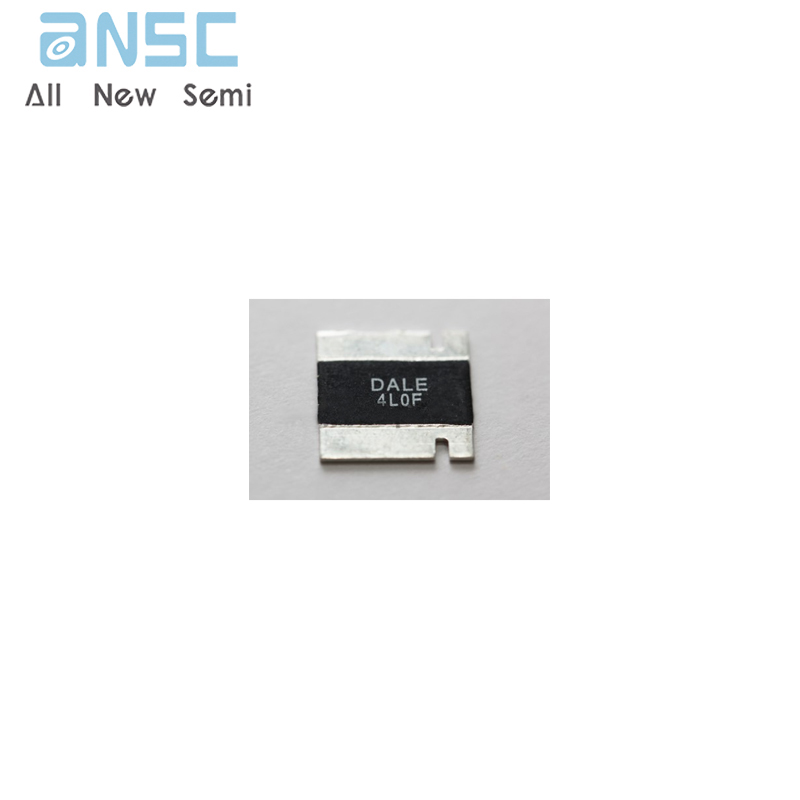

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
WSL36374L000FEA Power Metal Strip® Resistors, Low Value (down to 0.001 Ω), Surface Mount, 4-Terminal SMD spot stock
Manufacturer Product Number
WSL36374L000FEA
Description
WSL36374L000FEA Power Metal Strip® Resistors, Low Value (down to 0.001 Ω), Surface Mount, 4-Terminal SMD spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• 4-Terminal design allows for 0.5 % resistance tolerance down to 0.001 Ω
• Ideal for all types of current sensing, voltage division and pulse applications including switching and linear power supplies, instruments and power amplifiers
• Proprietary processing technique produces extremely low resistance values (down to 0.001 Ω)
• All welded construction
• Solid metal nickel-chrome alloy resistive element with low TCR (< 20 ppm/°C)
• Solderable terminations
• Low thermal EMF (< 3 μV/°C)
• Very low inductance, 0.5 nH to 5 nH
• Excellent frequency response to 50 MHz
• AEC-Q200 qualified (1)
• Compliant to RoHS Directive 2002/95/EC
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-WSL36374L000FEA |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr | - |
| cms-filter-header-series | WSL |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Resistance | 4 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 3W |
| Composition | Metal Element |
| Features | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -65°C ~ 170°C |
| Package / Case | Nonstandard |
| Supplier Device Package | 3637 |
| Size / Dimension | 0.360" L x 0.370" W (9.14mm x 9.40mm) |
| Height - Seated (Max) | 0.035" (0.89mm) |
| Number of Terminations | 4 |
