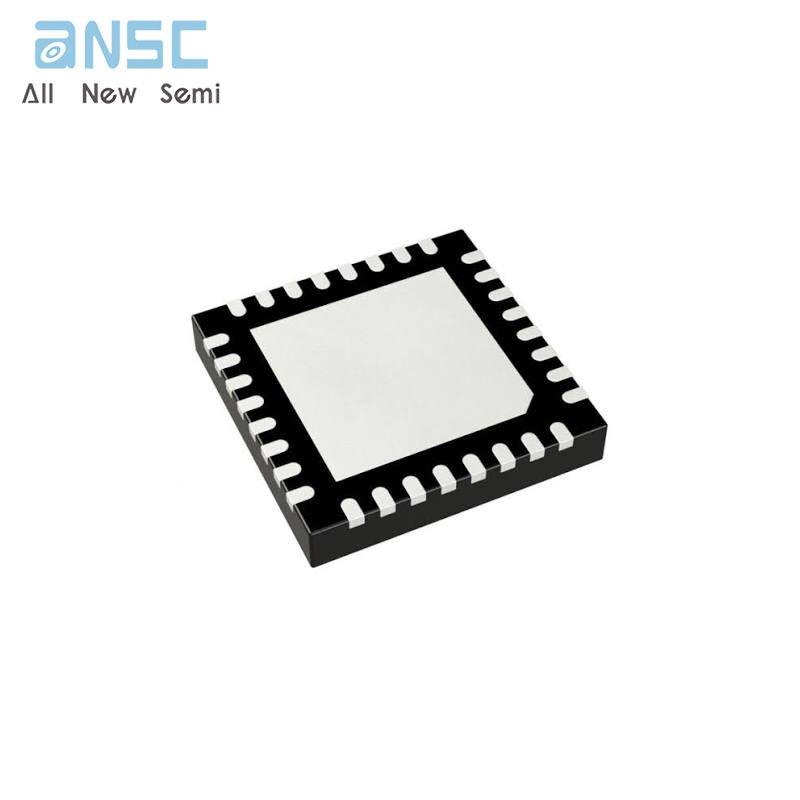

Hot-selling and scarce 8V89308ANLGI Jitter Attenuator & FemtoClock Multiplier QFN spot stock

Product Descriptions

The IDT8V89308I is a PLL based synchronous multiplier specifically  designed for applications utilizing Broadcom PHYs and Switches.  This high performance device is optimized for Ethernet / SONET /  PDH frequency translation and clock jitter attenuation. The device  contains two internal frequency multiplication stages that are  cascaded in series. The first stage is a low bandwidth PLL that is  optimized to provide reference clock jitter attenuation. The second  stage is a FemtoClock® frequency multiplier that provides the low  jitter, high frequency Ethernet output clock that easily meets Gigabit  and 10 Gigabit Ethernet jitter requirements. Pre-divider and output  divider multiplication ratios are selected using device selection  control pins. The multiplication ratios are optimized to support most  common clock rates used in Ethernet, SONET, PDH applications.  IDT8V89308I requires the use of an external, inexpensive  fundamental mode crystal and uses external passive loop filter  components which allows configuration of the PLL loop bandwidth  and damping characteristics. The device is packaged in a  space-saving 32-VFQFN package and supports industrial  temperature range.

Product Features

• Two LVPECL output pairs Each output supports independent frequency selection at 25MHz, 125MHz and 156.25MHz

• One differential input supports the following input types: LVPECL, LVDS

• Accepts input frequencies 8kHz, 25MHz,125MHz and 155.52MHz

• First stage PLL bandwidth can be optimized for jitter attenuation and reference tracking using external loop filter connection

• FemtoClock frequency multiplier provides low jitter, high frequency output

• Absolute pull range: 50ppm

• FemtoClock VCO frequency: 625MHz

• RMS phase jitter @ 25MHz, using a 25MHz crystal

(12kHz – 5MHz): 0.238ps (typical), 0.30ps (maximum)

• RMS phase jitter @ 125MHz, using a 25MHz crystal

(12kHz – 20MHz): 0.223ps (typical), 0.30ps (maximum)

• RMS phase jitter @ 156.25MHz, using a 25MHz crystal

(12kHz – 20MHz): 0.223ps (typical), 0.30ps (maximum)

• 3.3V supply voltage

• -40°C to 85°C ambient operating temperature

• Available in lead-free (RoHS 6) package

Product Specification

Product Photos

For more product information, please download the PDF
