Hot-selling and scarce SSM2602CPZ-REEL7 Low Power Audio Codec QFN-28 spot stock

Product Descriptions

The SSM2602 is a low power, high quality stereo audio codecfor portable digital audio applications with one set ofstereoprogrammable gain amplifier (PGA) line inputs and onemonaural microphone input. It features two 24-bit analog-todigital converter (ADC) channels and two 24-bit digital-toanalog (DAC) converter channels

The SSM2602 can operate as a master or a slave . It supportsvarious master clock frequencies, including 12 MHz or 24 MHzfor USB devices; standard 256 fS or 384 fS based rates, such as12.288 MHz and 24.576 MHz; and many common audio samplingrates, such as 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz, 32 kHz, 24 kHz,22.05 kHz, 16 kHz, 12 kHz, 11.025 kHz, and 8 kHz

Product Features

Stereo,24-bit analog-to-digital and digital-to-analog converters

DAC SNR: 100 dB (A-weighted),THD: −80 dB at 48 kHz, 3.3 V

ADC SNR: 90 dB (A-weighted),THD: −80 dB at 48 kHz, 3.3 V

Highly efficient headphone amplifier

Stereo line input and monaural microphone input

Low power

7 mW stereo playback (1.8 V/1.5 V supplies)

14 mW record and playback (1.8 V/1.5 V supplies)

Low supply voltages

Analog: 1.8 V to 3.6 V

Digital core: 1.5V to 3.6 V

Digital I/O: 1.8 V to 3.6 V

256/384 oversampling rate in normal mode; 250/272 over

sampling rate in USB mode

Audio sampling rates: 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz,

and 96 kHz

28-lead, 5 mm × 5 mm LFCSP package

Product Applications

Mobile phones

MP3 players

Portable gaming

Portable electronics

Educational toys

Product Specification

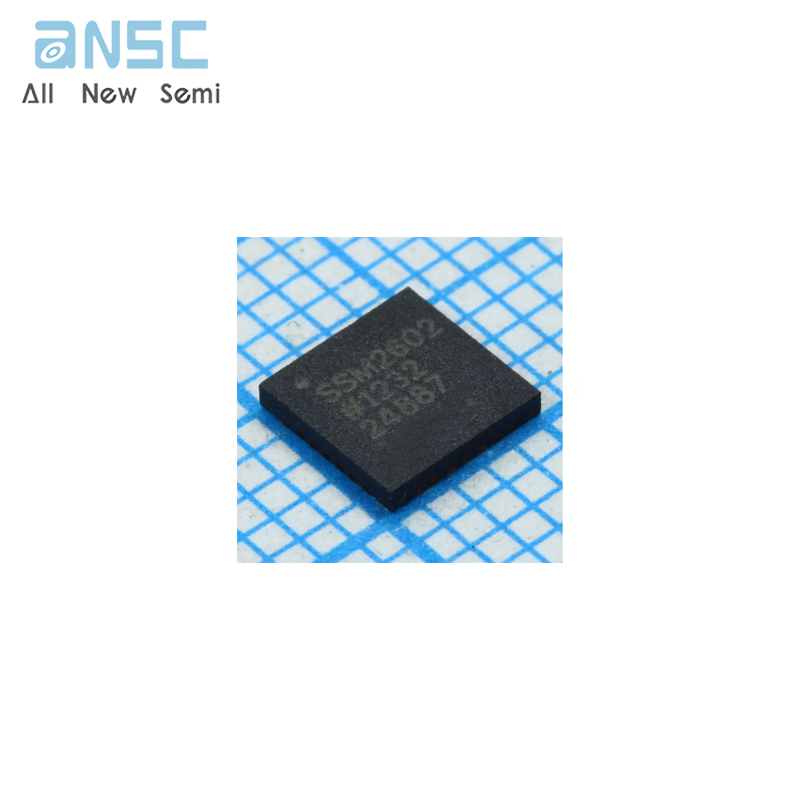

Product Photos

    ​

For more product information, please download the PDF
