Hot-selling and scarce DG409DY+T iMPROVED, 8-cHANNEL/dUAL 4-cHANNEL, cmos aNALOG mULTIPLEXERS SOP16
Manufacturer Product Number
DG409DY+T
Description
DG409DY+T iMPROVED, 8-cHANNEL/dUAL 4-cHANNEL, cmos aNALOG mULTIPLEXERS SOP16
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
Redesigned DG406 and DG407 CMOS analog multiplexers now feature guaranteed matching between channels (8Ω max) and flatness over the specified signal range (9Ω max). These low on-resistance muxes (100Ω max) conduct equally well in either direction and feature guaranteed low charge injection (15pC max). In addition, these new muxes offer low input off-leakage current over temperature—less than 5nA at +85°C.
The DG406 is a 1 of 16 multiplexer/demultiplexer and the DG407 is a dual 8-channel multiplexer/demultiplexer. Both muxes operate with a +4.5V to +30V single supply and with ±4.5V to ±20V dual supplies. ESD protection is guaranteed to be greater than 2000V per Method 3015.7 of MIL-STD 883. These improved muxes are pin-compatible plug-in upgrades for the industry standard DG406 and DG407.
Product Features
♦ Pin-Compatible Plug-In Upgrade for Industry Standard DG406/DG407
♦ Guaranteed Matching Between Channels, 8Ω Max
♦ Guaranteed On-Resistance Flatness, 9Ω Max
♦ Guaranteed Low Charge Injection, 15pC Max
♦ Low On-Resistance 100Ω Max
♦ Input Leakage, 5nA Max at +85°C
♦ Low Power Consumption, 1.25mW Max
♦ Rail-to-Rail Signal Handling
♦ Digital Input Controls TTL/CMOS Compatible
♦ ESD Protection >2000V per Method 3015.7
Product Applications
Sample-and-Hold Circuits
Test Equipment
Guidance and Control Systems
Communications Systems
Data-Acquisition Systems
Audio Signal Routing
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DG409DY+T |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (螖Ron) | 1.5Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 30V |
| Voltage - Supply, Dual (V卤) | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -92dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | DG409 |

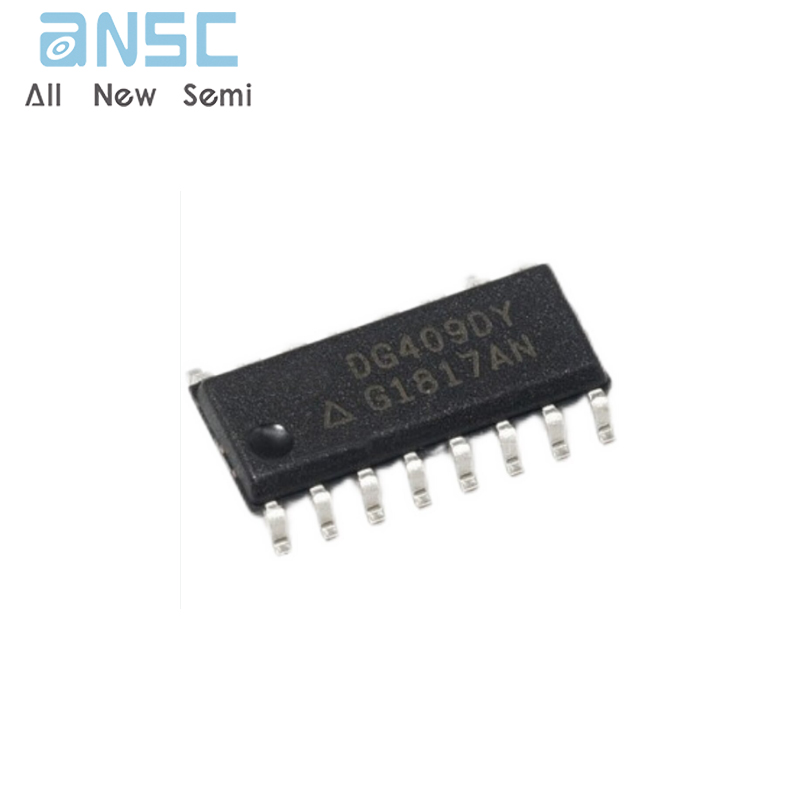

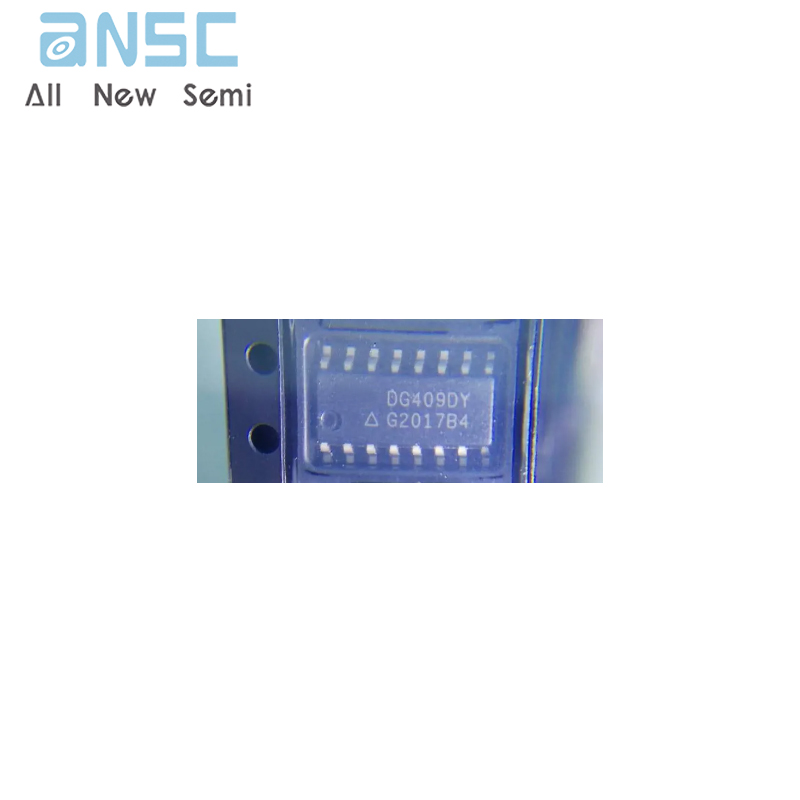

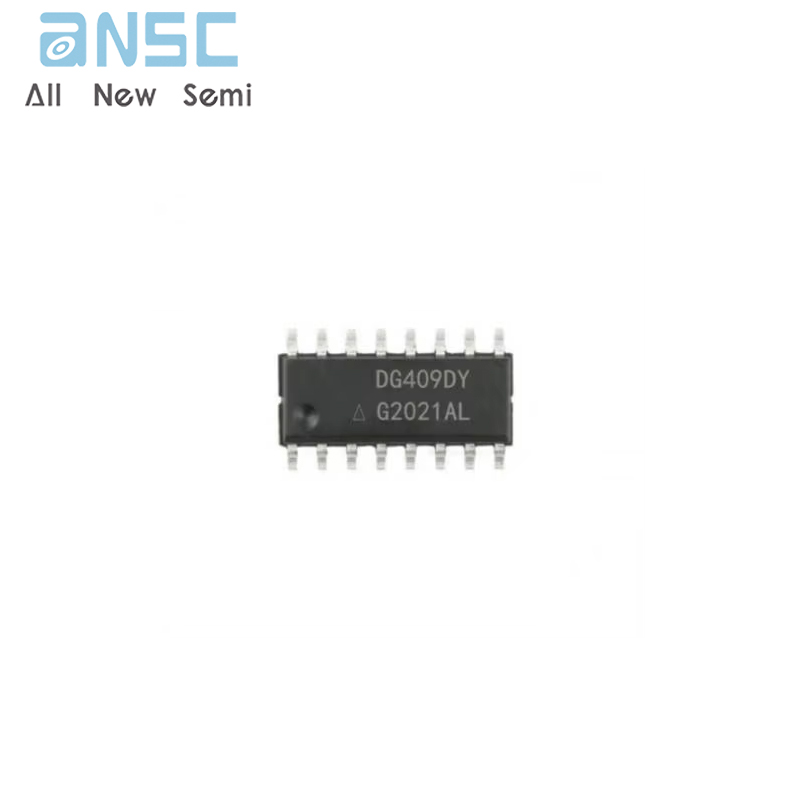

Product Photos
For more product information, please download the PDF
