Hot-selling and scarce SLVU2.8-4 EPD TVS Diode Array For ESD and Latch-Up Protection SOP8

Product Descriptions

The SLV series of transient voltage suppressors are designed to protect low voltage, state-of-the-art CMOS semiconductors from transients caused by electrostatic discharge (ESD), cable discharge events (CDE), lightning and other induced voltage surges.

The devices are constructed using Semtech’s proprietary EPD process technology. The EPD process provides low standoff voltages with significant reductions in leakage currents and capacitance over siliconavalanche diode processes. The SLVU2.8-4 features integrated low capacitance compensation diodes that reduce the typical capacitance to 5pF per line. This, combined with low leakage current, means signal integrity is preserved in high-speed applications such as 10/100 Ethernet.

The SLVU2.8-4 is in an SO-8 package and may be used to protect two high-speed line pairs. The “flow-thru” design minimizes trace inductance and reduces voltage overshoot associated with ESD events. The low clamping voltage of the SLVU2.8-4 minimizes the stress on the protected IC.

The SLV series TVS diodes will meet the surge requirements of IEC 61000-4-2, Level 4.

Product Features

400 Watts peak pulse power (tp= 8/20µs)

Transient protection for high speed data lines to

IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)

IEC 61000-4-4 (EFT) 40A (5/50ns)

IEC 61000-4-5 (Lightning) 24A (8/20µs)

Protects two line pairs (four lines)

Comprehensive pin out for easy board layout

Low capacitance

Low leakage current

Low operating and clamping voltages

Solid-state EPD TVS process technology

Product Applications

10/100 Ethernet

WAN/LAN Equipment

Switching Systems

Desktops, Servers, and Notebooks

Instrumentation

Base Stations

Analog Inputs

Product Specification

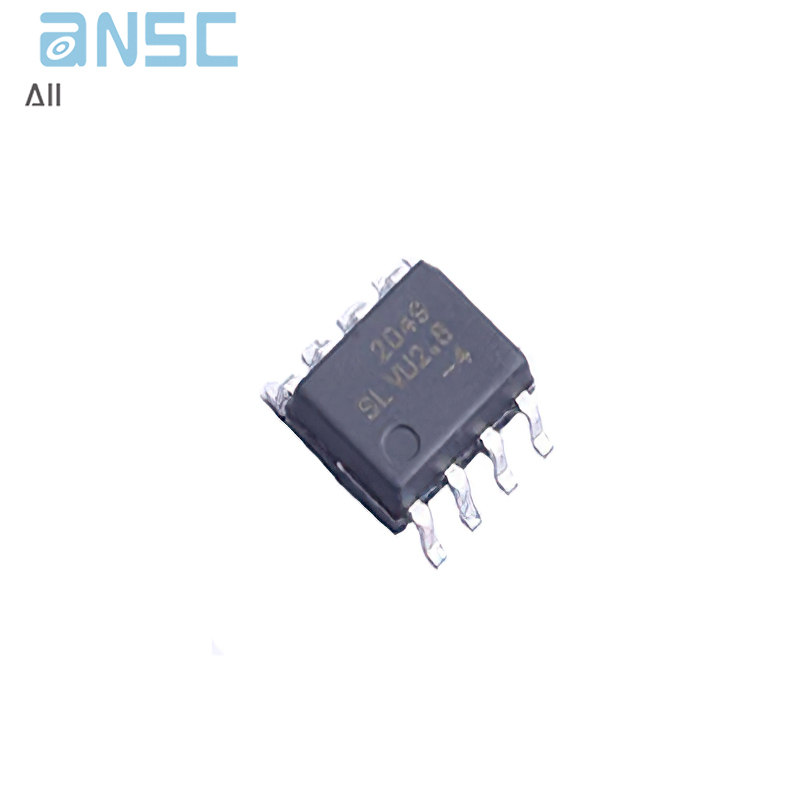

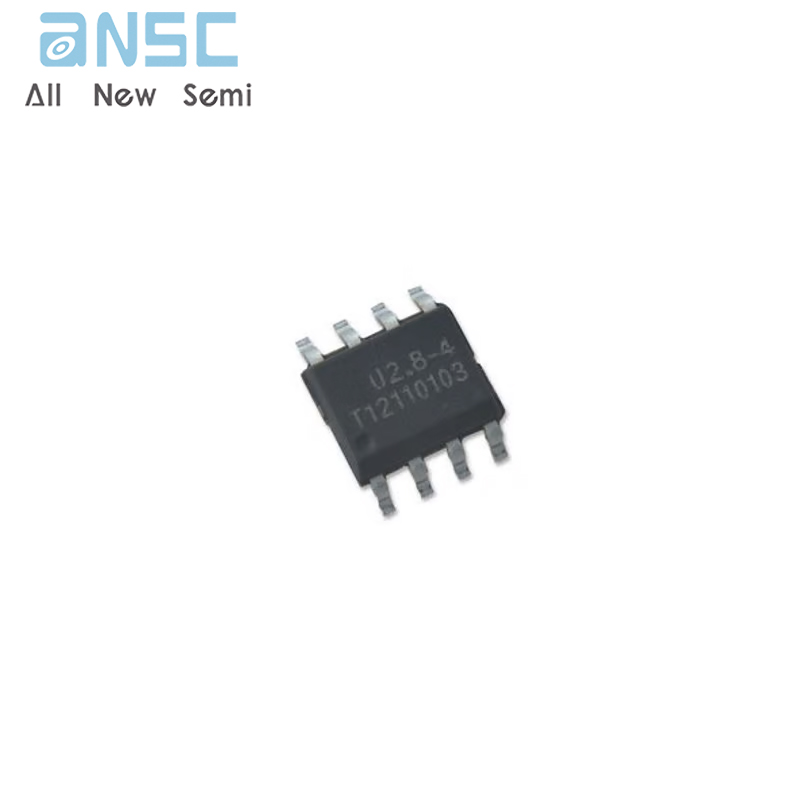

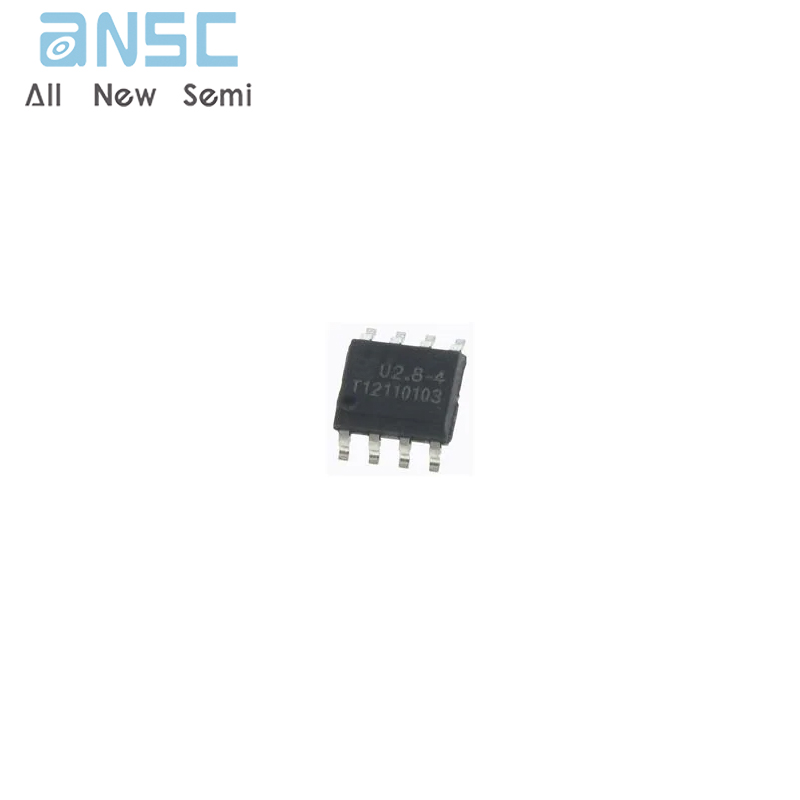

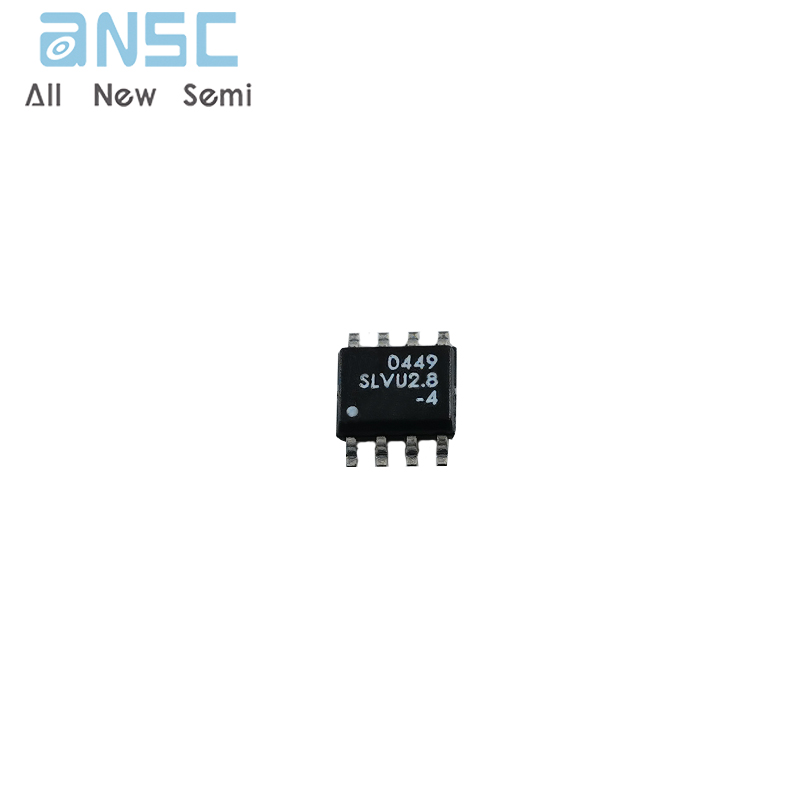

Product Photos
