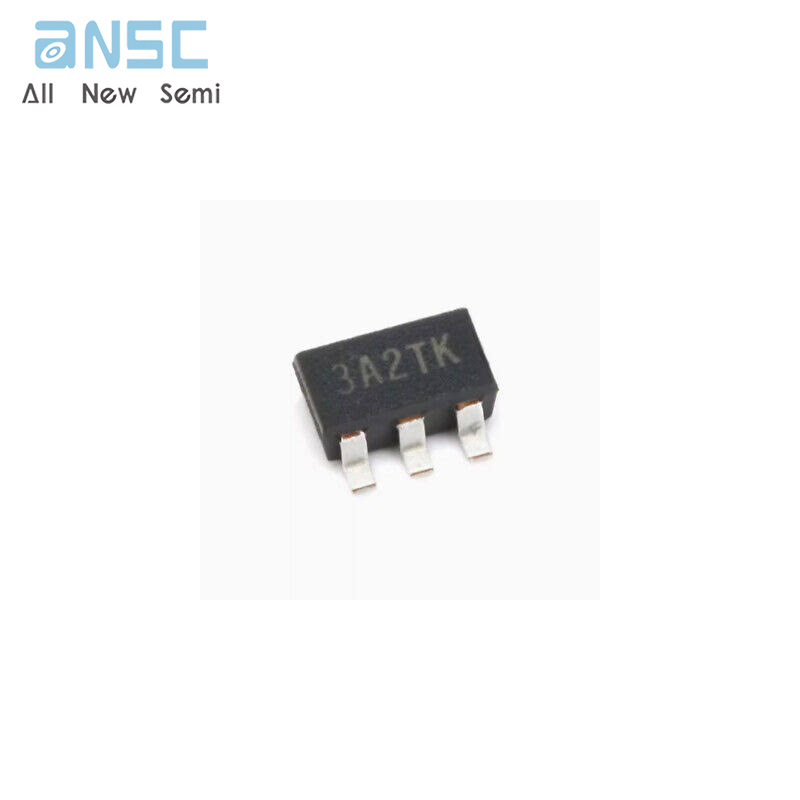

Hot-selling and scarce XC6221A332MR Low ESR Caps Compatible High Speed LDO Voltage Regulator SOT23 spot stock

Product Descriptions

The XC6221 series is a high accuracy, low noise, high speed, low dropout CMOS regulator with high ripple rejection.The series includes a reference voltage source, an error amplifier, a current limiter, and a phase compensation circuit.

The CE function enables the entire circuit to be in stand-by state by inputting low level signal.As for the XC6221B/D stand-by mode, the electric charge at the output capacitor (CL) will be discharged by the internal auto-discharge switch, and as a result the VOUT pin quickly returns to the VSS  level. The output stabilization capacitor (CL) is also compatible with low ESR ceramic capacitors.

Output voltage is selectable in 0.05V increments within a range of 0.80V~5.00V, using the laser trimming technology set in factory.

The current limiter's fold-back circuit also operates as a short circuit protection and an output current limiter at the output pin. The series achieves a fast response with only 25μA of low power consumption. Also the series has low dropout voltage characteristics, which is 80mV at IOUT=100mA and VOUT=3 .0V.

​

With the use of small USP-4 and ultra small USPN-4 packages, a small footprint circuit can be designed.

Product Features

Maximum Output Current

: 200mA <Up to 250mA (TYP.)>

Dropout Voltage

: 80mV@ IOUT=100mA, VOUT=3 .0V

Operating Voltage Range

: 1.6V ~ 6.0V

Output Voltage Range

Accuracy

Low Power Consumption

Stand-by Current

: 0.80V~5 .00V (0 .05V increments, expect USPN-4)

1.20V~5 .00V (0 .05V increments, USPN-4)

: +2%     (VOUT >1.50V) (Standard)

+30mV (VOUT ≦1.45V) (Standard)

+1%     (VOUT >2.00V) (High Accuracy)

+20mV (VOUT ≦1.95V) (High Accuracy)

: 25μA

: 0.01 μA

High Ripple Rejection

Function

: 70dB @ 1kHz

: CE function(Active High)

CL Auto-Discharge (B/D Type)

CE Pin internally pulled-down (C/D Type)

Low ESR Capacitor

: 1.0μF ceramic capacitor

Low Output Noise

Operating Ambient Temperature   : -40℃~ 85℃

Packages

: USP-4, SOT-25, SSOT-24 , USPN-4

Environmentally Friendly

: EU RoHS Compliant, Pb Free

Product Applications

●Smart phones / Mobile phones

●Portable game consoles

●Digital still cameras / Camcorders

●Digital audio equipments

●Mobile devices / terminals

Product Photos

For more product information, please download the PDF
