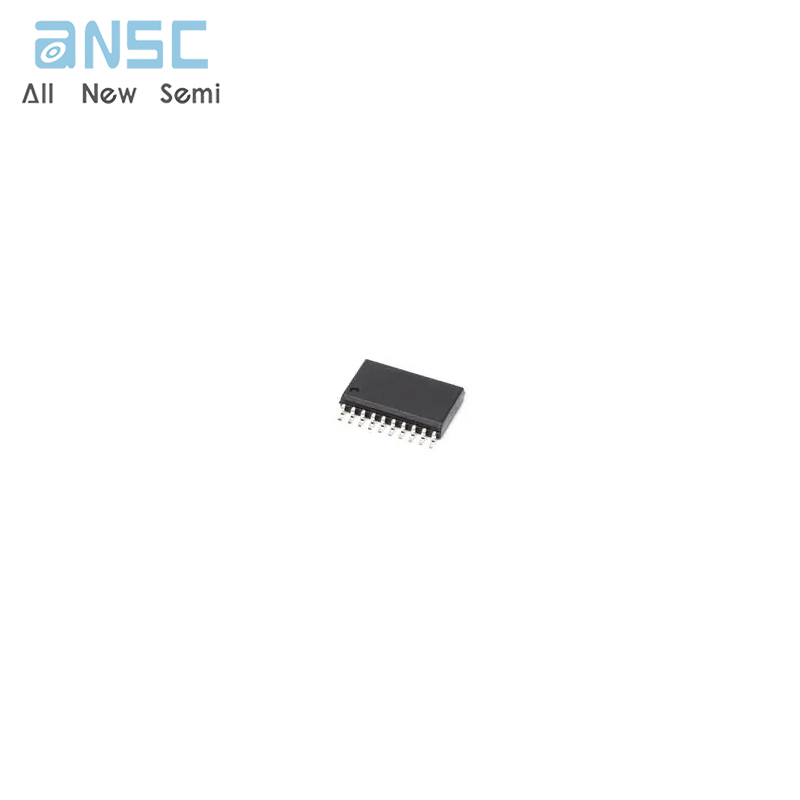

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce MC74AC573DW OCTAL D-TYPE LATCH WITH 3-STATE OUTPUTS SOIC20 spot stock
Manufacturer Product Number
MC74AC573DW
Description
MC74AC573DW OCTAL D-TYPE LATCH WITH 3-STATE OUTPUTS SOIC20 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MC74AC573/74ACT573 is a high−speed octal latch with buffered common Latch Enable (LE) and buffered common Output Enable (OE) inputs.
The MC74AC573/74ACT573 is functionally identical to the MC74AC373/74ACT373 but has inputs and outputs on opposite sides.
Product Features
• Inputs and Outputs on Opposite Sides of Package Allowing Easy Interface with Microprocessors
• Useful as Input or Output Port for Microprocessors
• Functionally Identical to MC74AC373/74ACT373
• 3−State Outputs for Bus Interfacing
• Outputs Source/Sink 24 mA
• ′ACT573 Has TTL Compatible Inputs
• These are Pb−Free Devices
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MC74AC573DW |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Latches | |
| Mfr | - |
| Series | 74AC |
| Packaging | Tube |
| Part Status | Active |
| Logic Type | D-Type Transparent Latch |
| Circuit | 8:8 |
| Output Type | Tri-State |
| Voltage - Supply | 2V ~ 6V |
| Independent Circuits | 1 |
| Delay Time - Propagation | 2.5ns |
| Current - Output High, Low | 24mA, 24mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | 74AC573 |
Product Photos
For more product information, please download the PDF
