Hot-selling and scarce H5TQ4G83AFR-PBCR 4Gb DDR3 SDRAM BGA spot stock

Product Descriptions

The H5TQ4G43AFR-xxC, H5TQ4G83AFR-xxC and H5TQ4G63AFR-xxC are a 4Gb CMOS Double Data Rate III(DDR3) Synchronous DRAM, ideally suited for the main memory applications which requires large memory density and high bandwidth. 4Gb DDR3 SDRAMs offer fully synchronous operations referenced to both rising and falling edges of the clock.While all addresses and control inputs are latched on the rising edges of the CK (falling edges of the CK), Data, Data strobes and Write data masks inputs are sampled on both rising and falling edges of it.The data paths are internally pipelined and 8-bit prefetched to achieve very high bandwidth.

Product Features

•  VDD=VDDQ=1.5V +/- 0.075V

•   Fully differential clock inputs (CK, CK) operation

•   Differential Data Strobe (DQS, DQS)

•  On chip DLL align DQ, DQS and DQS transition with CK transition

•   DM masks write data-in at the both rising and falling edges of the data strobe

•  All addresses and control inputs except data, data strobes and data masks latched on the rising edges of the clock

•  Programmable CAS latency 5, 6, 7,8,9, 10, 11, 13 and 14 supported

•   Programmable additive latency 0, CL-1, and CL-2 supported

•  Programmable CAS Write latency (CWL) = 5, 6, 7,8,9,10

•   Programmable burst length 4/8 with both nibble sequential and interleave mode

•   BL switch on the fly

•   8banks

• Average RefreshCycle (Tcaseof0 oC~95 oC)

-7.8 µs at 0oC ~85 oC

- 3.9 µs at 85oC ~ 95 oC

•   JEDEC standard 78ball FBGA(x4/x8), 96ball FBGA(x16

•   Driver strength selected by EMRS

•   Dynamic On Die Termination supported

•  Asynchronous RESET pin supported

•   ZQ calibration supported

•   TDQS (Termination Data Strobe) supported (x8 only)

•   Write Levelization supported

•   8 bit pre-fetch

•   This product in compliance with the RoHS directive.

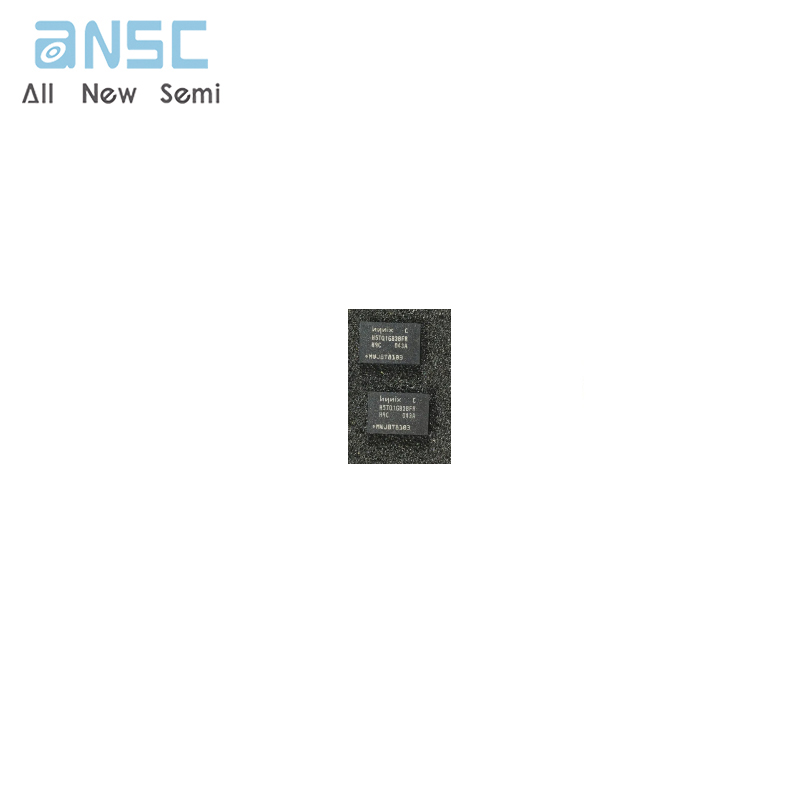

Product Photos

For more product information, please download the PDF

WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
