Hot-selling and scarce AP7340-25FS4-7 150mA HIGH PSRR LOW NOISE LDO WITH ENABLE SFN1010
Manufacturer Product Number
AP7340-25FS4-7
Description
AP7340-25FS4-7 150mA HIGH PSRR LOW NOISE LDO WITH ENABLE SFN1010
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AP7340 is low dropout regulator with high output voltage accuracy, low RDSON, high PSRR, low output noise and low quiescent current. This regulator is based on a CMOS process.
The AP7340 includes a voltage reference, error amplifier, current limit circuit and an enable input to turn it on and off. With the integrated resistor network fixed output voltage versions can be delivered. With its low power consumption and line and load transient response the AP7340 is well suited for low power handheld communication equipment.
The AP7340 is packaged in a X2-DFN1010-4 package and allows for smallest footprint and dense PCB layout.
Product Features
● Low VIN and wide VIN range: 1.7V to 5.25V
● Guarantee Output Current,150mA
● VOUT accuracy ±1 percent
● Ripple Rejection 75dB at 1kHz
● Low output noise, 60uVrms from 10Hz to 100kHz
● Quiescent current as low as 35µA
● VOUT fixed 1.2V to 3.3V
● Totally Lead-Free & and Fully RoHS Compliant
● Halogen and Antimony Free, Green Device
Product Applications
Smart phone/PAD
RF supply
Cameras
Portable Video
Portable Media player
Wireless adapter
Wireless communication
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AP7340-25FS4-7 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage Dropout (Max) | 0.3V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | X2-DFN1010-4 |
| Base Product Number | AP7340 |

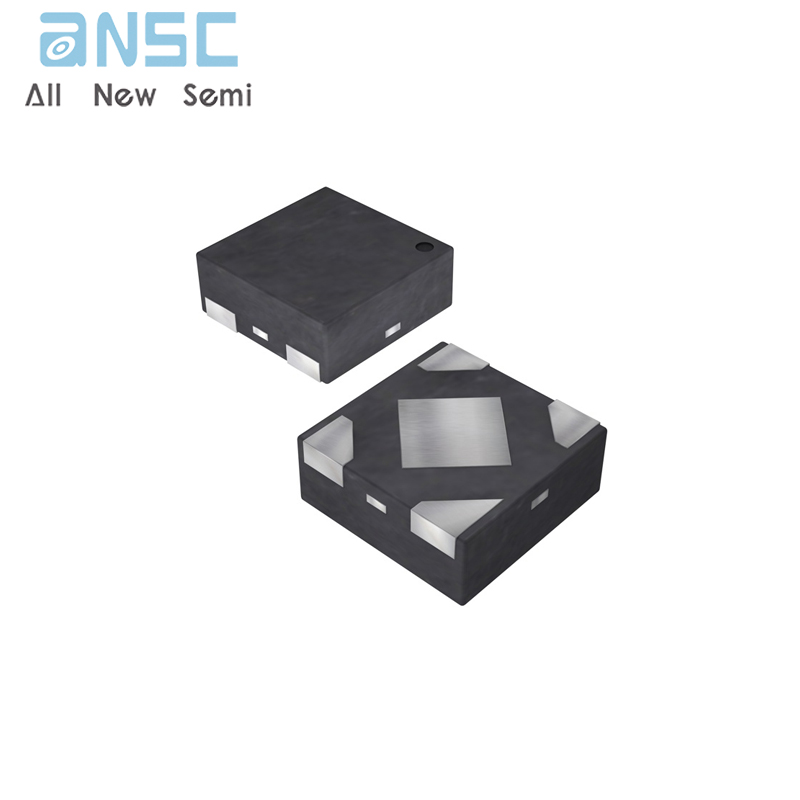

Product Photos
For more product information, please download the PDF
Other Products In The same category:
AP7340-25FS4-7 150mA HIGH PSRR LOW NOISE LDO WITH ENABLE SFN1010
263In stock:
Can ship immediately
