Hot-selling and scarce MP8040DN-LF-Z High Current Integrated Half Bridge + Driver SOP-8

Product Descriptions

The MP8040 is a general purpose, high frequency half bridge power driver capable of driving a 9A load. The devices integrates both top and bottom N-Channel MOSFET power switches and is fully protected from both sourcing and sinking current by a preset cycle-by-cycle current limit. It has a wide input voltage range from 7.5V to 25V.

The MP8040 features a low-current shutdown mode, input under-voltage protection, thermal shutdown, and fault flag signal output. It interfaces with standard logic signals and is available in a small 8-pin SOIC with exposed pad package.

Product Features

• ±9A Peak Current Output

• ±4.25A Continuous Current Output

• Up to 1.2MHz Switching Frequency

• Protected Integrated Power 100mΩ Switches

• All Switches Current Limited

• Integrated Under-Voltage Protection

• Integrated Thermal Protection

• 2.5µA Standby Mode

• True 2-Quadrant Operation

• Sources and Sinks Current

• Fault Indicator Output

Product Applications

• Class D Audio Driver

o 25W/4Ω/10 PERCENT Output Power Single Ended

o 70W/4Ω/10 PERCENT Output Power Full Bridge

• Full or Half Bridge DC-DC Switching Regulator

• Motor Driver

Product Specification

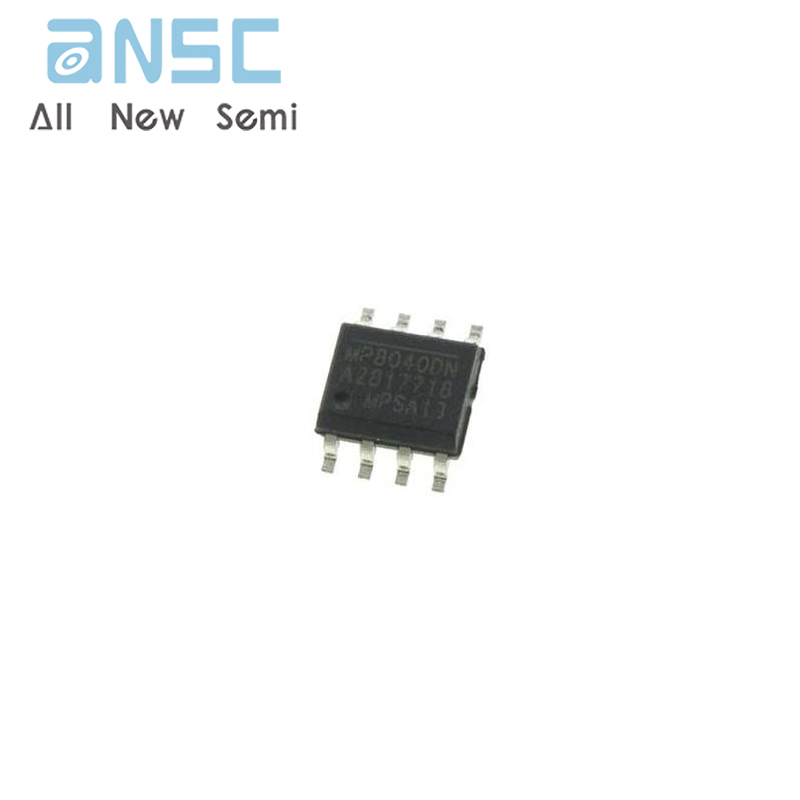

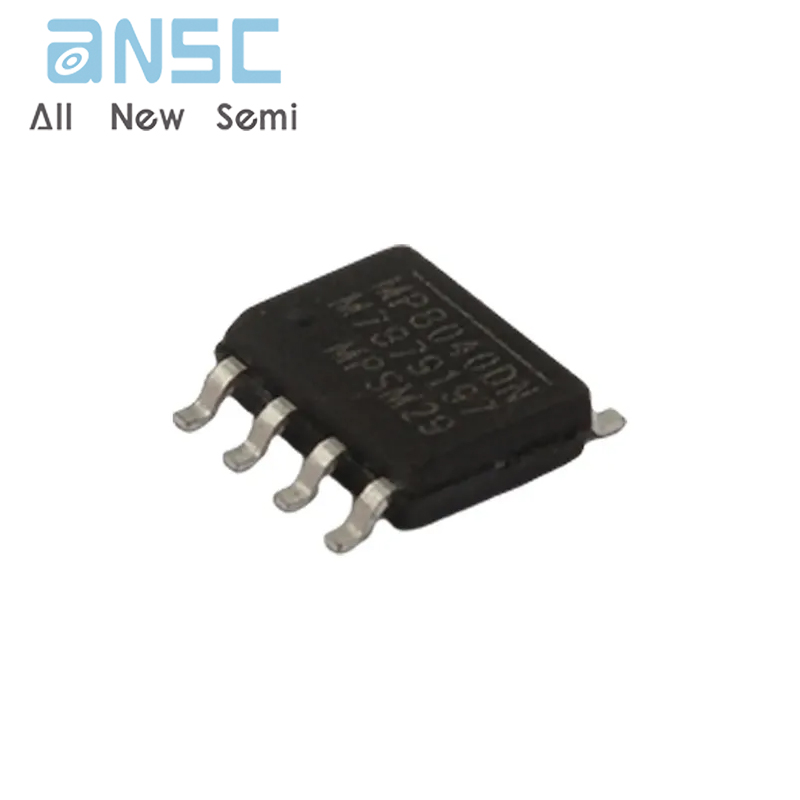

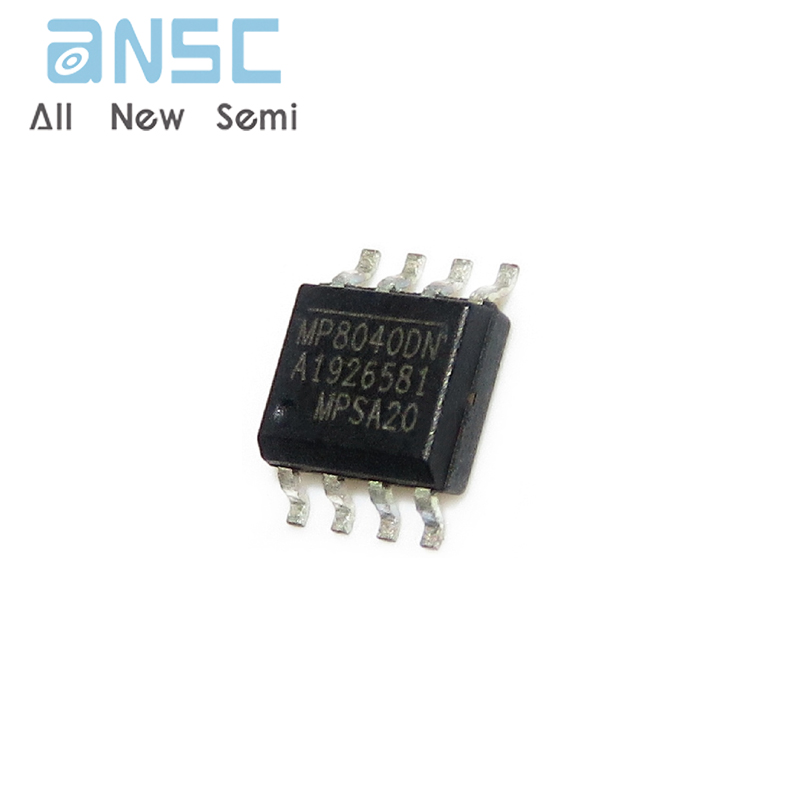

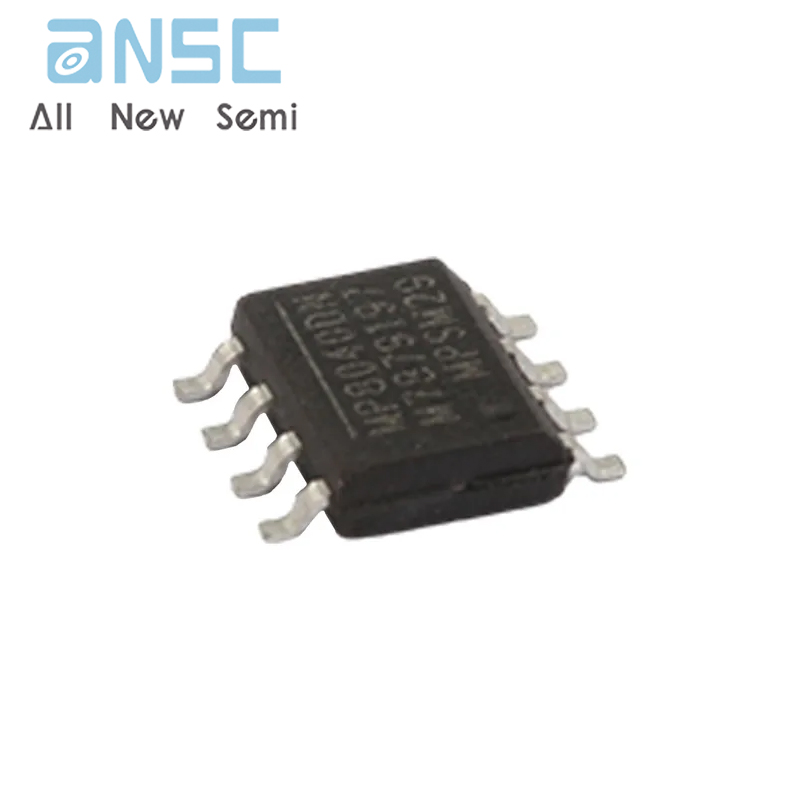

Product Photos

For more product information, please download the PDF
