Hot-selling and scarce ADS7828E/250 12-Bit, 8-Channel Sampling ANALOG-TO-DIGITAL CONVERTER TSSOP16 spot stock
Manufacturer Product Number
ADS7828E/250
Description
ADS7828E/250 12-Bit, 8-Channel Sampling ANALOG-TO-DIGITAL CONVERTER TSSOP16 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ADS7828 is a single-supply, low-power, 12-bit data acquisition device that features a serial I2C interface and an 8-channel multiplexer. The Analog-to-Digital (A/D) converter features a sample-and-hold amplifier and internal, asynchronous clock. The combination of an I2C serial, 2-wire interface and micropower consumption makes the ADS7828 ideal for applications requiring the A/D converter to be close to the input source in remote locations and for applications requiring isolation. The ADS7828 is available in a TSSOP-16 package.
Product Features
● 8-CHANNEL MULTIPLEXER
● 50kHz SAMPLING RATE
● NO MISSING CODES
● 2.7V TO 5V OPERATION
● INTERNAL 2.5V REFERENCE
● I2C INTERFACE SUPPORTS:
Standard, Fast, and High-Speed Modes
● TSSOP-16 PACKAGE
Product Applications
● VOLTAGE-SUPPLY MONITORING
● ISOLATED DATA ACQUISITION
● TRANSDUCER INTERFACE
● BATTERY-OPERATED SYSTEMS
● REMOTE DATA ACQUISITION
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADS7828E/250 |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 50k |
| Number of Inputs | 8 |
| Input Type | Differential, Single Ended |
| Data Interface | I2C |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V, 5V |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADS7828 |

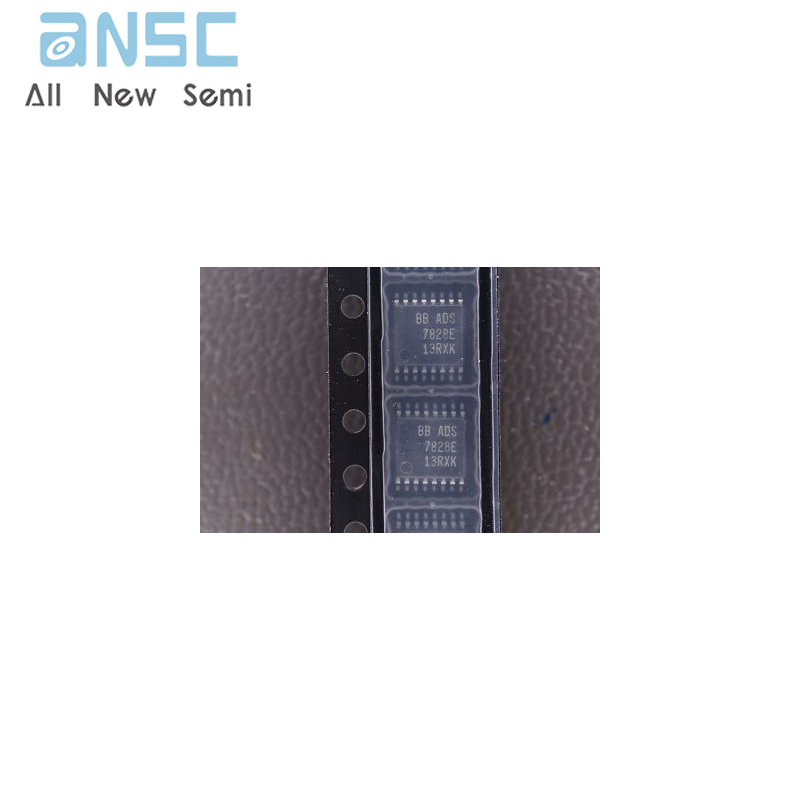

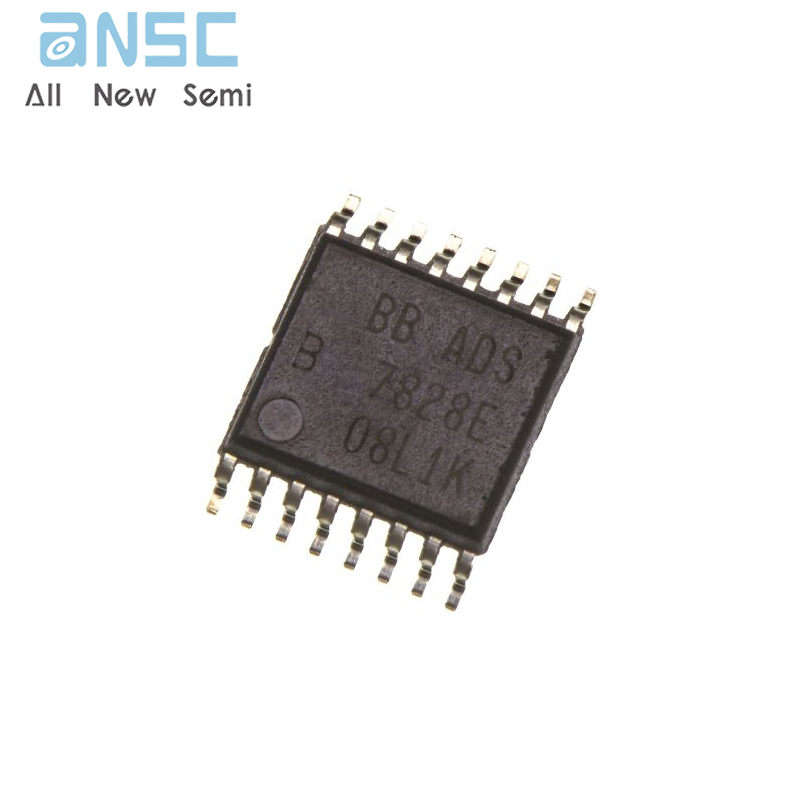

Product Photos
For more product information, please download the PDF
