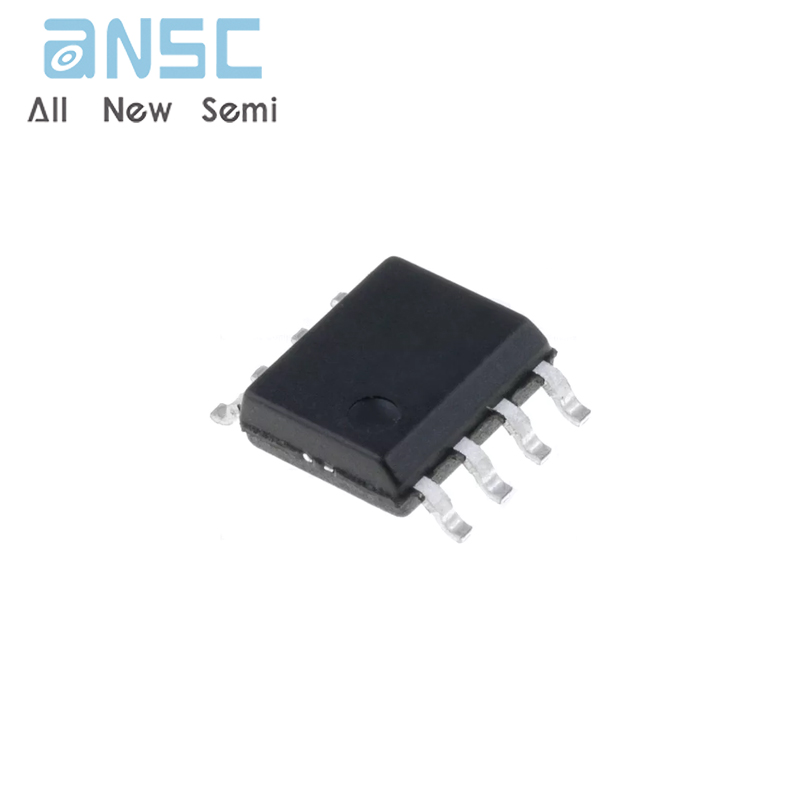

Hot-selling and scarce 25AA1024T-I/SM 1 Mbit SPI Bus Serial EEPROM SOP8 spot stock

Manufacturer Product Number

25AA1024T-I/SM

Description

25AA1024T-I/SM 1 Mbit SPI Bus Serial EEPROM SOP8 spot stock

Package Condition

TaPe & Reel

Datasheet

25AA1024T-I/SM

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Features

• 20 MHz max. Clock Speed

• Byte and Page-level Write Operations:

- 256 byte page

- 6 ms max. write cycle time

- No page or sector erase required

• Low-Power CMOS Technology:

- Max. Write current: 5 mA at 5.5V, 20 MHz

- Read current: 7 mA at 5.5V, 20 MHz

- Standby current: 1μA at 2.5V

(Deep power-down)

• Electronic Signature for Device ID

• Self-Timed Erase and Write Cycles:

- Page Erase (6 ms max.)

- Sector Erase (10 ms max.)

- Chip Erase (10 ms max.)

• Sector Write Protection (32K byte/sector):

- Protect none, 1/4, 1/2 or all of array

• Built-In Write Protection:

- Power-on/off data protection circuitry

- Write enable latch

- Write-protect pin

• High Reliability:

- Endurance: 1M erase/write cycles

• Temperature Ranges Supported:

- Industrial (I): -40°C to +85°C

- Automotive (E): -40°C to +125°C

• Pb-free packages available

Product Specification

Attribute	Attribute value
ANSM-Part#	ANSM-25AA1024T-I/SM
Category	Integrated Circuits (ICs)
	Memory
	Memory
Mfr	-
Packaging	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel®
Part Status	Active
DigiKey Programmable	Verified
Memory Type	Non-Volatile
Memory Format	EEPROM
Technology	EEPROM
Memory Size	1Mbit
Memory Organization	128K x 8
Memory Interface	SPI
Clock Frequency	20 MHz
Write Cycle Time - Word, Page	6ms
Voltage - Supply	1.8V ~ 5.5V
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.209", 5.30mm Width)
Supplier Device Package	8-SOIJ
Base Product Number	25AA1024
