Hot-selling and scarce MX97102UC ISDN S/T CONTROLLER TQFP-64 spot stock

Product Descriptions

MX97102 implements the 4-wire S/T interface used to link voice/data terminals to an ISDN. It is designed for the user site of the ISDN-basic access, two 64kbit/s B channels and a 16kbit/s D channel.

MX97102 can be mainly divided into three portions according to their interfaces. Except these three interface functions, it also provides the LAPD controller which handles the HDLC packets of the ISDN D-channel for the associated microprocessor.

The first, S/T interface controller, provides all electrical and logical functions of the S/T interface, such as S/T transceiver, activation/deactivation, timing recovery,multiframe S and Q channels, and D-channel access and priority control for communicating with remote equipments.

The Second is the microprocessor interface controller which offers the registers compatible with Siemens PSB2186, provides three types of microprocessor interface, such as Motorola bus mode, Intel multiplexed mode and Intel non-multiplexed mode.

​

The last portion is the GCI interface controller which is used to connect different voice/data application modules for local digital data exchangements.

Product Features

• Pin-to-Pin and Register-to-Register compatible with Siemens 2186

• Full duplex 2B+D ISDN S/T Transceiver according to CCITT I.430

• GCI digital interface

• 3 types of 8-bit CPU interface

• Receive timing recovery with adaptively switched thresholds

• E-channel Monitoring

• Programmable SDS1,SDS2

• D-channel access control

• LAPD(HDLC) support with FIFO(2x64) buffers

• Activation/Deactivation

• Multiframing with S and Q bit access

• CPU access to B and IC channels

• Watchdog timer

• Package types : P-LCC-44, P-LQFP-64

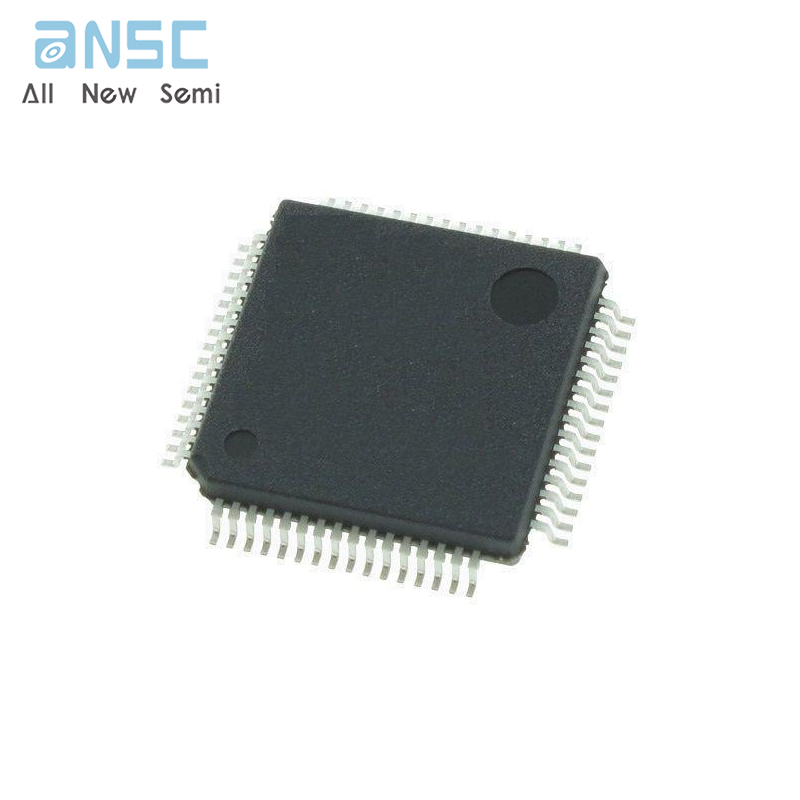

Product Photos

For more product information, please download the PDF
