Hot-selling and scarce AD9398KSTZ-150 HDMI™ Display Interface QFP100 spot stock

Product Descriptions

The AD9398 offers a high definition multimedia interface(HDMI) receiver integrated on a single chip. Also included is support for high bandwidth digital content protection (HDCP).

The AD9398 contains a HDMI 1.0-compatible receiver and supports all HDTV formats (up to 1080p) and display resolutions up to SXGA (1280 × 1024 @ 75 Hz). The receiver features an intrapair skew tolerance of up to one full clock cycle. With the inclusion of HDCP, displays can now receive encrypted video content. The AD9398 allows for authentication of a video receiver, decryption of encoded data at the receiver, and renewability of that authentication during transmission as specified by the HDCP 1.1 protocol.

Fabricated in an advanced CMOS process, the AD9398 is provided in a space-saving 100-lead, surface-mount, Pb-free, plastic LQFP and is specified over the 0°C to 70°C temperature range.

Product Features

HDMI interface

Supports high bandwidth digital content protection

RGB toYCbCr 2-way color conversion

1.8 V/3.3 V power supply

100-lead, Pb-free LQFP

RGB andYCbCr output formats

Digital video interface

HDMI 1.1, DVI 1.0

150 MHz HDMI receiver

Supports high bandwidth digital content protection

(HDCP 1.1)

Digital audio interface

HDMI 1.1-compatible audio interface

SPDIF (IEC90658-compatible) digital audio output

Multichannel I2S audio output (up to 8 channels)

Product Applications

Advanced TVs

HDTVs

Projectors

LCD monitors

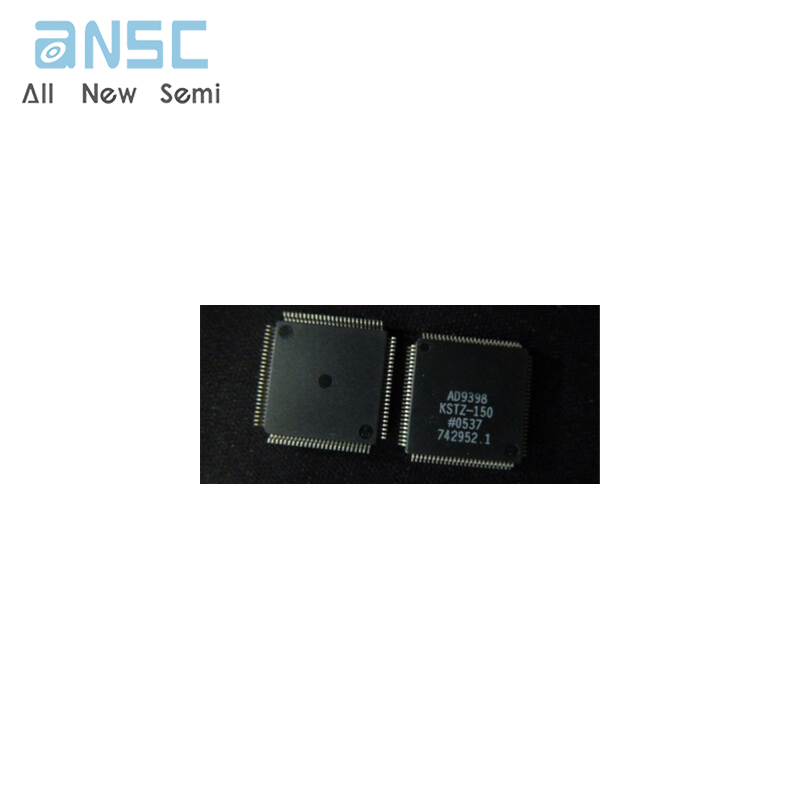

Product Photos

For more product information, please download the PDF
