Hot-selling and scarce TS5A23157RSER DUAL 10-Ω SPDT ANALOG SWITCH QFN spot stock
Manufacturer Product Number
TS5A23157RSER
Description
TS5A23157RSER DUAL 10-Ω SPDT ANALOG SWITCH QFN spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TS5A23157 is a dual single-pole double-throw (SPDT) analog switch designed to operate from 1.65 V to5.5 V . This device can handle both digital and analog signals . Signals up to 5.5 V (peak) can be transmitted ineither direction .
Product Features
• Specified Break-Before-Make Switching
• Low ON-State Resistance (10 Ω)
• Control Inputs Are 5-V Tolerant
• Low Charge Injection
• Excellent ON-Resistance Matching
• Low Total Harmonic Distortion
• 1.8-V to 5.5-V Single-Supply Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22
– 2000-V Human-Body Model (A114-B, Class II)
– 1000-V Charged-Device Model (C101)
Product Applications
• Sample-and-Hold Circuits
• Battery-Powered Equipment
• Audio and Video Signal Routing
• Communication Circuits
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TS5A23157RSER |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 5.7ns, 3.8ns |
| -3db Bandwidth | 220MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 5.5pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -66dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UQFN (2.0x1.5) |
| Base Product Number | TS5A23157 |

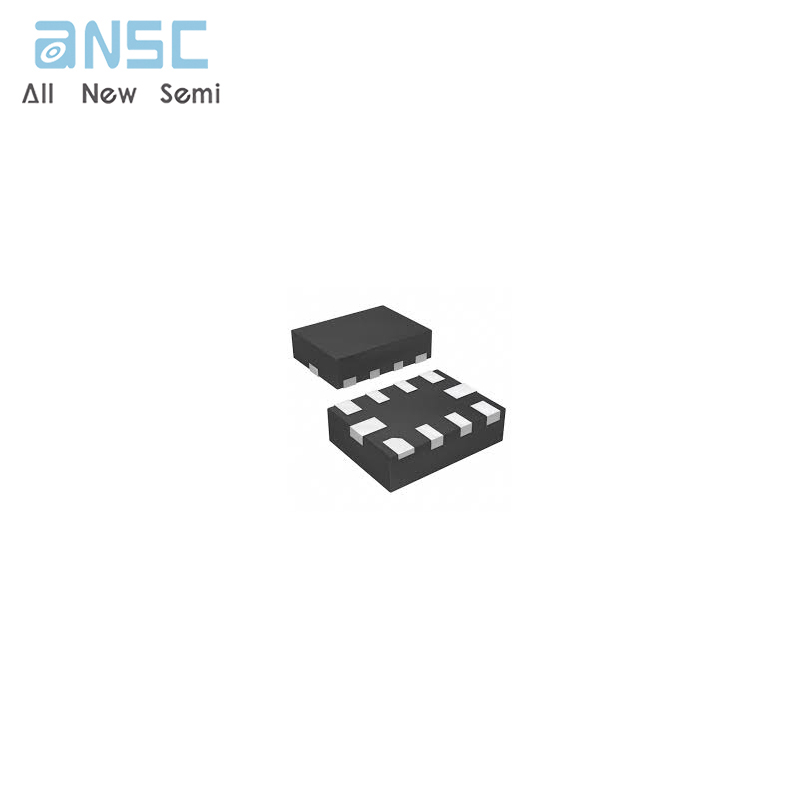

Product Photos
For more product information, please download the PDF
Other Products In The same category:
TS5A23157RSER DUAL 10-Ω SPDT ANALOG SWITCH QFN spot stock
10In stock:
Can ship immediately
