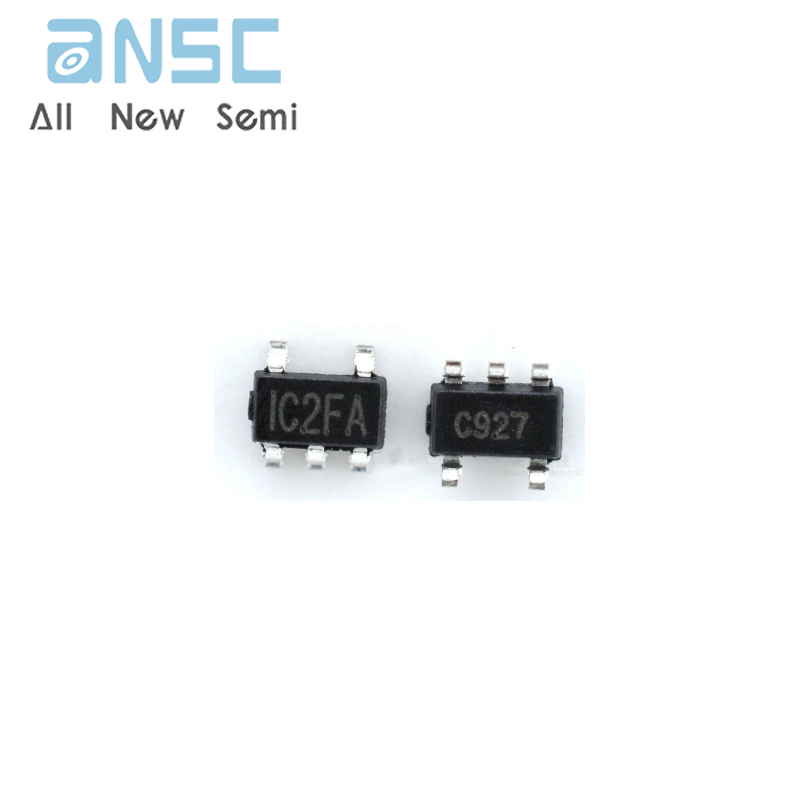

Hot-selling and scarce MP2603EJ-LF-P Single-Cell 150mA Linear Li-Ion Battery Charger SOT23
Manufacturer Product Number
MP2603EJ-LF-P
Description
MP2603EJ-LF-P Single-Cell 150mA Linear Li-Ion Battery Charger SOT23
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MP2603 is a low cost single cell Li-ion battery charger IC suitable for low charge current applications. It features constant current (CC) and constant voltage (CV) charging modes with programmable charge current (50mA–150mA), trickle charge and charge status indication.
The MP2603 is enabled with an input supply voltage greater than 3.5V. The charger IC is disabled when unplugged from the AC adaptor. To minimize the charger’s total solution cost, the MP2603 does not need an external reverse blocking diode, a precision current-sense resistor or a compensation capacitor at the output. MP2603 is available in a 5-pin TSOT23 package.
Product Features
• VIN Surge Up to 25V
• 0.75 percent VBATT Accuracy
• Low Battery Reverse Current, (< 1uA)
• Programmable Charge Current
• Over Temperature Protection
• Over Current Protection
• Charge Status Indication
• Over Charge Protection
• No External Sense Resistor Required
• No External Reverse Blocking Diode Required
• No Output Capacitor Required for Stability
Product Applications
• Bluetooth Headset
• MP3 Players
• Mini PDAs
• Cell Phones
• Digital Cameras
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP2603EJ-LF-P |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Battery Chargers | |
| Manufacturer | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Current, Over Temperature |
| Charge Current - Max | 150mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.25V |
| Interface | - |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | MP2603 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
MP2603EJ-LF-P Single-Cell 150mA Linear Li-Ion Battery Charger SOT23
30817In stock:
Can ship immediately
