Hot-selling and scarce MP2360DG-LF-Z 1.8A, 24V, 1.4MHz Step-Down Converter QFN
Manufacturer Product Number
MP2360DG-LF-Z
Description
MP2360DG-LF-Z 1.8A, 24V, 1.4MHz Step-Down Converter QFN
Package Condition
TRAY
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
The MP2360 is a monolithic step-down switch mode converter with a built-in internal power MOSFET. It achieves 1.8A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown.
The MP2360 requires a minimum number of readily available standard external components. The MP2360 is available in a 2mm x 2mm QFN8 package.
Product Features
• 2.5A Peak Output Current
• 1.8A Continuous Output Current
• 0.3Ω Internal Power MOSFET Switch
• Stable with Low ESR Output Ceramic Capacitors
• 0.1µA Shutdown Mode
• Fixed 1.4MHz Frequency
• Thermal Shutdown
• Cycle-by-Cycle Over Current Protection
• Wide 4.5V to 24V Operating Input Range
• Output Adjustable from 0.81V to 15V
• Available in 2x2 QFN8 Packages
Product Applications
• Broadband Communications Equipment
• Digital Entertainment Systems
• Distributed Power Systems
• Battery Charger
• Pre-Regulator for Linear Regulators
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP2360DG-LF-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Min/Fixed) | 0.81V |
| Voltage - Output (Max) | 15V |
| Current - Output | 1.8A |
| Frequency - Switching | 1.4MHz |
| Synchronous Rectifier | NO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TFDFN Exposed Pad |
| Supplier Device Package | 8-QFN (2x2) |
| Base Product Number | MP2360 |

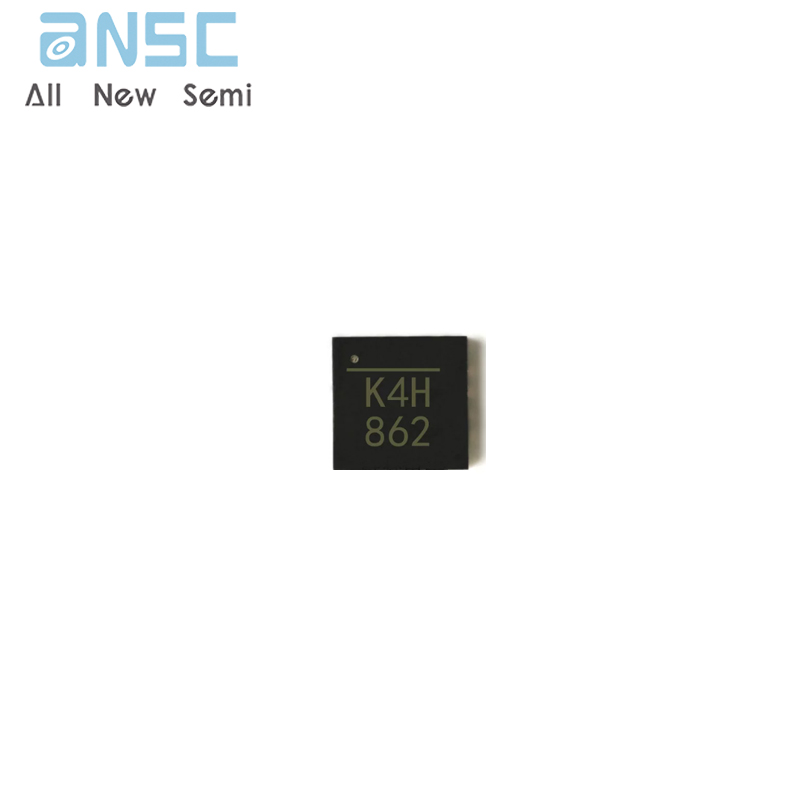

Product Photos
