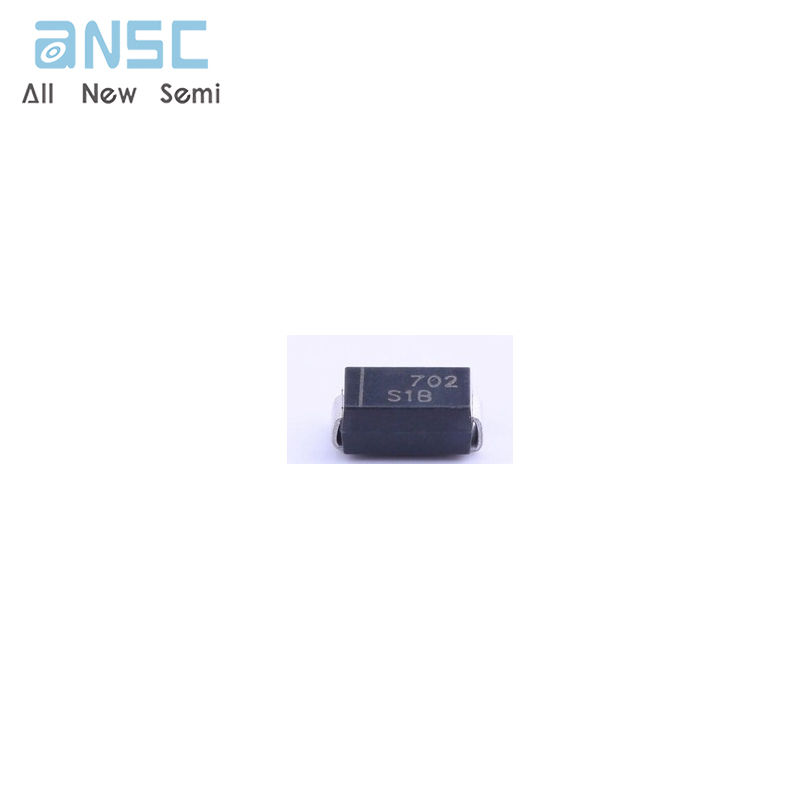

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce S1B-13-F Surface Mount Rectifier DO-214A spot stock
Manufacturer Product Number
S1B-13-F
Description
S1B-13-F Surface Mount Rectifier DO-214A spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Optimized for Lan Protection Applications
• Low Profile Package With Built-In Strain Relief For Surface Mounted Applications
• Low Incremental Surge Resistance, Excellent Clamping Capability
• 400W Peak Pulse Power Capability With A 10/1,000Μs Wave Form, Repetition Rate (Duty Cycle) : 0.01 percent (300W Above 78V)
• Very Fast Response Time
• High Temperature Soldering Guaranteed : 260°C/10 seconds at Terminals
Product Data
• Case : JEDEC SMA molded plastic over passivated chip
• Terminals : Solder plated, solderable per MIL-STD-750, method 2026
• Polarity : Colour band denotes cathode end
• Weight : 0.002oz, 0.064g
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-S1B-13-F |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 3 µs |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
| Capacitance @ Vr, F | 10pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Base Product Number | S1B |
Product Photos
For more product information, please download the PDF
