Hot-selling and scarce USB82512AMR-A-V01 Automotive Grade USB 2.0 Hi-Speed 2-Port Hub QFN spot stock

Product Key Benefits

• Full power management with individual or ganged power control of each downstream port

• Integrated 1.8 V core regulator

• Fully integrated USB termination and pull-up/pull down resistors

• On-board 24 MHz crystal driver,resonator,or external 24 MHz clock input

• Customizable vendor ID,product ID,and device ID

• Easily configurable as a 2-Port Hub in common PCB layout

• 36-pin (6x6 mm2 )QFN,RoHS compliant package

- Also available as dimple package

• Temperature range:-40ºC to +85ºC

Product Features

• High performance,low-power,small footprint hub controller IC with 2 downstream ports

• Fully compliant with the USB 2.0 specification

• Enhanced OEM configuration options available through either a single serial I 2 C EEPROM or SMBus Slave Port

• MultiTRAK™Technology

- High-performance multiple Transaction

Translator which provides one Transaction

Translator per port

• PortMap

- Flexible port mapping and port disable sequencing

• PortSwap

- Programmable USB differential-pair pin locations ease PCB design by aligning USB signal traces directly to connectors

• PHYBoost

- Programmable USB transceiver drive strength for recovering signal integrity due to compromised system environment

•AEC-Q100 compliant

- Microchip’s parts are tested to meet or exceed the requirements of the AEC-Q100 automotive qualification standards

Product Applications

•Automotive head unit

•Automotive breakout box

•Automotive media player dock

• Portable device charging via USB

• Rear seat infotainment access

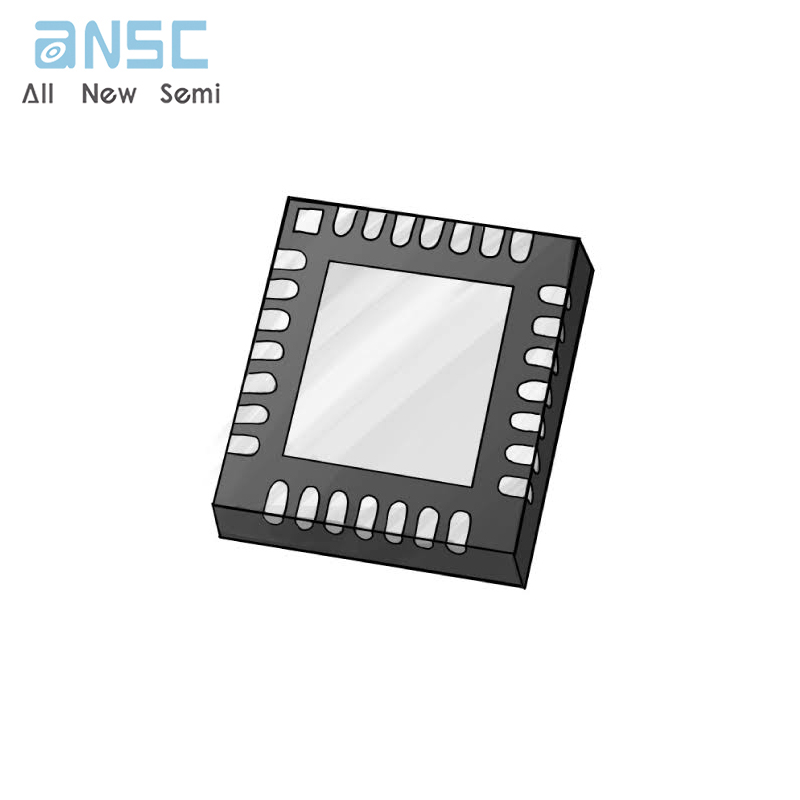

Product Photos

For more product information, please download the PDF
