Hot-selling and scarce G65SC816P-2 CMOS 8/16-BIT MICROPROCESSOR FAMILY DIP40 spot stock

Product Descriptions

The G65SC816 is an advanced CMOS 16-bit microprocessor featuring total software compatibility with 8-bit NMOS and CMOS 6500 series microprocessors. The G65SC816 provides 24 address lines for 16 Mbyte addressing, while providing both 8-bit and 16-bit operation.

This microprocessor contains an Emulation (E) mode for emulating 8-bit NMOS and CMOS 6500 Series microprocessors. A software switch determines whether the processor is in the 8-bit emulation mode or in the native 16-bit mode. This allows existing 8-bit system designs to use the many powerful features of the G65SC816.

Product Features

Advanced CMOS design for low power consumption and increased noise immunity

Emulation mode for total software compatibility with 6502 designs

Full 16-bit ALU, Accumulator, Stack Pointer, and Index Registers

Direct register for zero page addressing

24 addressing modes (including 13 original 6502 modes)

Wait for Interrupt (WAI) and Stop the Clock (STP) instructions for reduced power consumption and decreased interrupt latency

91 instructions with 255 opcodes

Co-Processor (COP) instruction and associated vector

Powerful Block Move instructions

Full 16-bit operation with 24 address lines for the 16 MByte memory

Program selectable 8-bit mode for 6502 coding compatibility Valid Program Address (VPA) and Valid Data Address (VDA) outputs for dual cache and DMA cycle steal implementation

Vector Pull (VP) output indicates when interrupt vectors are being fetched. May be used for vectoring/prioritizing interrupts

Abort interrupt and associated vector for interrupting any instruction without modifying internal registers

Memory Lock (ML) for multiprocessor system implementation

40-pin DIP, 44-pin PLCC

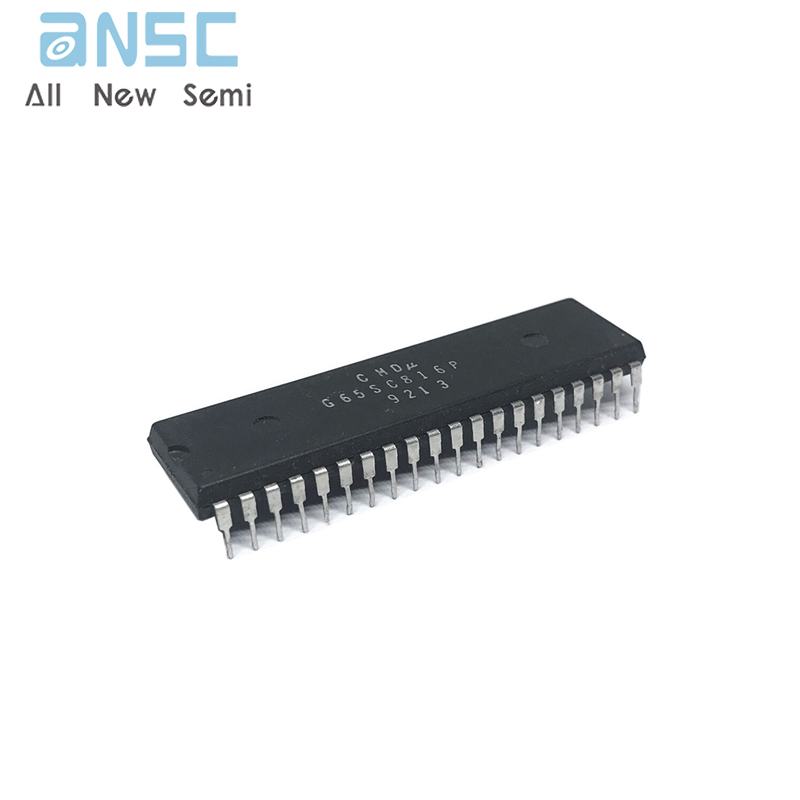

Product Photos

For more product information, please download the PDF
