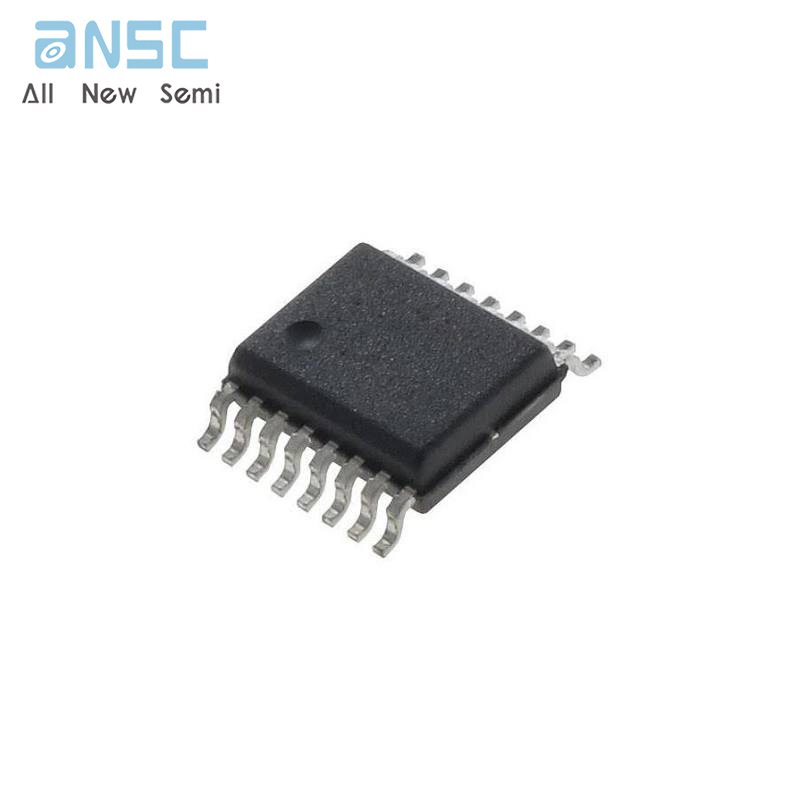

MAX7317AEE+ 10-Port SPI-Interfaced I/O Expander with Overvoltage and Hot-Insertion Protection SSOP16 spot stock

Product Descriptions

The MAX7317 serial-interfaced peripheral provides  microprocessors with 10 I/O ports rated to 7V. Each port  can be individually configured as either an open-drain  output, or an overvoltage-protected Schmitt input.

The MAX7317 supports hot insertion. All port pins remain  high impedance in power-down (V+ = 0V) with up to 8V  asserted on them.

The MAX7317 is available in 16-pin TQFN and QSOP  packages and operates in the -40°C to +125°C range.

For a similar part with constant-current outputs and  8-bit PWM controls, refer to the MAX6966/MAX6967 data  sheet.

Product Features

● Industry-Standard 4-Wire Interface Simplifies I/O Ports Expansion Independent of Microprocessor Architecture

• High-Speed, 26MHz, SPI-/QSPI™-/MICROWIRE®-Compatible Serial Interface

• 2.25V to 3.6V Operation

● Protection Circuitry Ensures Robust Operation

• I/O Port Inputs Are Overvoltage Protected to 7V

• I/O Port Outputs Are 7V-Rated Open Drain

• I/O Ports Support Hot Insertion

● Low Power Consumption and Small Package Reduce Board Size and Power-Supply Requirements

• 0.7μA (typ), 1.9μA (max) Standby Current

• 3mm x 3mm, 0.8mm High TQFN Package

Product Applications

● Portable Equipment

● Cellular Phones

● White Goods

● Industrial Controllers

● System Monitoring

Product Specification

Product Photos

For more product information, please download the PDF
