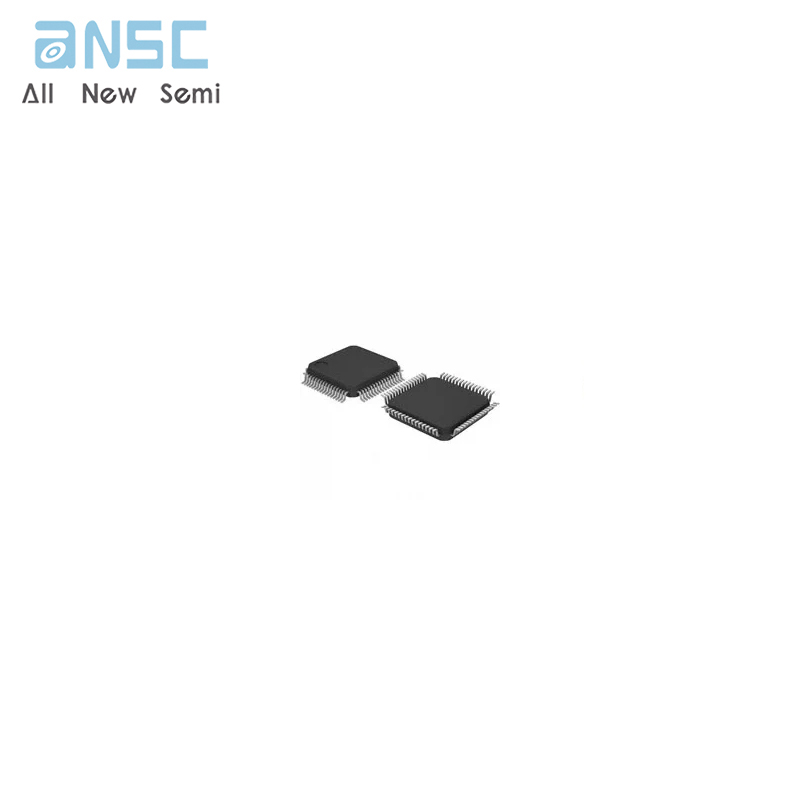

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce ADV7311KST Multiformat 216 MHz Video Encoder LQFP-64 spot stock
Manufacturer Product Number
ADV7311KST
Description
ADV7311KST Multiformat 216 MHz Video Encoder LQFP-64 spot stock
Package Condition
TRAY
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ADV®7310/ADV7311 is a high speed, digital-to-analogencoder on a single monolithic chip . It includes six high speedNSV video D/A converters with TTL compatible inputs .
The ADV7310/ADV7311 has separate 8-/10-/16-/20-bit inputports that accept data in high definition and/or standard definitionvideo format . For all standards, external horizontal, vertical,and blanking signals or EAV/SAV timing codes control theinsertion of appropriate synchronization signals into the digital data stream and therefore the output signal .
Product Features
Simultaneous SD and HD Inputs and Outputs
Oversampling up to 216 MHz
Programmable DAC Gain Control
Sync Outputs in All Modes
On-Board Voltage Reference
Six 12-Bit NSV Precision Video DACs
2-Wire Serial I2C® Interface
Dual I/O Supply 2.5 V/3.3 V Operation
Analog and Digital Supply 2.5 V
On-Board PLL
64-Lead LQFP Package
Lead (Pb) Free Product
Product Applications
High End DVD
High End PS DVD Recorders/Players
SD/Prog Scan/HDTV Display Devices
SD/HDTV Set Top Boxes
Professional Video Systems
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADV7311KST |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Encoders, Decoders, Converters | |
| Manufacturer | - |
| Packaging | Tray |
| Part Status | Obsolete |
| Type | Video Encoder |
| Applications | DVD, SD/HD |
| Voltage - Supply, Analog | 2.5V |
| Voltage - Supply, Digital | 2.5V |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (14x14) |
| Base Product Number | ADV7311 |
Product Photos
For more product information, please download the PDF
