Hot-selling and scarce EP1K50FC484-3 Field Programmable Gate Array IC 484-BBGA spot stock

Product Features

■ Contains 4-, 8-, and 16-Mbit flash memories for configuration data storage

■ On-chip decompression feature almost doubles the effective configuration density

■ Standard flash die and a controller die combined into single stacked chip package

■ External flash interface supports parallel programming of flash and external processor access to unused portions of memory

■ Flash memory block/sector protection capability via external flash interface

■ Supported in EPC16 and EPC4 devices

■ Page mode support for remote and local reconfiguration with up to eight configurations for the entire system

■ Compatible with Stratix series Remote System Configuration feature

■ Supports byte-wide configuration mode fast passive parallel (FPP); 8-bit data output per DCLK cycle

■ Supports true n-bit concurrent configuration (n = 1, 2, 4, and 8) of Altera FPGAs

■ Pin-selectable 2-ms or 100-ms power-on reset (POR) time

■ Configuration clock supports programmable input source and frequency synthesis

■ Multiple configuration clock sources supported (internal oscillator and external clock input pin)

■ External clock source with frequencies up to 100 MHz

■ Internal oscillator defaults to 10 MHz; Programmable for higher frequencies of 33, 50, and 66 MHz

■ Clock synthesis supported via user programmable divide counter

■ Available in the 100-pin plastic quad flat pack (PQFP) and the 88-pin Ultra FineLine BGA® (UFBGA) packages

■ Vertical migration between all devices supported in the 100-pin PQFP package

■ Supply voltage of 3.3 V (core and I/O)

■ Hardware compliant with IEEE Std. 1532 in-system programmability (ISP) specification

​

Product Specification

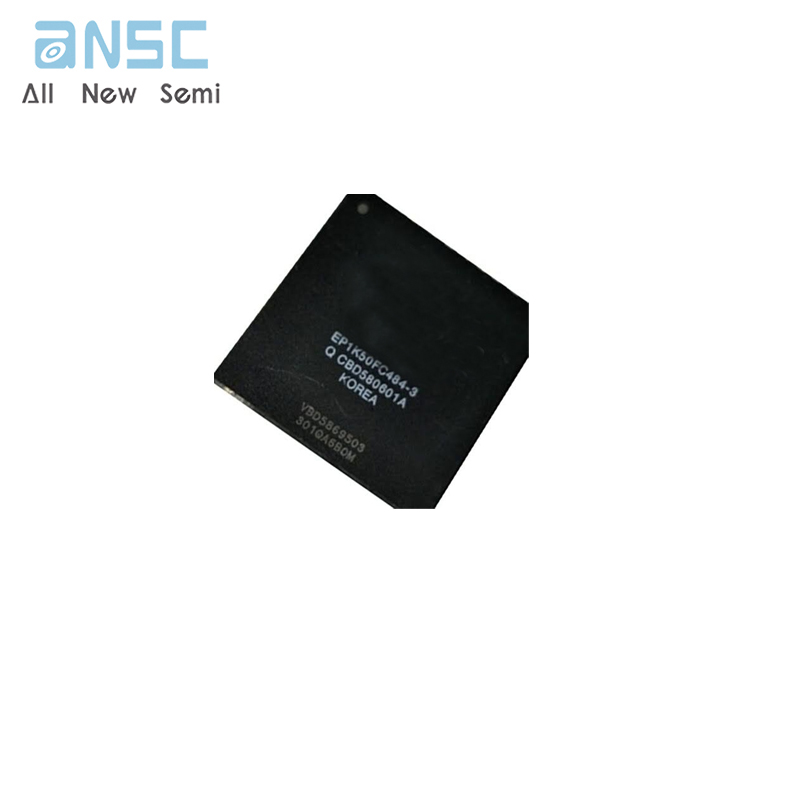

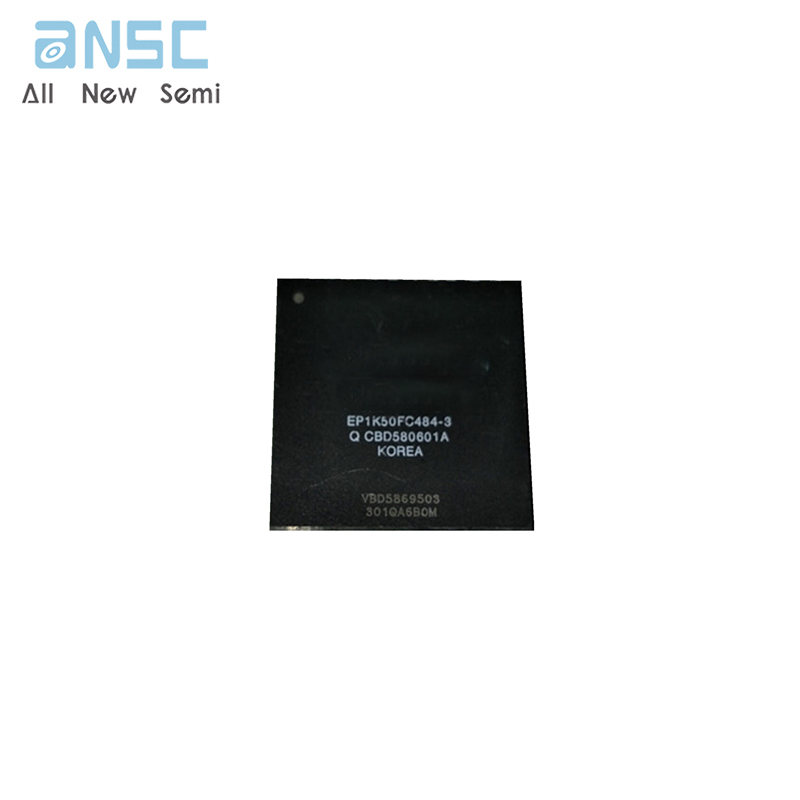

Product Photos

For more product information, please download the PDF
