Hot-selling and scarce ADV7303AKST Multiformat SD, Progressive Scan/HDTV Video Encoder LQFP64 spot stock

Product Descriptions

The ADV7302A/ADV7303A is a high speed, digital-to-analogencoder on a single monolithic chip . It includes six high speedvideo D/A converters with TTL compatible inputs .

The ADV7302A/ADV7303A has three separate 8-bit wide inputports that accept data in high definition and/or standard definition video format . For all standards, external horizontal, vertical,and blanking signals, or EAV/SAV timing codes, control theinsertion of appropriate synchronization signals into the digitaldata stream and therefore the output signals .

Product Features

Simultaneous SD and HD Inputs and Outputs

Oversampling (108 MHz/148.5 MHz)

On-Board Voltage Reference

6 Precision Video 11-Bit DACs

2-Wire Serial MPU Interface

Dual I/O Supply 2.5 V/3.3 V Operation

Analog and Digital Supply 2.5 V

On-Board PLL

64-LQFP Package

Lead-Free Product

Product Applications

DVD Players

SD/HD Display Devices

SD/HD Set-Top Boxes

SD/HDTV Studio Equipment

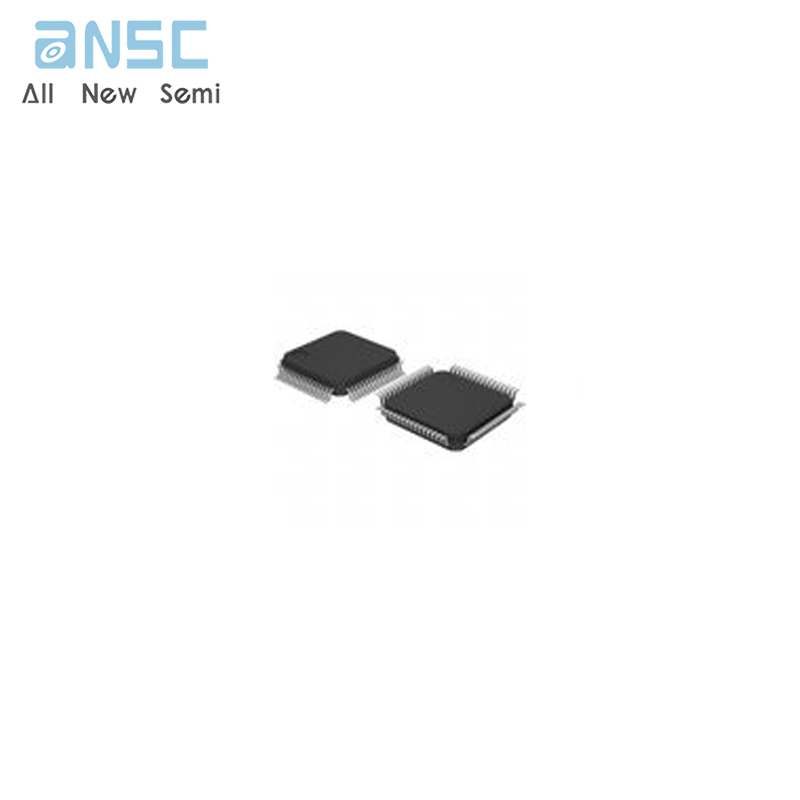

Product Photos

For more product information, please download the PDF
