Hot-selling and scarce WSL2512R0100FEA Power Metal Strip® Resistors, Low Value SMD spot stock
Manufacturer Product Number
WSL2512R0100FEA
Description
WSL2512R0100FEA Power Metal Strip® Resistors, Low Value SMD spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Ideal for all types of current sensing, voltage division and pulse applications including switching and linear power supplies, instruments, power amplifiers
• Proprietary processing technique produces extremely low resistance values (down to 0.001 Ω)
• All welded construction
• Solid metal Nickel-Chrome or Manganese-Copper alloy resistive element with low TCR (< 20 ppm/°C)
• Solderable terminations
• Very low inductance 0.5 nH to 5 nH
• Excellent frequency response to 50 MHz
• Low thermal EMF (< 3 µV/°C)
• Lead (Pb)-free version is RoHS compliant
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-WSL2512R0100FEA |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr | - |
| Series | WSL |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Resistance | 10 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 1W |
| Composition | Metal Element |
| Features | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±75ppm/°C |
| Operating Temperature | -65°C ~ 170°C |
| Package / Case | 2512 (6332 Metric) |
| Supplier Device Package | 2512 |
| Size / Dimension | 0.250" L x 0.125" W (6.35mm x 3.18mm) |
| Height - Seated (Max) | 0.035" (0.89mm) |
| Number of Terminations | 2 |

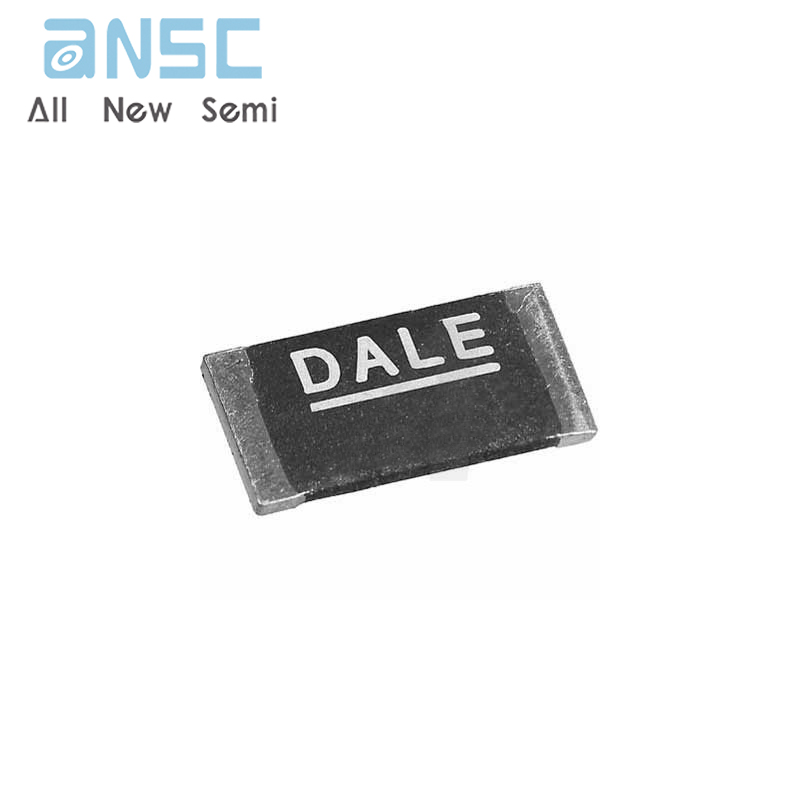

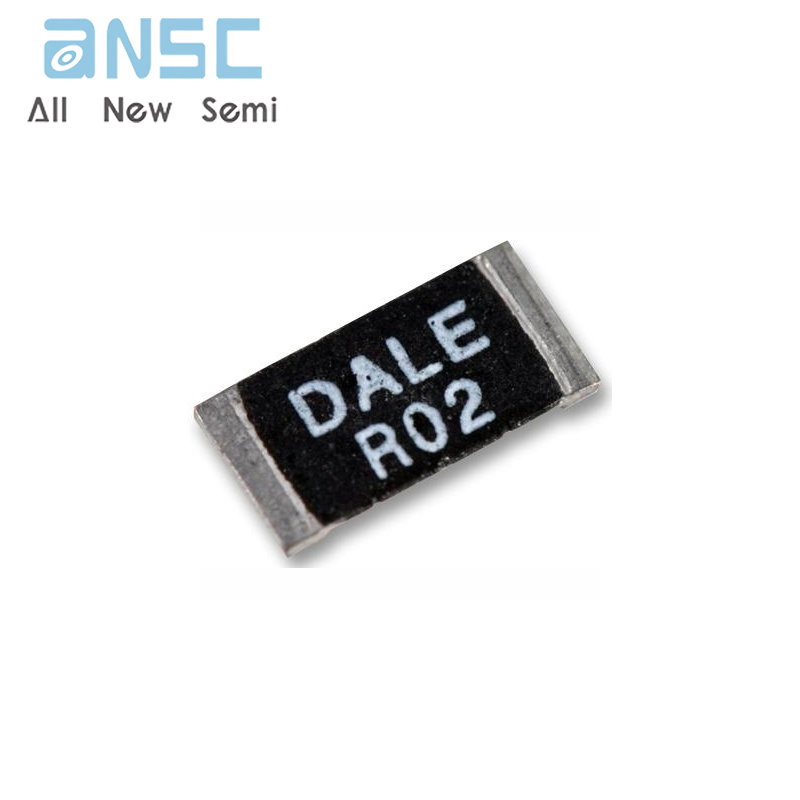

Product Photos
、
For more product information, please download the PDF
