Spot sales of MAX874CSA 10μA, Low-Dropout,Precision Voltage References IC SOP-8

Product Descriptions

The MAX872/MAX874 precision 2.5V and 4.096V micropower voltage references consume a maximum of only 10µA and operate from supply voltages up to 20V. The combination of ultra-low quiescent current and low 200mV dropout makes them ideal for battery-powered equipment. They source and sink up to 500µA with only 200mV input voltage headroom, which makes the 2.5V MAX872 ideal for use with a 3V supply and the 4.096V MAX874 ideal for use with a 5V supply.

Initial accuracy of 0.2 percent at +25°C (±5mV for the MAX872, ±8mV for the MAX874) and low 40ppm/°C max drift make these references suitable for a wide range of precision applications.

Product Features

♦ Output Voltage

2.500V ±0.2 percent (MAX872)

4.096V ±0.2 percent (MAX874)

♦ Wide Operating Voltage Range

2.7V to 20V (MAX872)

4.3V to 20V (MAX874)

♦ 10µA Max Supply Current

♦ 40ppm/°C Max Drift Over Extended Temp. Range

♦ Line Regulation Over Temp.

20µV/V (MAX872)

75µV/V (MAX874)

♦ Load Regulation Over Temp.

0.6mV/mA Max (MAX872)

1.0mV/mA Max (MAX874)

♦ ±500µA Sink/Source Current

Product Applications

Hand-Held Instruments

Battery-Operated Equipment

Power Supplies

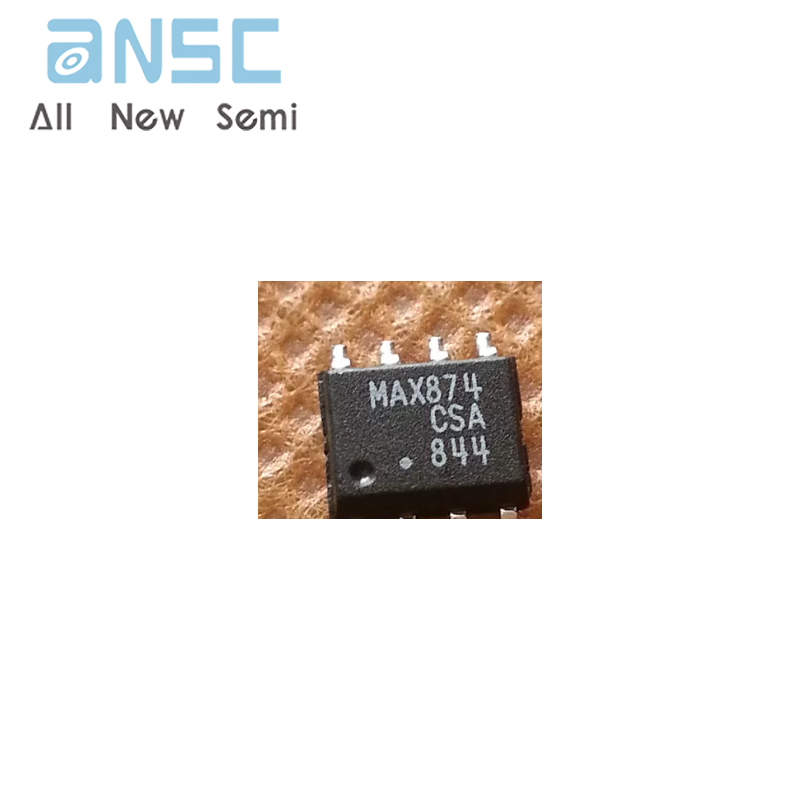

Product Photos

​

For more product information, please download the PDF
