Hot-selling and scarce AD9889BBSTZ-80 High Performance HDMI/DVI Transmitter LQFP80 spot stock

Product Descriptions

The AD9889B is a 165 MHz, high definition multimedia interface (HDMI) v. 1.2a transmitter. It supports HDTV formats upto 1080p, and computer graphic resolutions up to UXGA (1600 ×1200 @ 60 Hz). With the inclusion of HDCP,the AD9889B allowsthe secure transmission of protected content as specified by theHDCP v. 1.1 protocol .

The AD9889B supports both S/PDIF and 8-channel I²S audio.Its high fidelity, 8-channel I²S can transmit either stereo or 7.1surround audio at 192 kHz . The S/PDIF can carry stereo LPCMaudio or compressed audio, including DTS®, THX®, and Dolby®Digital .

The AD9889B helps reduce system design complexity and costby incorporating such features as an internal MPU for HDCPoperations, an I²C master for EDID reading,a single 1.8 V powersupply, and 5 V tolerance on the I²C and hot plug detect pins .

Fabricated in an advanced CMOS process, the AD9889B isavailable in a space-saving, 76-ball CSP_BGA or 64-lead LFCSPsurface-mount package, and an 80-lead LQFP surface-mountpackage. All packages are available as Pb-free and are specifiedfrom −25°C to +85°C .

Product Features

General

HDMI™/DVI transmitter compatible with HDMI v. 1.3,

DVI v. 1.0, and HDCP v. 1.1

Single 1.8 V power supply

Video/audio inputs accept logic levels from 1.8 V to 3.3 V

80-lead LQFP, Pb-free package

64-lead LFCSP, Pb-free package

76-ball CSP_BGA, Pb-free package

Digital video

165 MHz operation supports all resolutions from 480i to

1080p and UXGA at 60 Hz

Programmable two-way color space converter

Supports RGB,YCbCr, and DDR

Supports ITU656-based embedded syncs

Automatic input video format timing detection (CEA-861B)

Digital audio

Supports standard S/PDIF for stereo LPCM or compressed audio up to 192 kHz

8-channel, uncompressed, LPCM I2S audio up to 192 kHz

Special features for easy system design

On-chip MPU with I2C® master to perform HDCP

operations and EDID reading operations

5 V tolerant I2C and HPD I/Os, no extra device needed

No audio master clock needed for supporting S/PDIF and I2S

On-chip MPU reports HDMI events through interrupts and registers

Product Applications

DVD players and recorders

Digital set-top boxes

A/V receivers

Digital cameras and camcorders

HDMI repeater/splitter

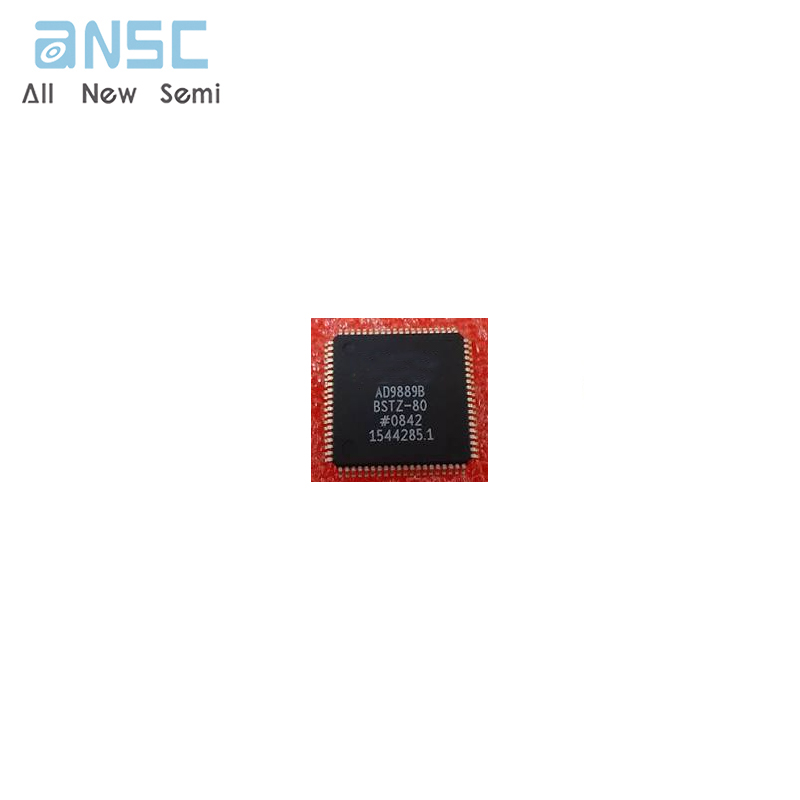

Product Photos

For more product information, please download the PDF
