Hot-selling and scarce TLP109 Photocoupler IC SOP5 spot stock
Manufacturer Product Number
TLP109
Description
TLP109 Photocoupler IC SOP5 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TLP109 mini-flat coupler is a small-outline coupler suitablefor surface-mount assembly.
The TLP109 consists of a high-output-power GaAℓAs light emitting diodeoptically coupled to a high-speed photodiode-transistor chip .
The TLP109 is housed in the 6-pin SO package and guarantees acreepage distance of ≥5.0 mm ,a clearance of ≥5.0 mm and an insulationthickness of ≥0.4 mm .Therefore,the TLP109 meets the reinforcedinsulation class requirements of international safety standards .
Product Features
• Isolation voltage:3750 Vrms (min)
• Switching speed:tpHL =0.8 μs, tpLH =0.8 μs (max) (@R L = 1.9 kΩ)
• TTL-compatible
• UL recognized :UL1577,File No .E67349
• c-UL recognized :CSA Component Acceptance Service No .5A,File No .E67349
• VDE under application :DIN EN60747-5-2

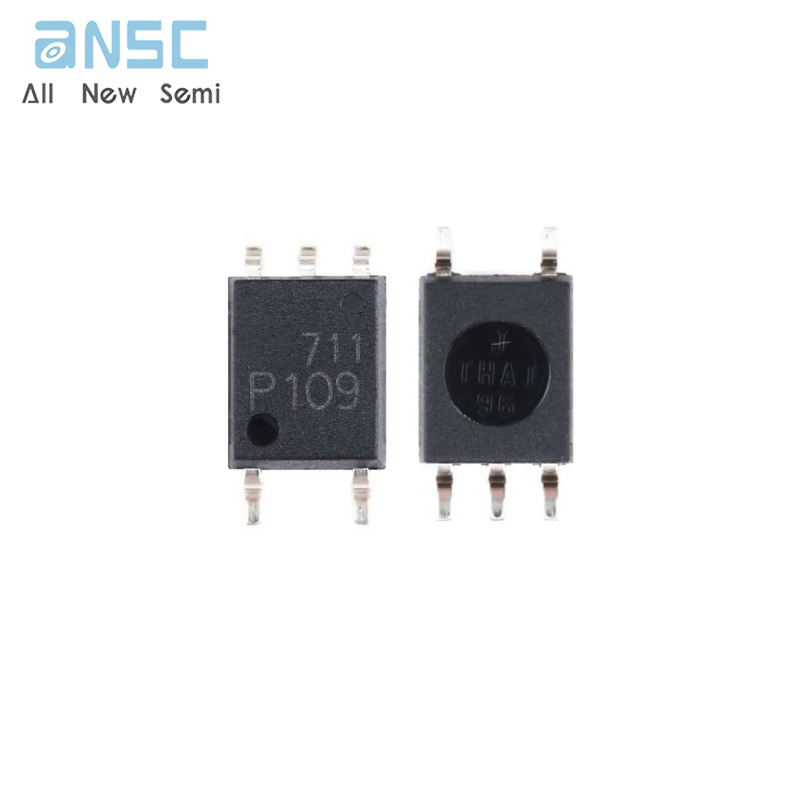

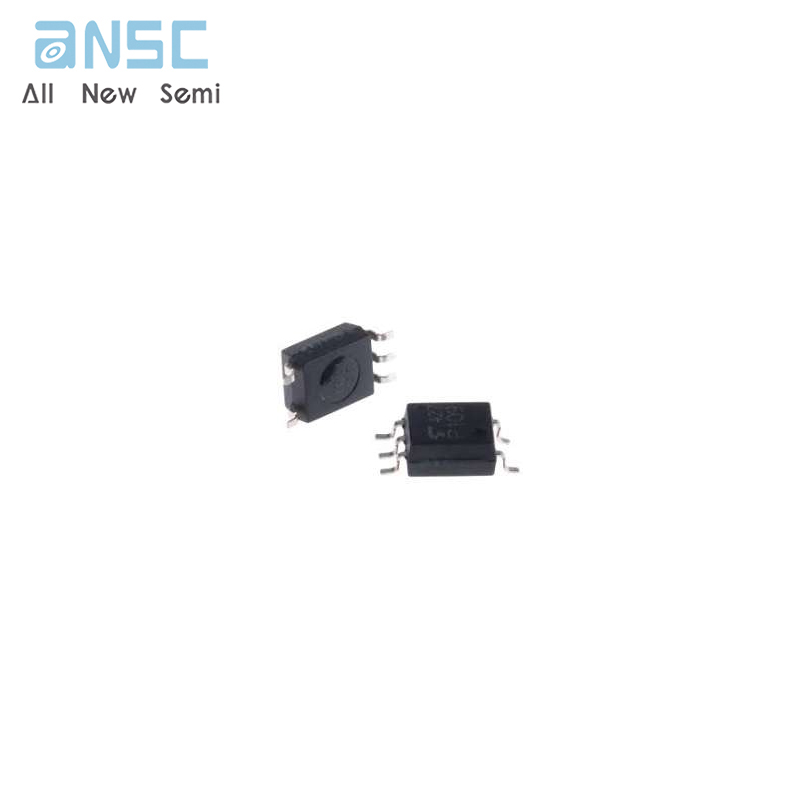

Product Photos
For more product information, please download the PDF
