Hot-selling and scarce LM360H High Speed Differential Comparator IC CAN8 spot stock

Product Descriptions

The LM160/LM360 is a very high speed differential input,complementary  TTL  output  voltage  comparator  with  improved characteristics over the µA760/µA760C, for which itis a pin-for-pin replacement . The device has been optimizedfor greater speed, input impedance and fan-out, and lowerinput offset voltage .Typically delay varies only 3 ns for overdrive variations of 5 mV to 400 mV.

Complementary outputs having minimum skew are provided .Applications involve high speed analog to digital convertorsand zero-crossing detectors in disk file systems .

Product Features

n  Guaranteed high speed:    20 ns max

n  Tight delay matching on both outputs

n  Complementary TTL outputs

n  High input impedance

n  Low speed variation with overdrive variation

n  Fan-out of 4

n  Low input offset voltage

n  Series 74 TTL compatible

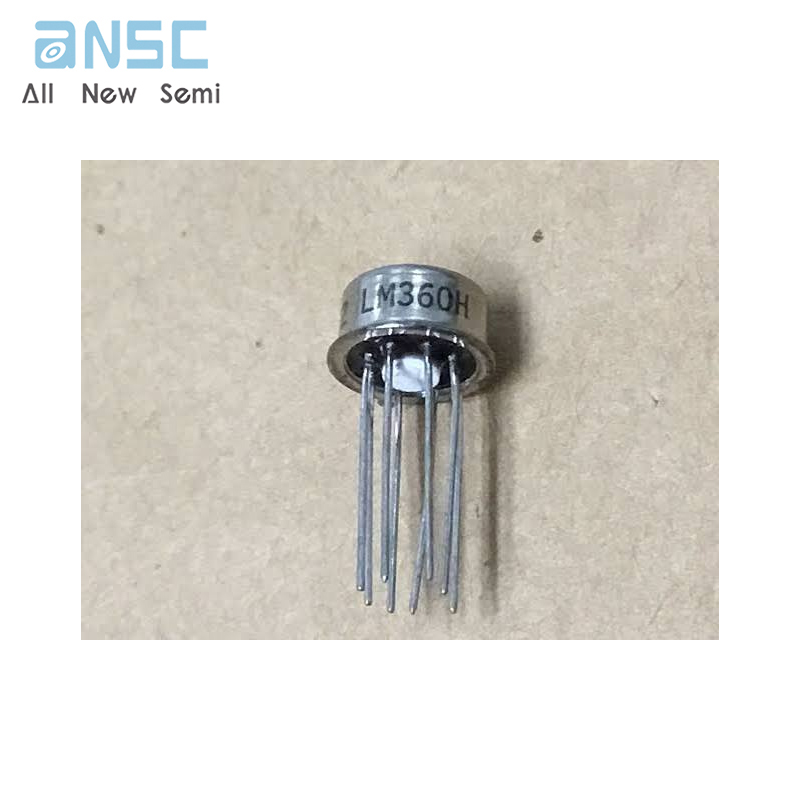

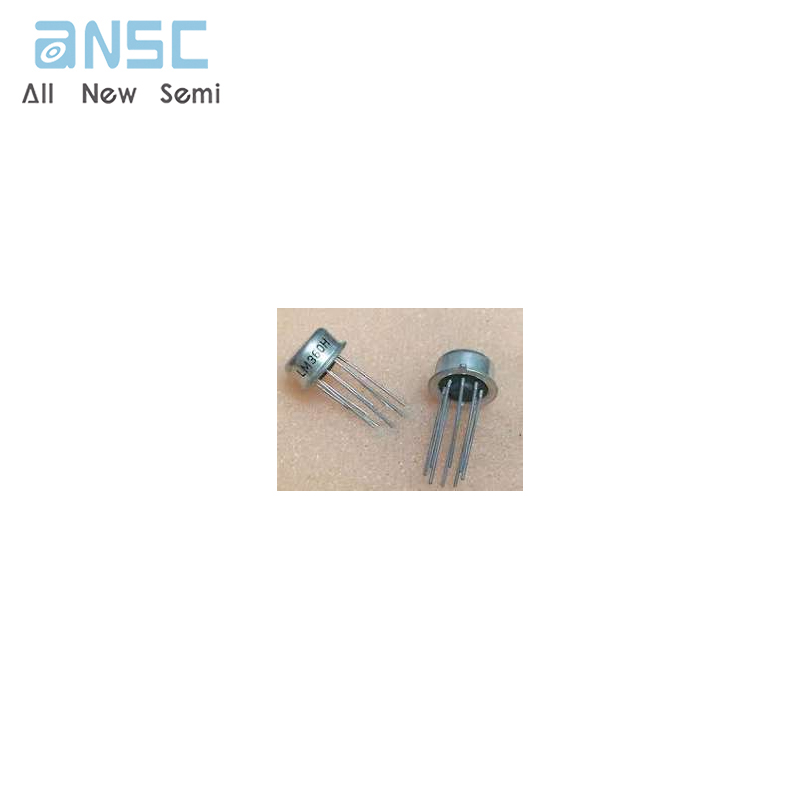

Product Photos

        For more product information, please download the PDF
