Hot-selling and scarce NBXHBA019LNHTAG 3.3 V, 125 MHz / 250 MHz LVPECL Clock Oscillator CLCC-6 spot stock

Product Descriptions

The single and dual frequency crystal oscillator (XO) is designed to meet today’s requirements for 3.3 V LVPECL clock generation applications. The device uses a high Q fundamental crystal and Phase Lock Loop (PLL) multiplier to provide selectable 125 MHz or 250 MHz, ultra low jitter and phase noise LVPECL differential output.

This device is a member of ON Semiconductor’s PureEdge clock family that provides accurate and precision clock solutions.

Available in 5 mm x 7 mm SMD (CLCC) package on 16 mm tape and reel in quantities of 1000.

Product Features

• LVPECL Differential Output

• Uses High Q Fundamental Mode Crystal and PLL Multiplier

• Ultra Low Jitter and Phase Noise − 0.4 ps (12 kHz − 20 MHz)

• Selectable Output Frequency − 125 MHz (default) / 250 MHz

• Hermetically Sealed Ceramic SMD Package

• RoHS Compliant

• Operating Range 3.3 V ±10%

• Total Frequency Stability −   50 PPM

• This is a Pb−Free Device

Product Applications

• Ethernet, Gigabit Ethernet

• Infiniband

• Base Stations

Product Specification

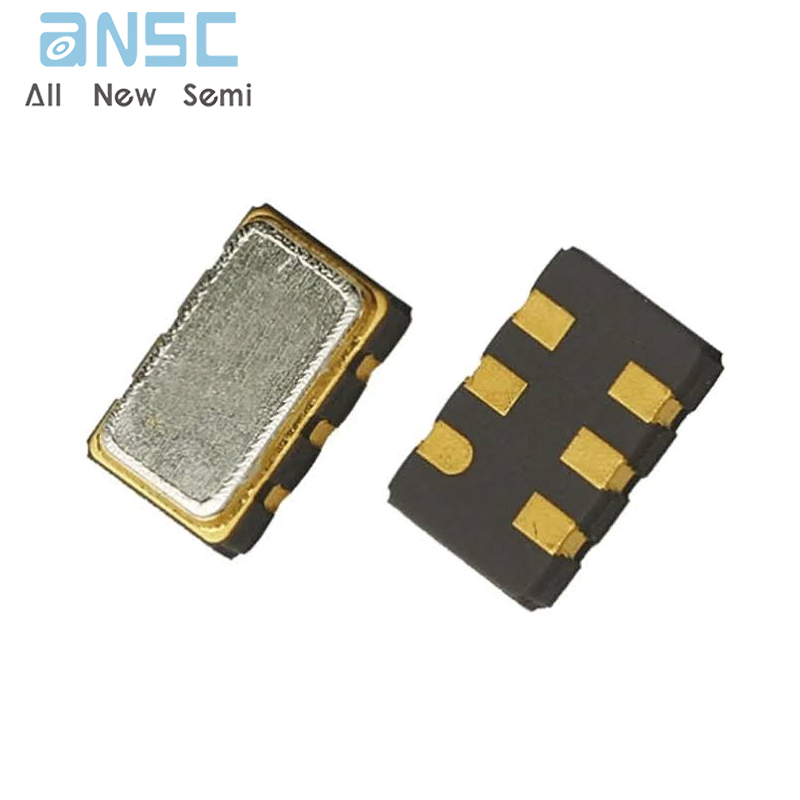

Product Photos

For more product information, please download the PDF
