Hot-selling and scarce ADUM1310BRWZ Triple-Channel Digital Isolator with Programmable Default Output SOP16 spot stock

Product Descriptions

The ADuM1310¹ is a unidirectional, triple-channel digitalisolator based on Analog Devices, Inc. iCoupler® technology.Combining high speed CMOS and monolithic coreless transformer technology,this isolation component provides outstandingperformance characteristics superior to alternatives such asoptocoupler devices .

By avoiding the use of LEDs and photodiodes, iCouplerdevices remove the design difficulties commonly associatedwith optocouplers . The typical concerns that arise with optocouplers, such as uncertain current transfer ratios, nonlineartransfer functions, and temperature and lifetime effects,areeliminated with the simple iCoupler digital interfaces and stableperformance characteristics . The need for external drivers andother discretes is eliminated with these iCoupler products .Furthermore, iCoupler devices run at one-tenth to one-sixththe power consumption of optocouplers at comparable signaldata rates.

The ADuM1310 isolator provides three independent isolationchannels at data rates up to 10 Mbps . It operates with the supplyvoltage of either side ranging from 2.7 V to 5.5 V, providingcompatibility with lower voltage systems as well as enabling avoltage translation functionality across the isolation barrier.

This product also has a default output control pin . This allowsthe user to define the logic state the outputs are to adopt in theabsence of the input VDD1 power.Unlike other optocoupleralternatives,the ADuM1310 has a patented refresh feature thatensures dc correctness in the absence of input logic transitionsand during power-up/power-down conditions .

Product Features

Pb-free, 16-lead, wide body SOIC package

Low power operation

5 V operation

1.0 mA per channel max @ 0 Mbps to 2 Mbps

3.5 mA per channel max @ 10 Mbps

3 V operation

0.7 mA per channel max @ 0 Mbps to 2 Mbps

2.1 mA per channel max @ 10 Mbps

3 V/5 V level translation

High temperature operation: 105°C

Up to 10 Mbps data rate (NRZ)

Programmable default output state

Safety and regulatory approvals

UL recognition: 2500 V rms for 1 minute per UL 1577

CSA Component Acceptance Notice #5A

VDE certificate of conformity

DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01

DIN EN 60950 (VDE 0805): 2001-12; EN 60950: 2000

VIORM = 560 V peak

Product Applications

General-purpose, unidirectional, multichannel isolation

Product Specification

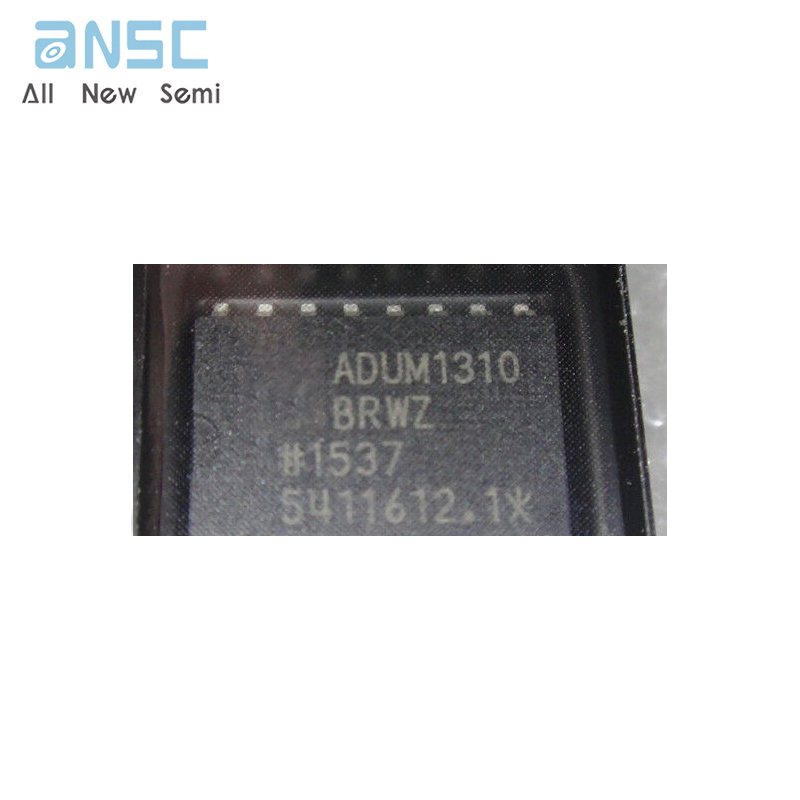

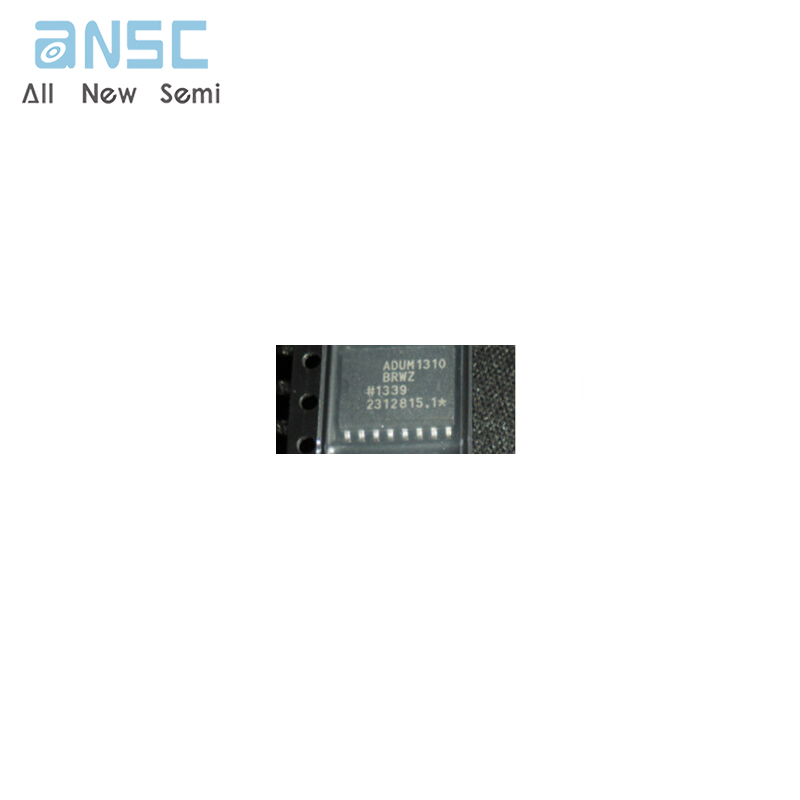

Product Photos

For more product information, please download the PDF
