Hot-selling and scarce VSC8574XKS-04 Telecom IC Ethernet 256-PBGA spot stock

Product Descriptions

The VSC8574-01 is a low-power, quad-port Gigabit Ethernet transceiver with four SerDes interfaces for  quad-port dual media capability. It also includes an integrated quad port two-wire serial multiplexer  (MUX) to control SFPs or PoE modules. It has a low electromagnetic interference (EMI) line driver, and  integrated line side termination resistors that conserve both power and printed circuit board (PCB) space.

The VSC8574-01 includes Microsemi’s IEEE 1588 timestamping solution with encapsulation support.  The device also includes dual recovered clock outputs to support Synchronous Ethernet applications.  Programmable clock squelch control is included to inhibit undesirable clocks from propagating and to  help prevent timing loops. The VSC8574-01 also supports a ring resiliency feature that allows a  1000BASE-T connected PHY port to switch between master and slave timing without having to interrupt  the 1000BASE-T link.

Product Features

​

• Low power consumption of approximately 425 mW per port in 1000BASE-T mode, 200 mW per port in 100BASE-TX mode, 225 mW per port in 10BASE-T mode, and less than 115 mW per port in 100BASE-FX and 1000BASE-X modes

• ActiPHY™ link down power savings

• PerfectReach™ smart cable reach algorithm

• IEEE 802.3az-2010 Energy Efficient Ethernet idle power savings

• Support for IEEE 1588-2008 timestamping with encapsulation support

• Recovered clock outputs with programmable clock squelch control and fast link failure indication (<1 ms; worst-case <3 ms) for G.8261 Synchronous Ethernet applications

• Ring resiliency for maintaining linkup integrity when switching between 1000BASE-T master and slave timing

• Supports IEEE 802.3bf timing and synchronization standard

• Integrated quad two-wire serial mux to control SFP and PoE modules

• Support for IEEE 802.3ah unidirectional transport for 100BASE-FX and 1000BASE-X fiber media

Product Specification

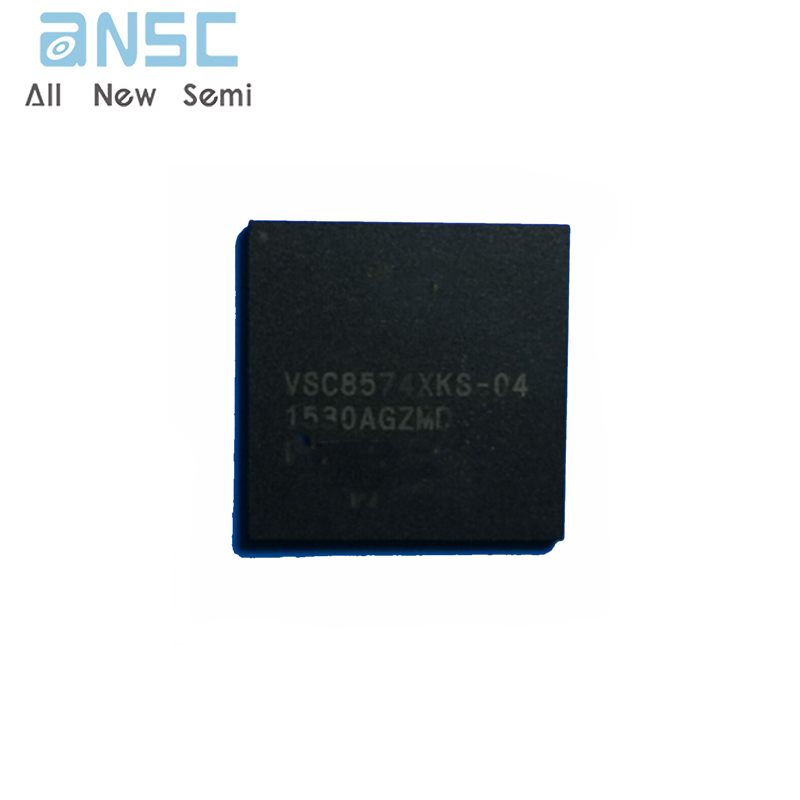

Product Photos

For more product information, please download the PDF
