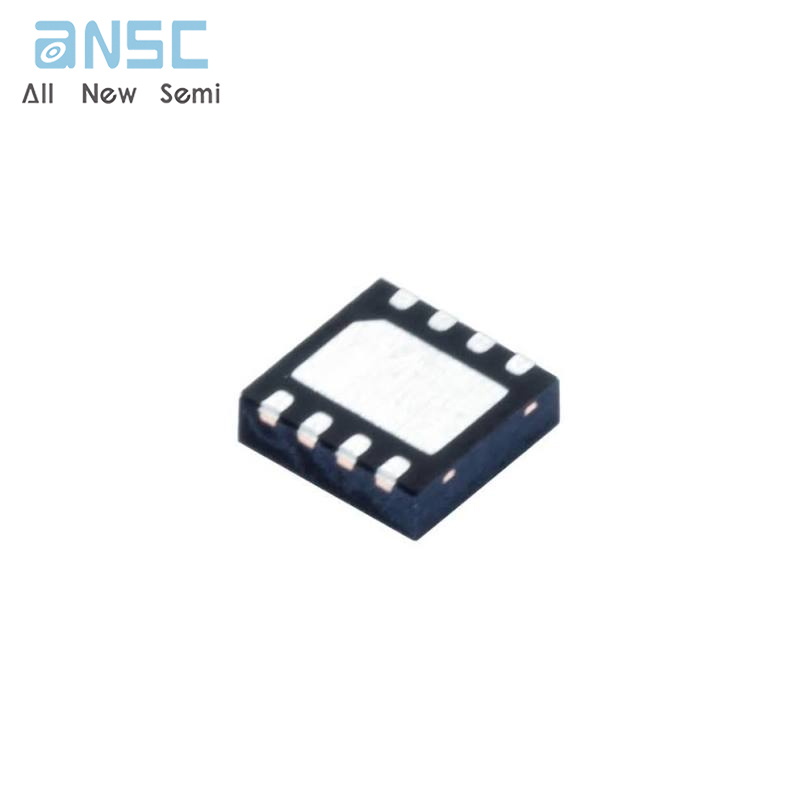

TPS73201DRBT Capacitor-Free, NMOS, 250mA, Low-Dropout Regulator With Reverse Current Protection QFN spot stock

Product Descriptions

The TPS732 low-dropout (LDO) voltage regulator  uses an NMOS pass transistor in a voltage-follower  configuration. This topology is stable using output  capacitors with low equivalent series resistance  (ESR), and even allows operation without a capacitor.  The device also provides high reverse blockage (low  reverse current) and ground pin current that is nearly  constant over all values of output current.

The TPS732 uses an advanced BiCMOS process  to yield high precision while delivering very low  dropout voltages and low ground pin current. Current  consumption, when not enabled, is less than 1μA and  designed for portable applications. The extremely low  output noise (30μVRMS with 0.1μF CNR) is designed  for powering VCOs. This device is protected by  thermal shutdown and foldback current limit.

Product Features

• Stable with no output capacitor or any value or type of capacitor

• Input voltage range: 1.7V to 5.5V

• Ultra-low dropout voltage: 40mV typical at 250mA

• Excellent load transient response—with or without optional output capacitor

• NMOS topology provides low reverse leakage current

• Low noise: 30μVRMS typical (from 10kHz to 100kHz)

• 0.5% initial accuracy

• 1% overall accuracy (line, load, and temperature)

• Less than 1μA maximum IQ in shutdown mode

• Thermal shutdown and specified minimum and maximum current limit protection

• Available in multiple output voltage versions:

– Fixed outputs from 1.2V to 5V

– Adjustable outputs from 1.2V to 5.5V

– Custom outputs available

Product Applications

• Portable and battery-powered equipment

• Post-regulation for switching supplies

• Noise-sensitive circuitry such as VCOs

• Point of load regulation for DSPs, FPGAs, ASICs, and microprocessors
